Subaru
>>
2013
>>
BRZ F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Radiator
Radiator

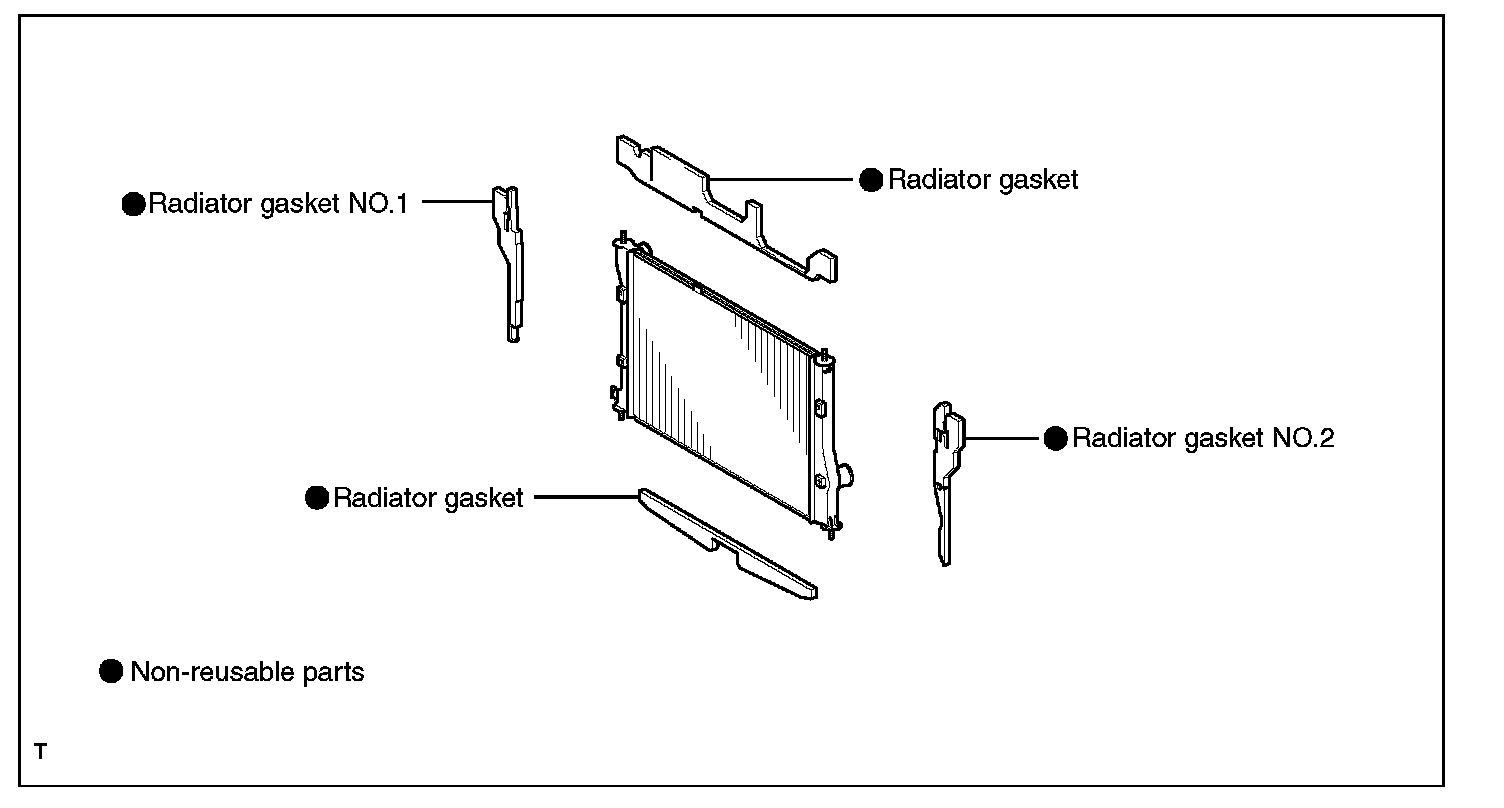

Radiator ASSY (FA20)

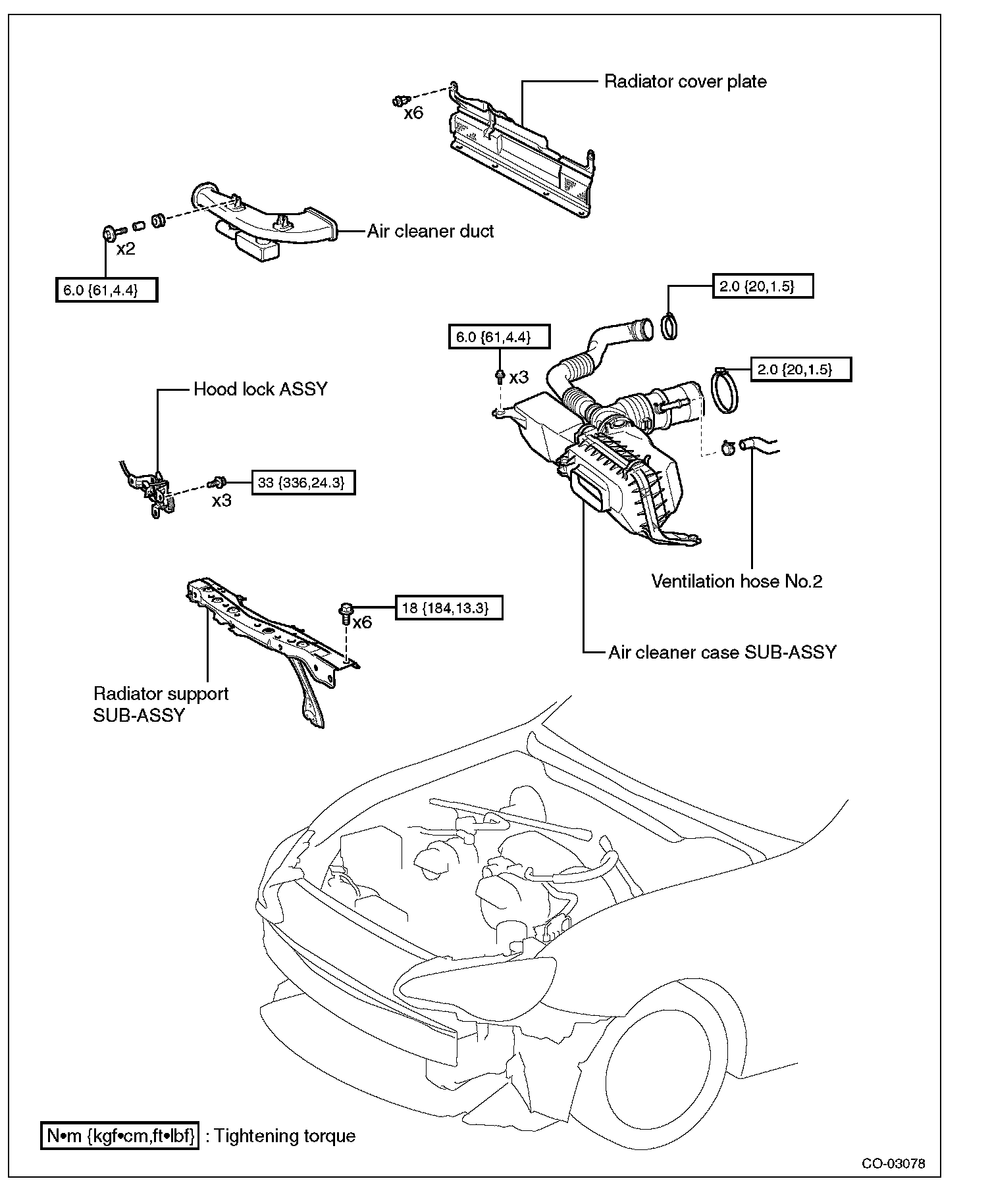

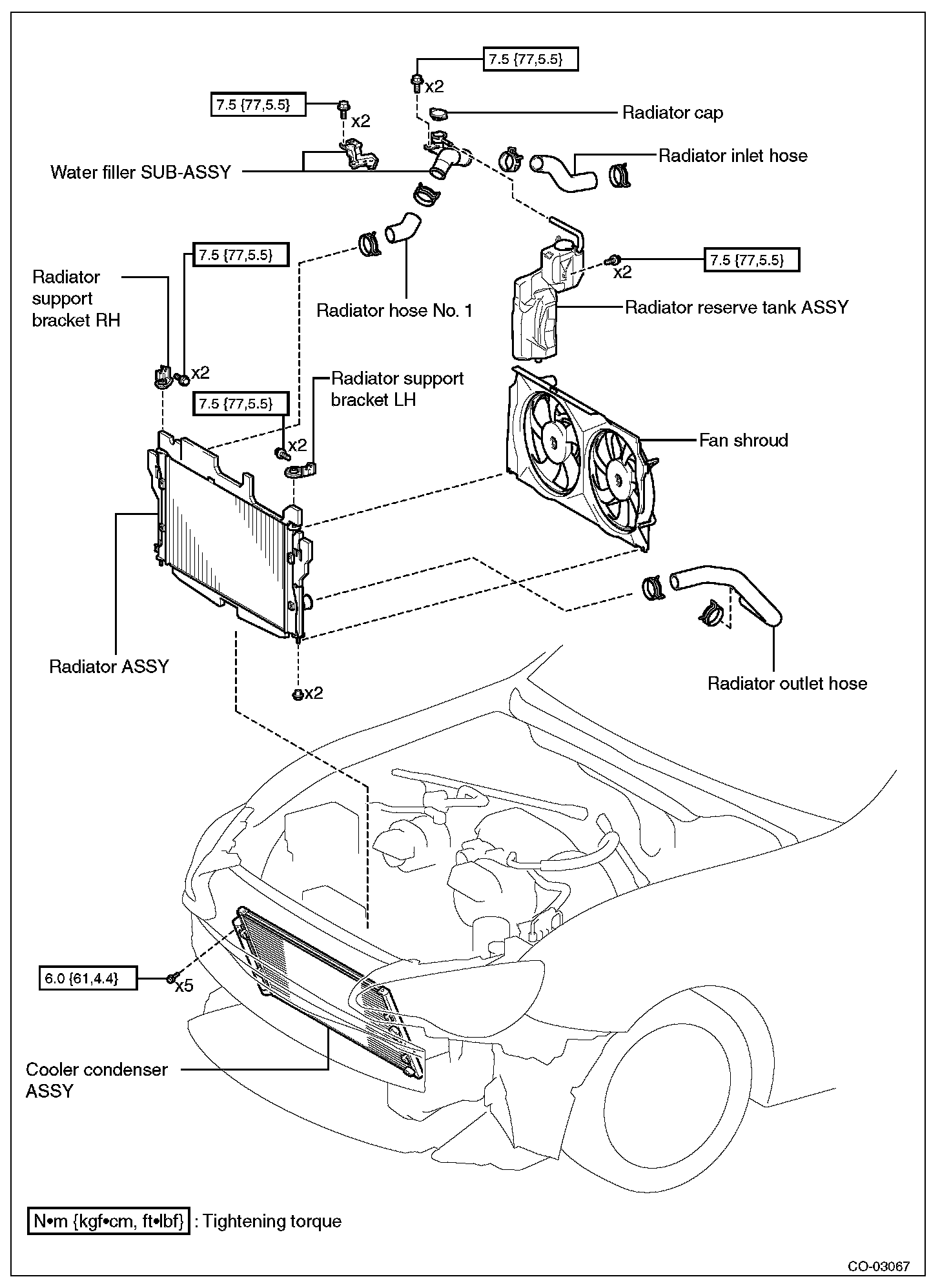

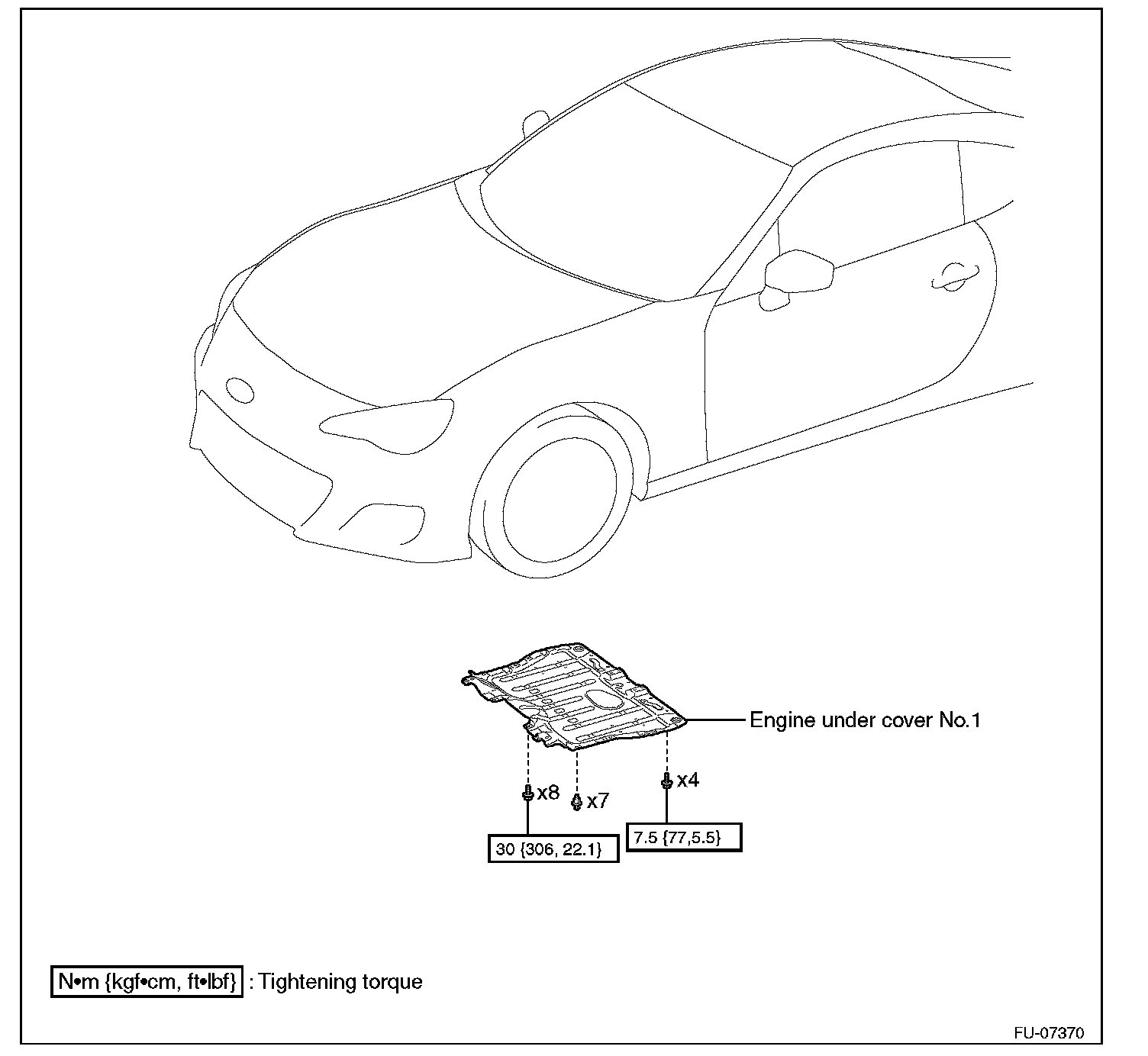

Exploded view
