BRZ F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Manual Transmission ASSY
Manual Transmission ASSY
Manual transmission ASSY

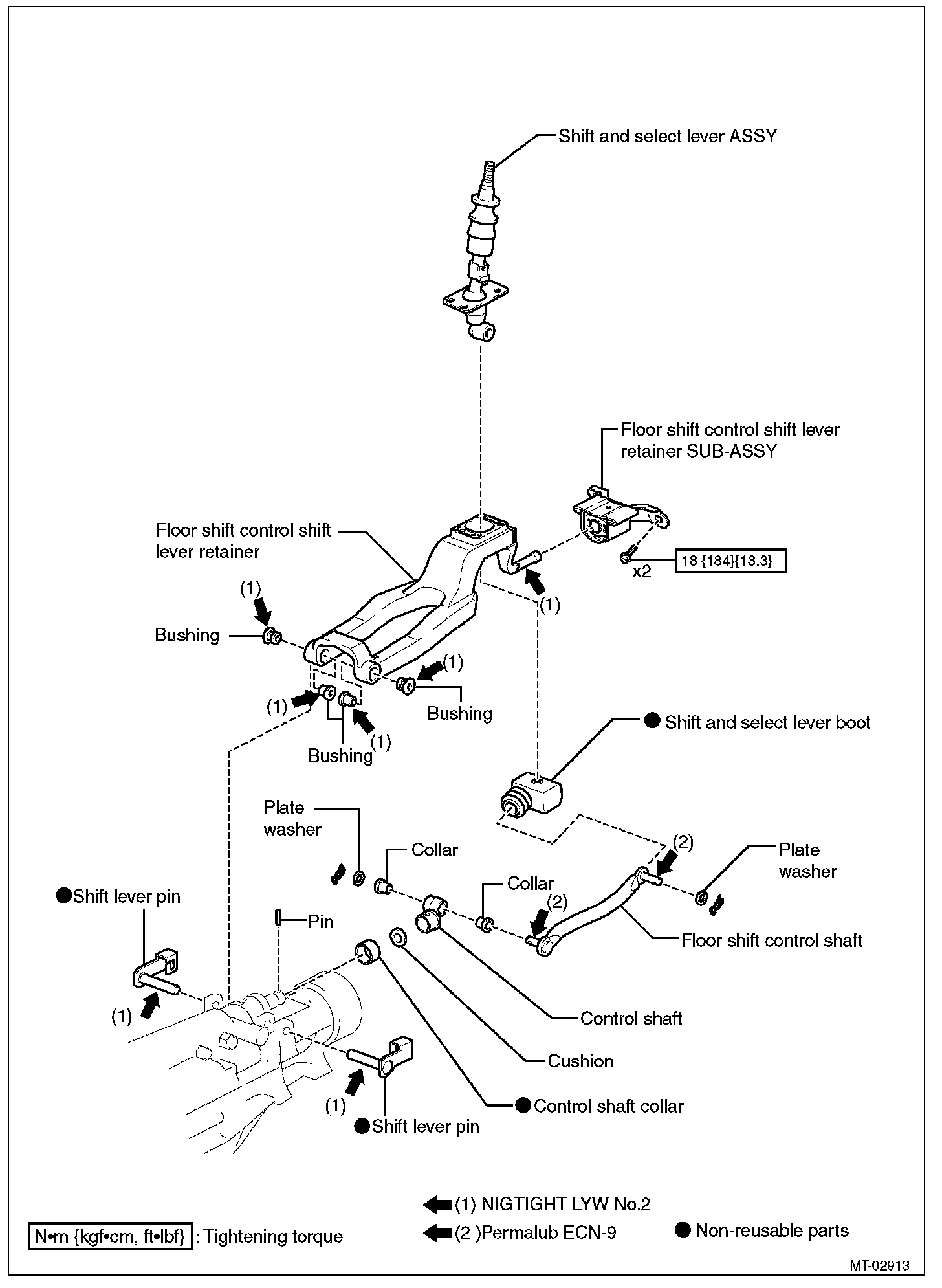

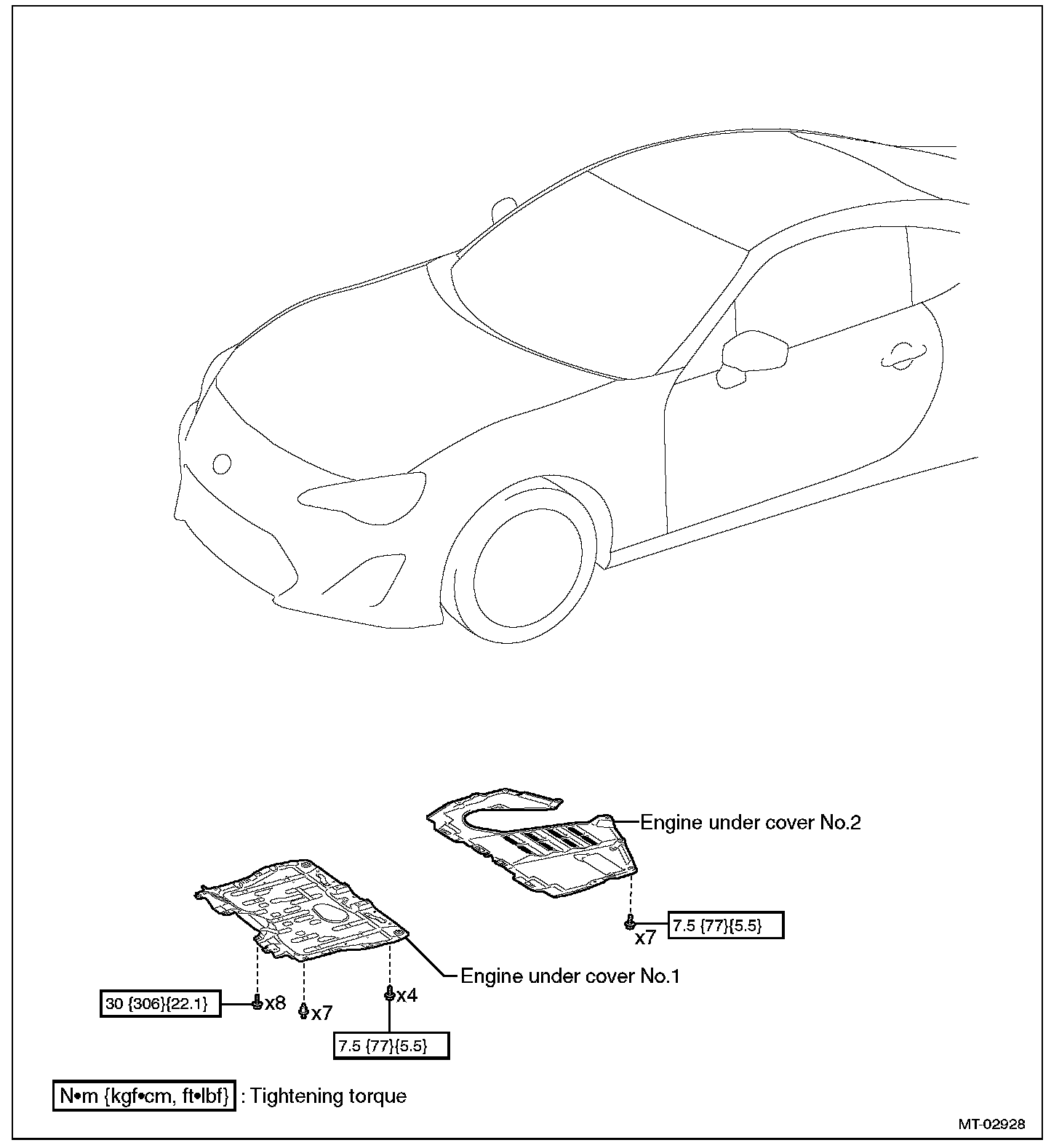

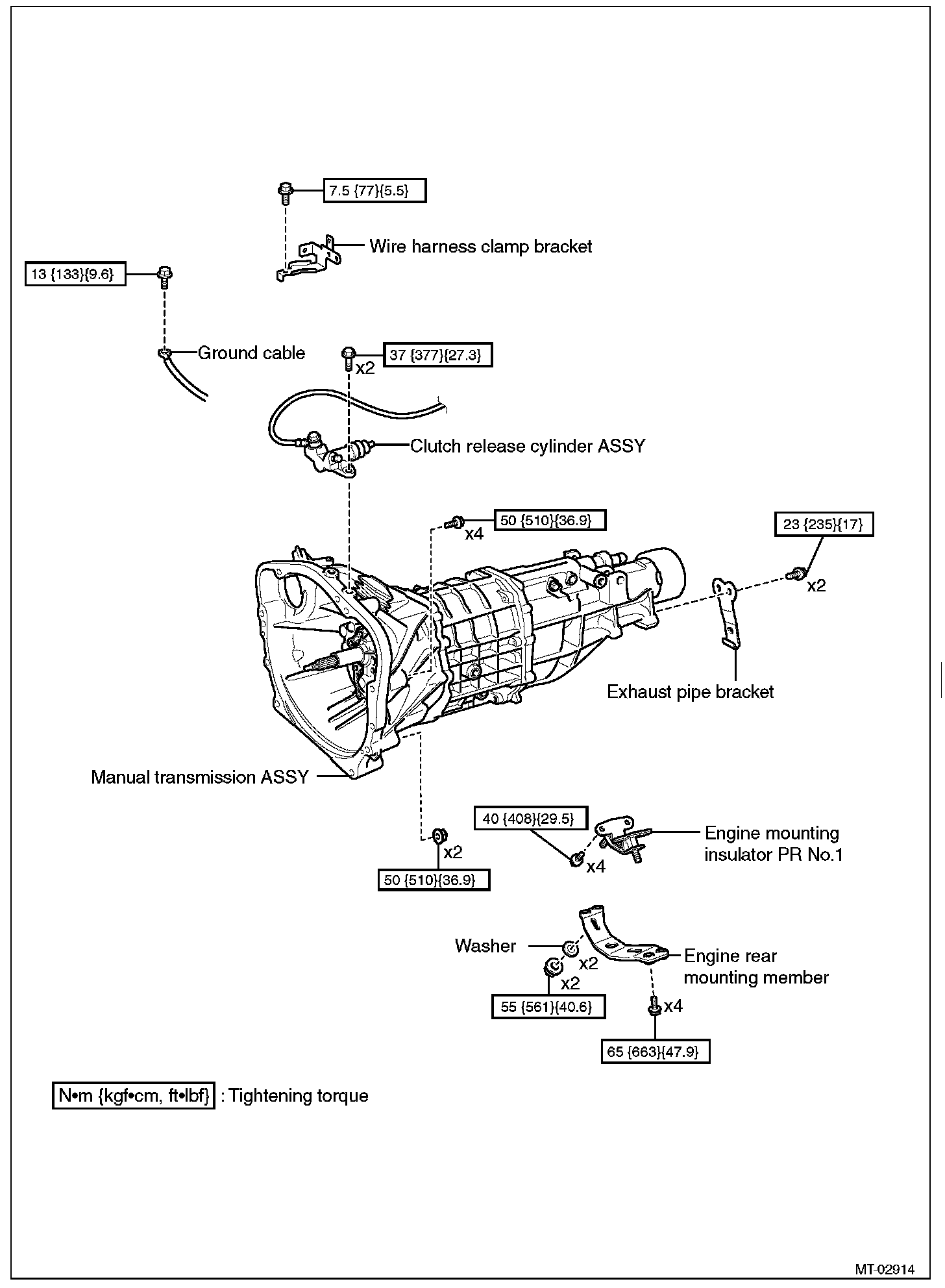

Exploded view
