Subaru
>>
2013
>>
BRZ F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Timing Chain
Timing Chain

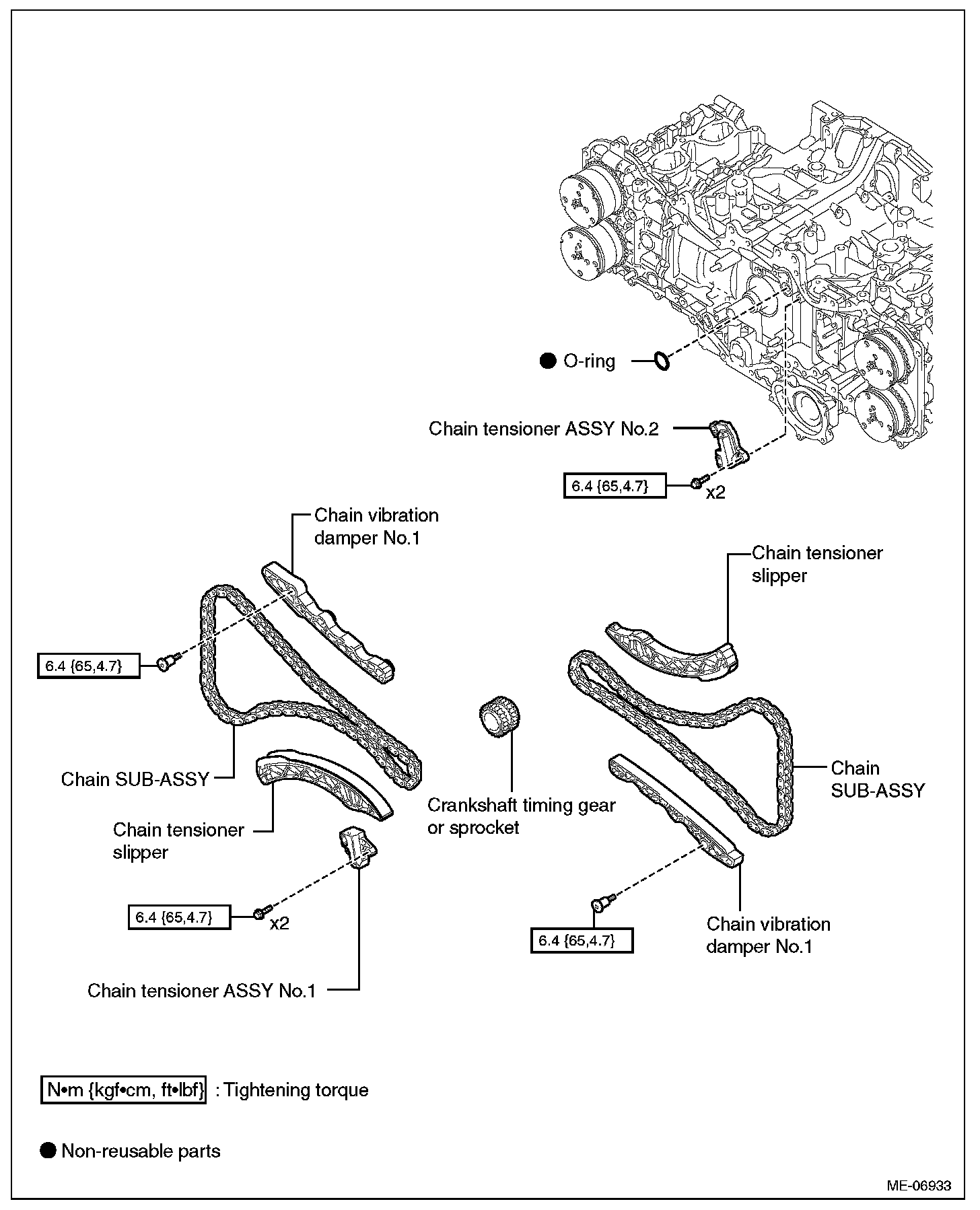

Timing chain
(FA20)
Exploded view
