Home
>>
Subaru
>>
2013
>>
BRZ F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear Brake
Rear Brake

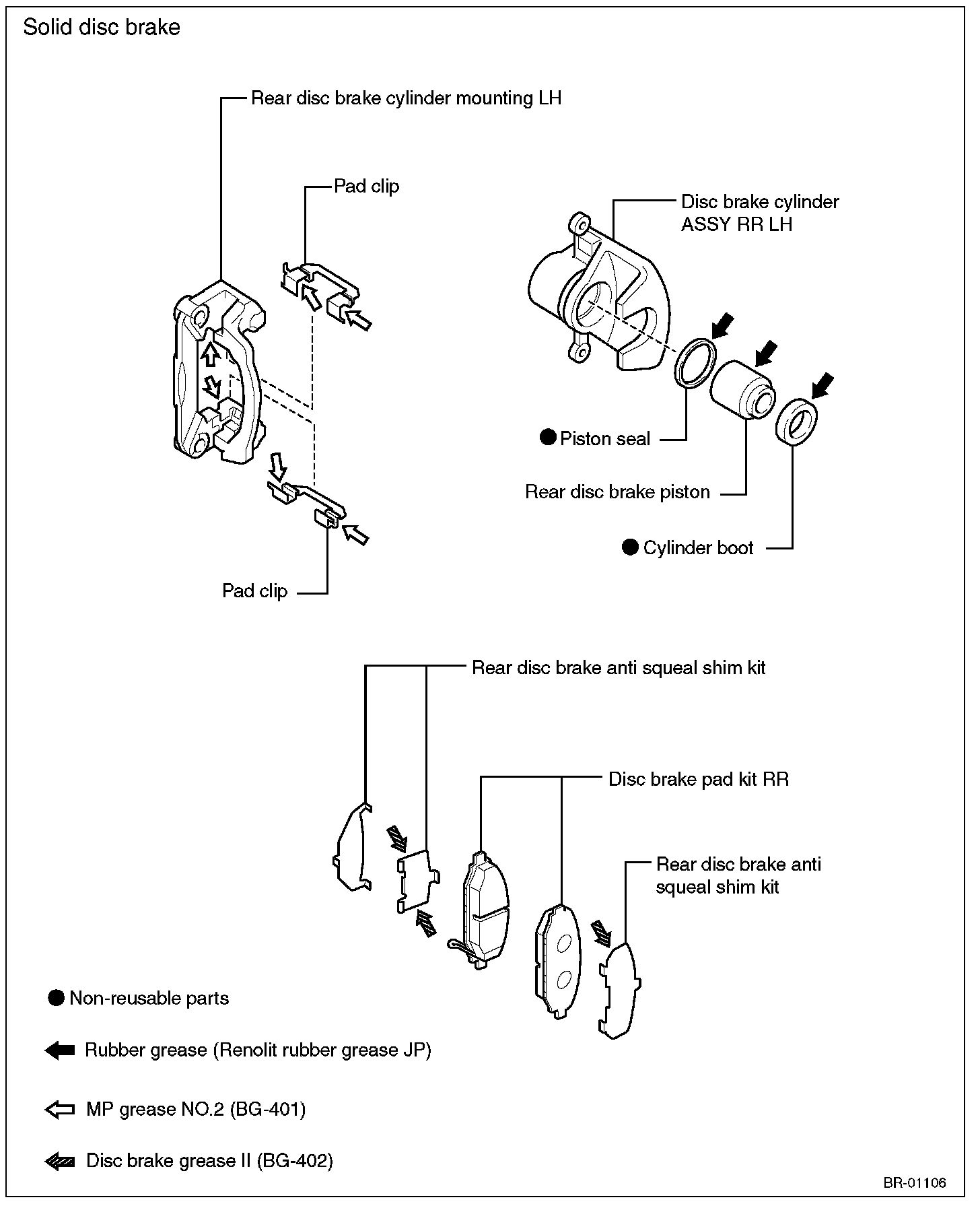

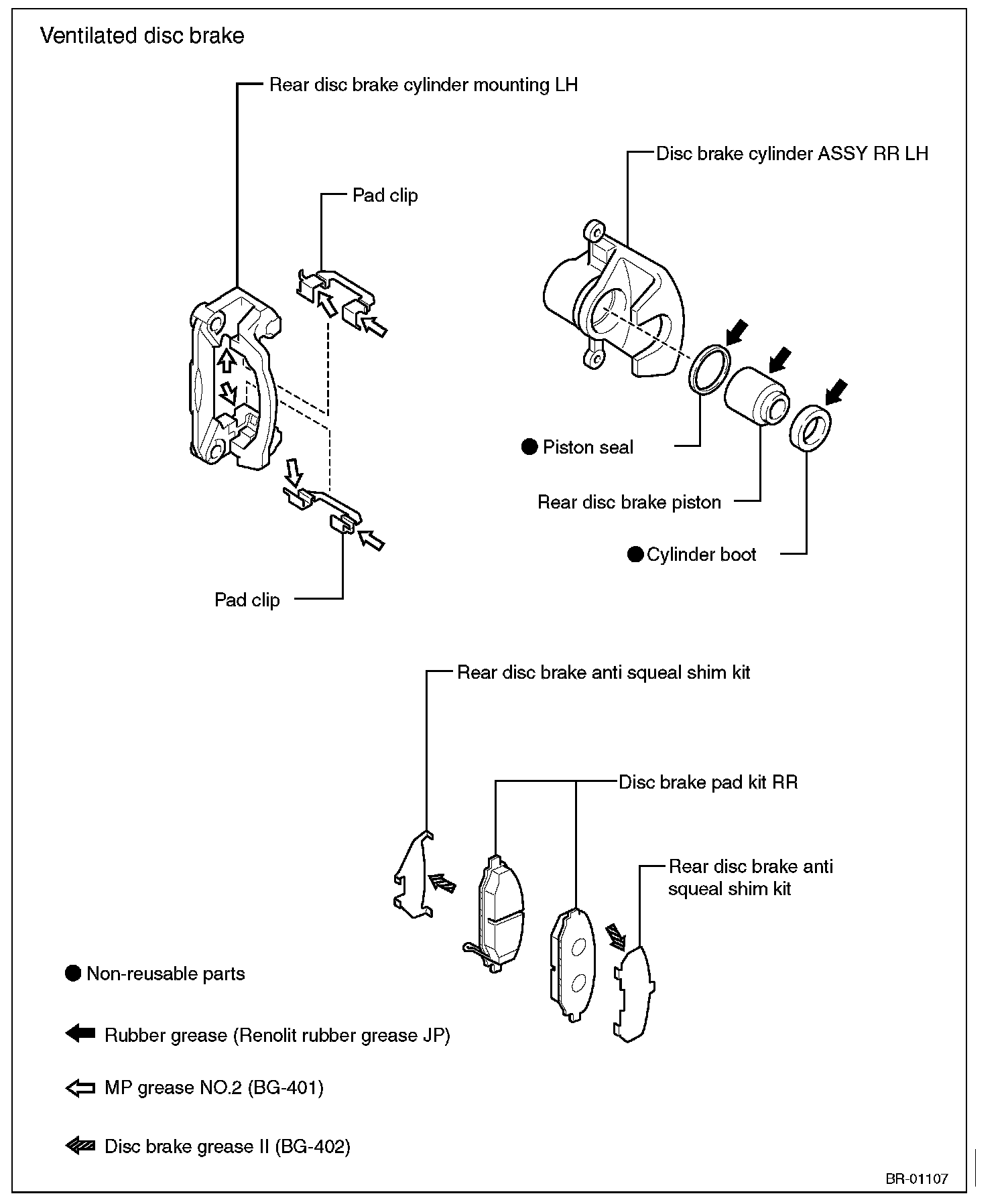

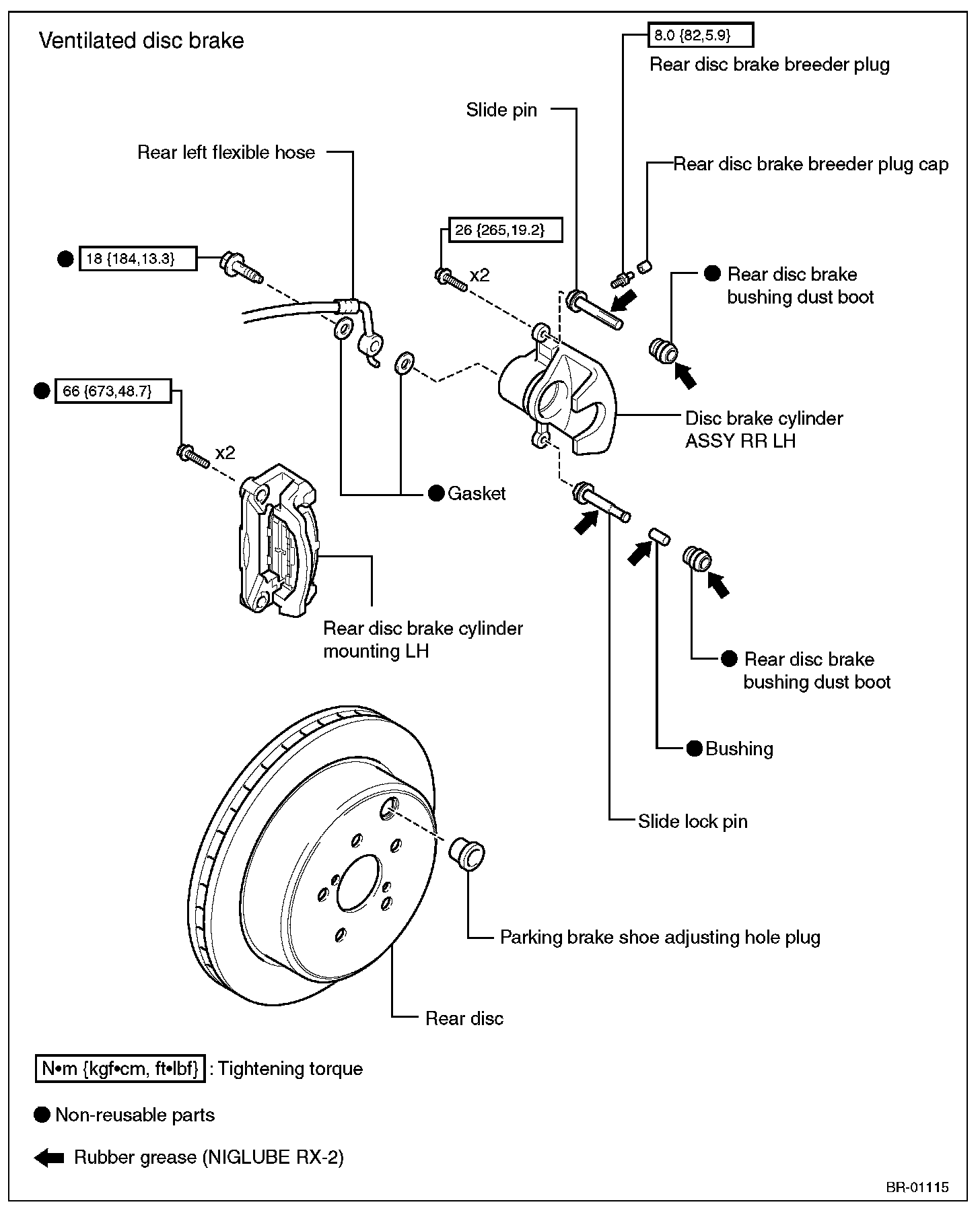

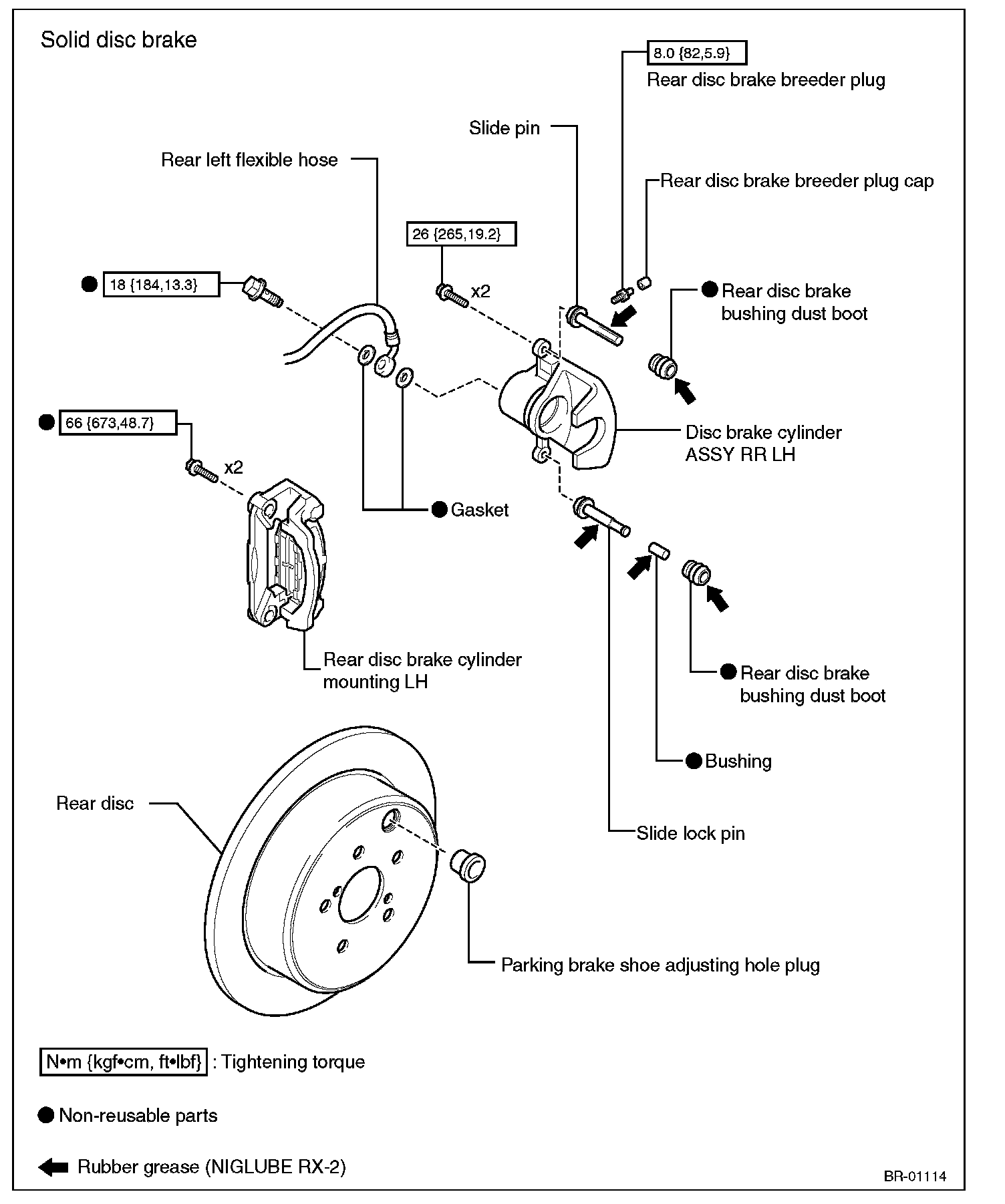

Rear brake
Exploded view
