Subaru
>>
2013
>>
BRZ F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Automatic Transmission ASSY
Automatic Transmission ASSY
Automatic transmission ASSY

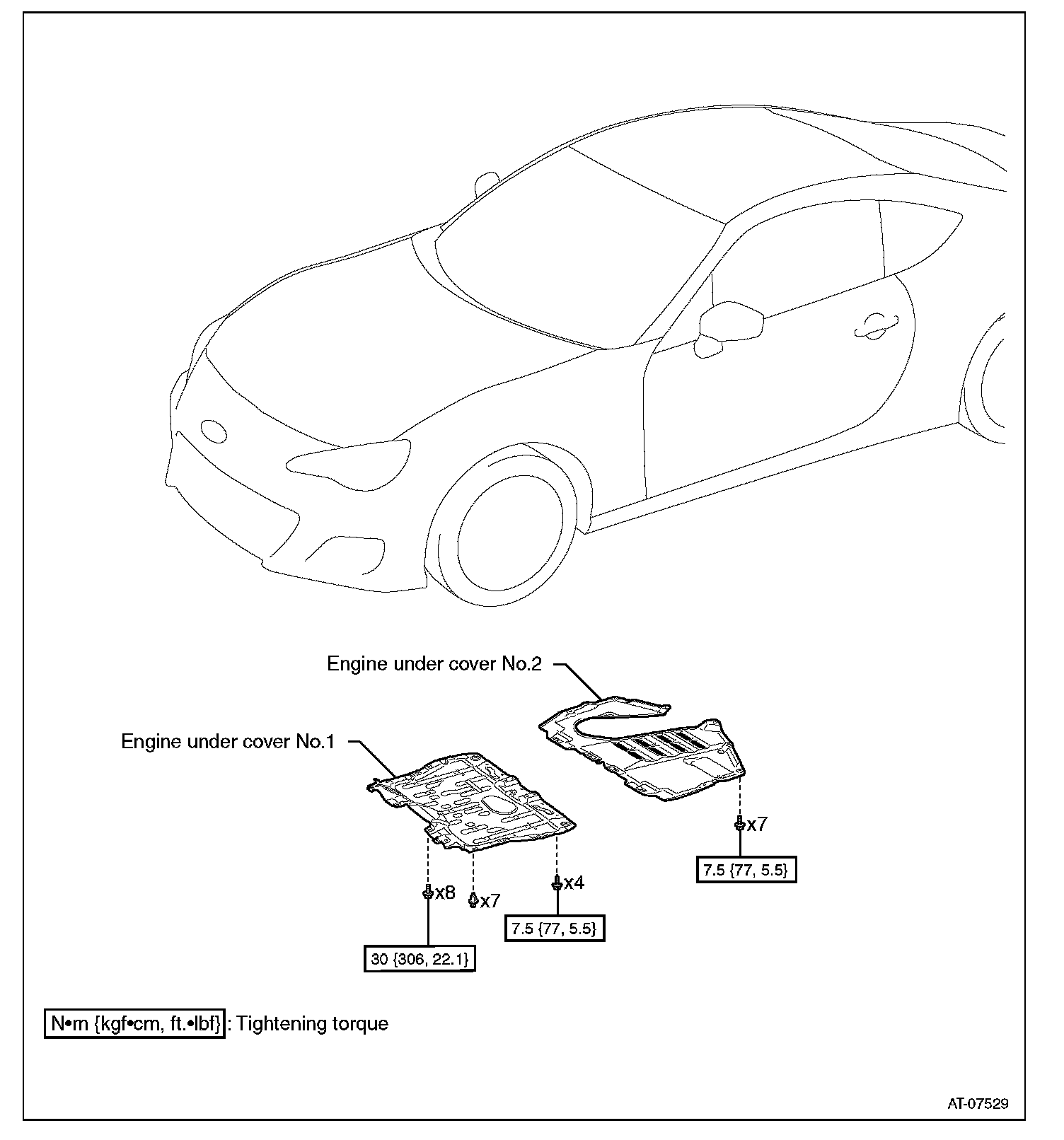

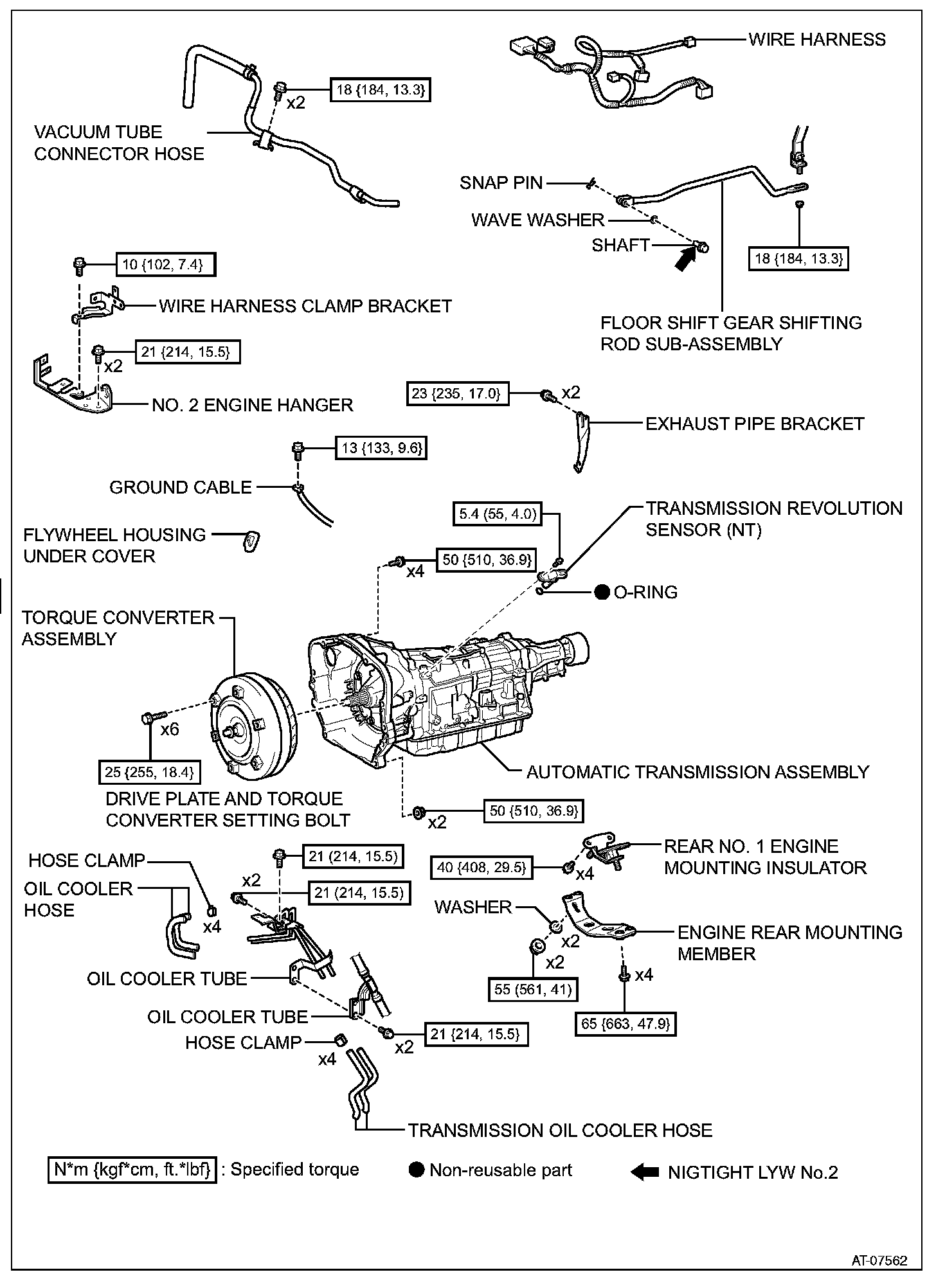

Exploded view
