Tribeca F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

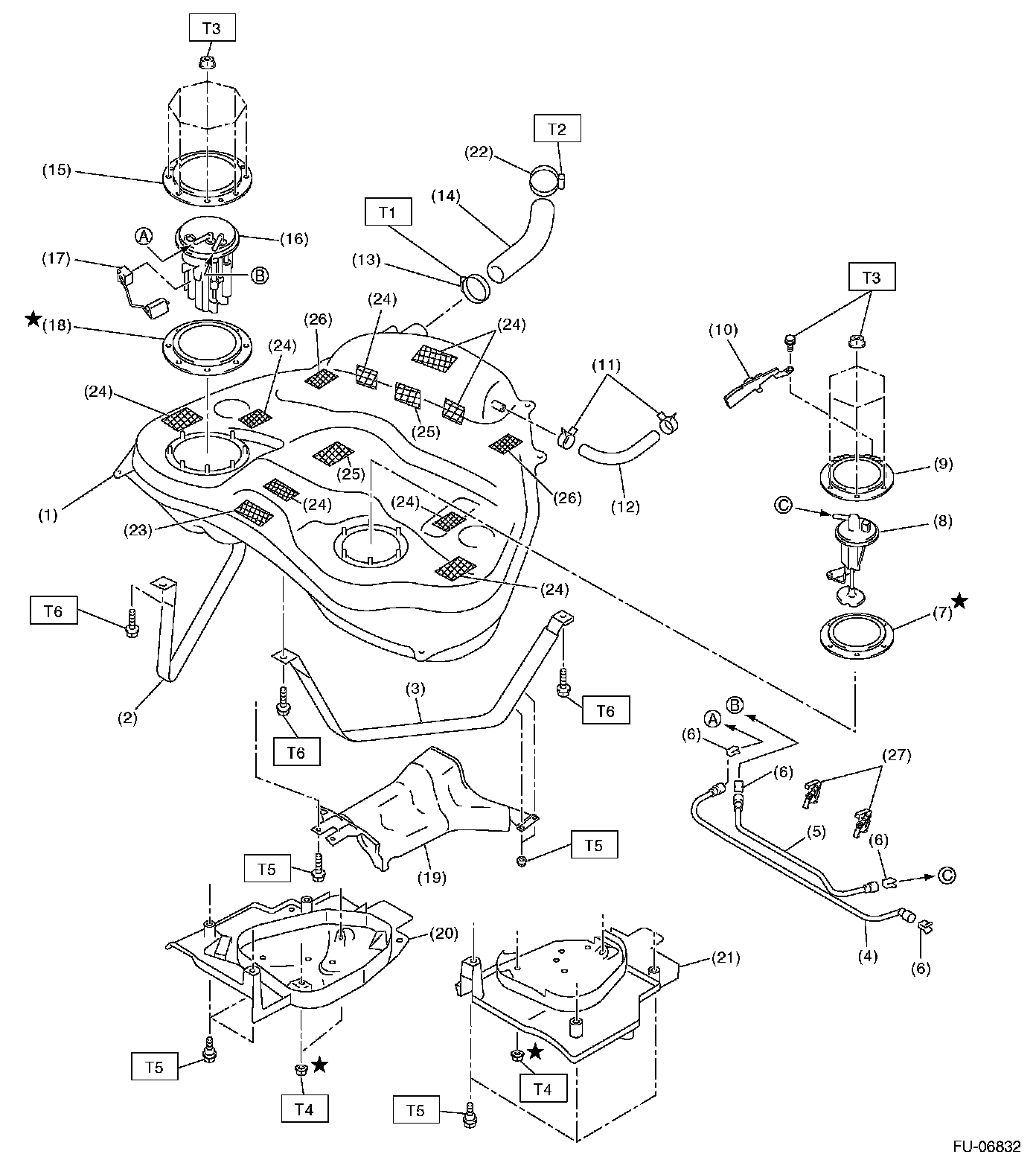

Exploded Views
>>
Fuel Tank
>>

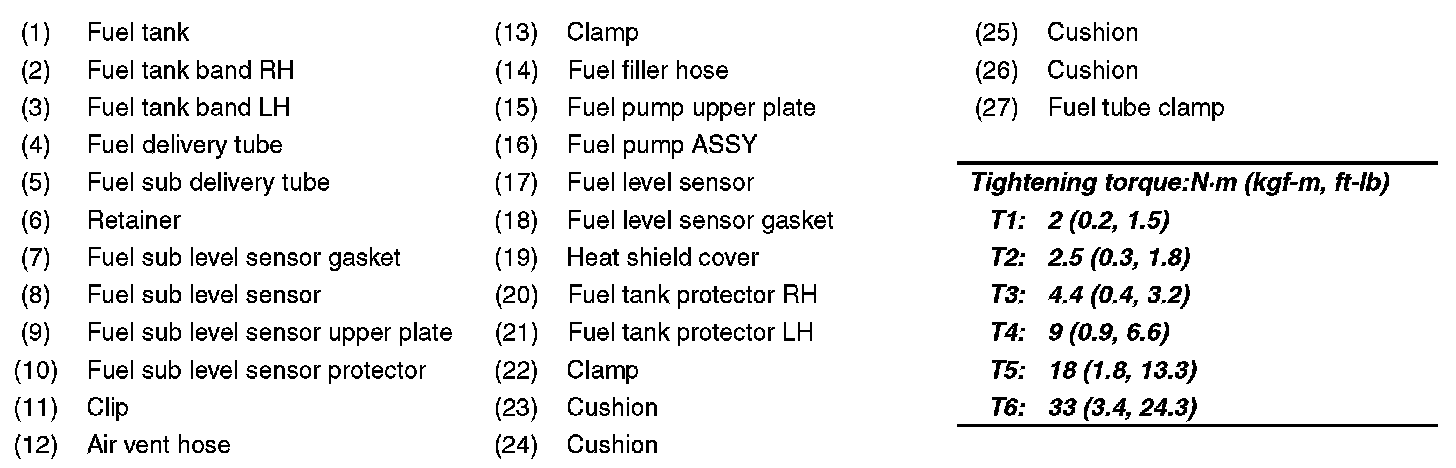

System Diagram
System Diagram
General Description
FUEL TANK
