Continuously Variable Transmission/Transaxle, CVT
>>
Reverse Brake Assembly and Intermediate Case
Reverse Brake Assembly and Intermediate Case

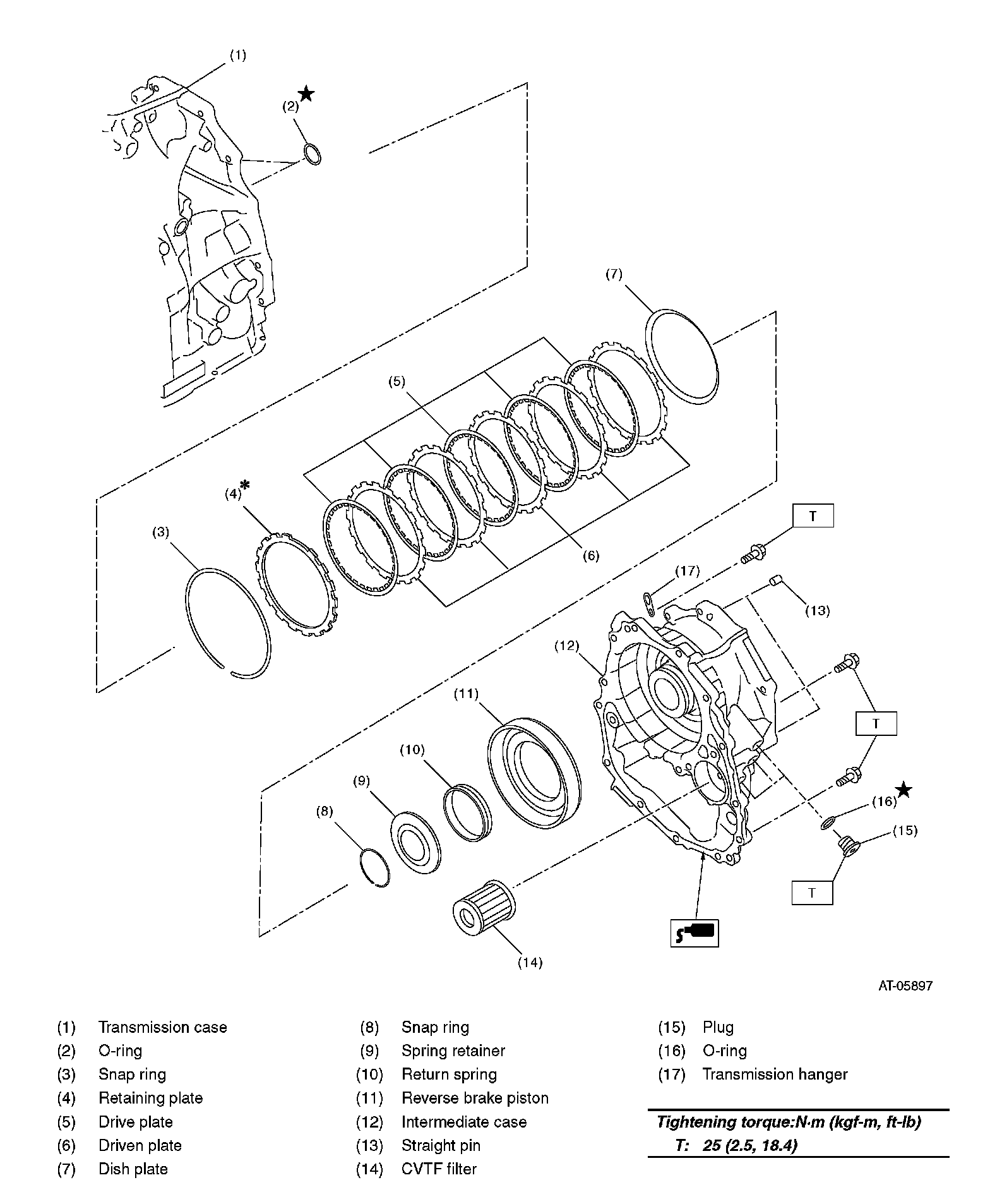

REVERSE BRAKE ASSEMBLY AND INTERMEDIATE CASE
