Continuously Variable Transmission/Transaxle, CVT
>>
Torque Converter Assembly and Converter Case
Torque Converter Assembly and Converter Case

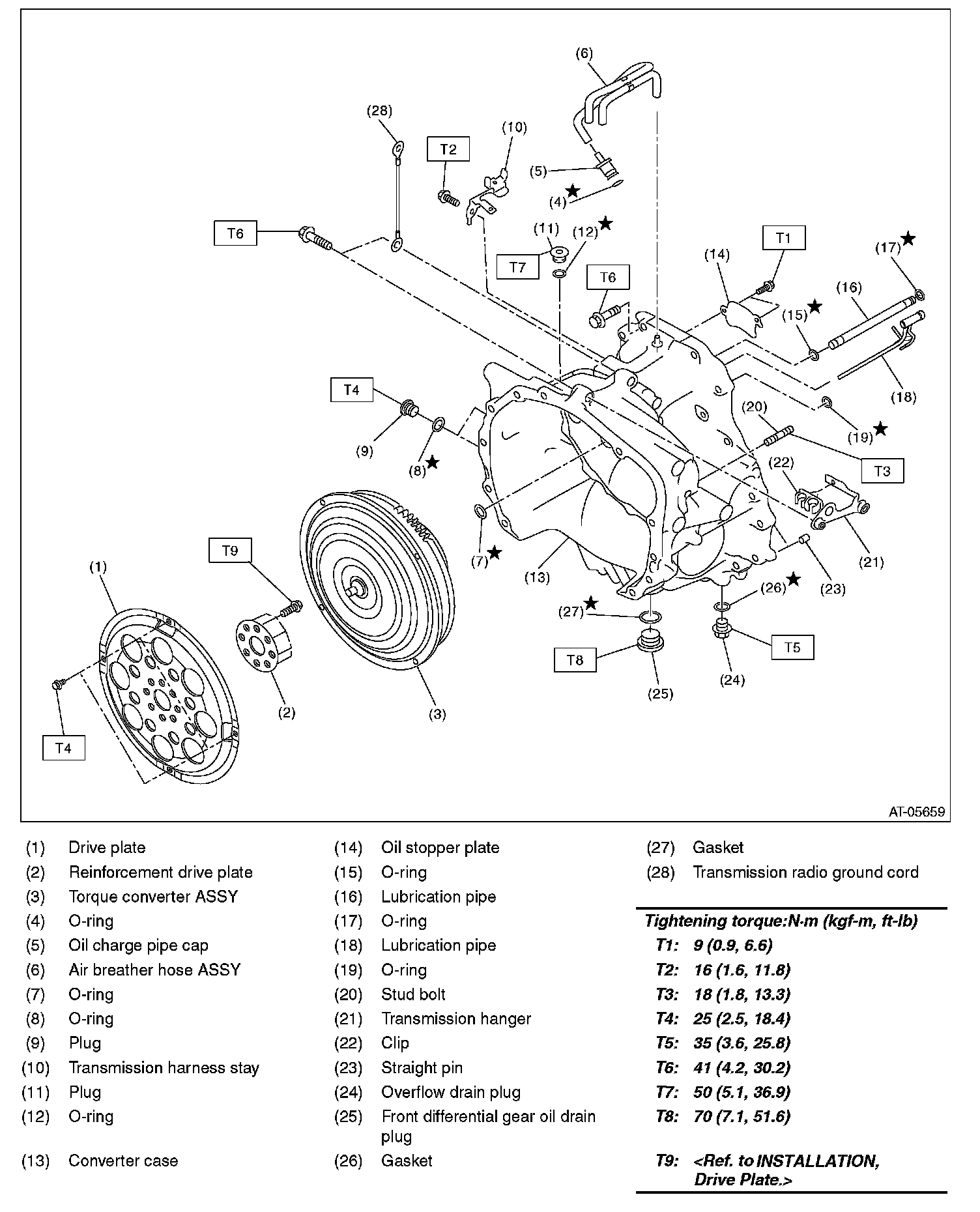

TORQUE CONVERTER ASSEMBLY AND CONVERTER CASE
