Continuously Variable Transmission/Transaxle, CVT
>>
Front Reduction Drive Gear and Front Reduction Driven Gear
Front Reduction Drive Gear and Front Reduction Driven Gear

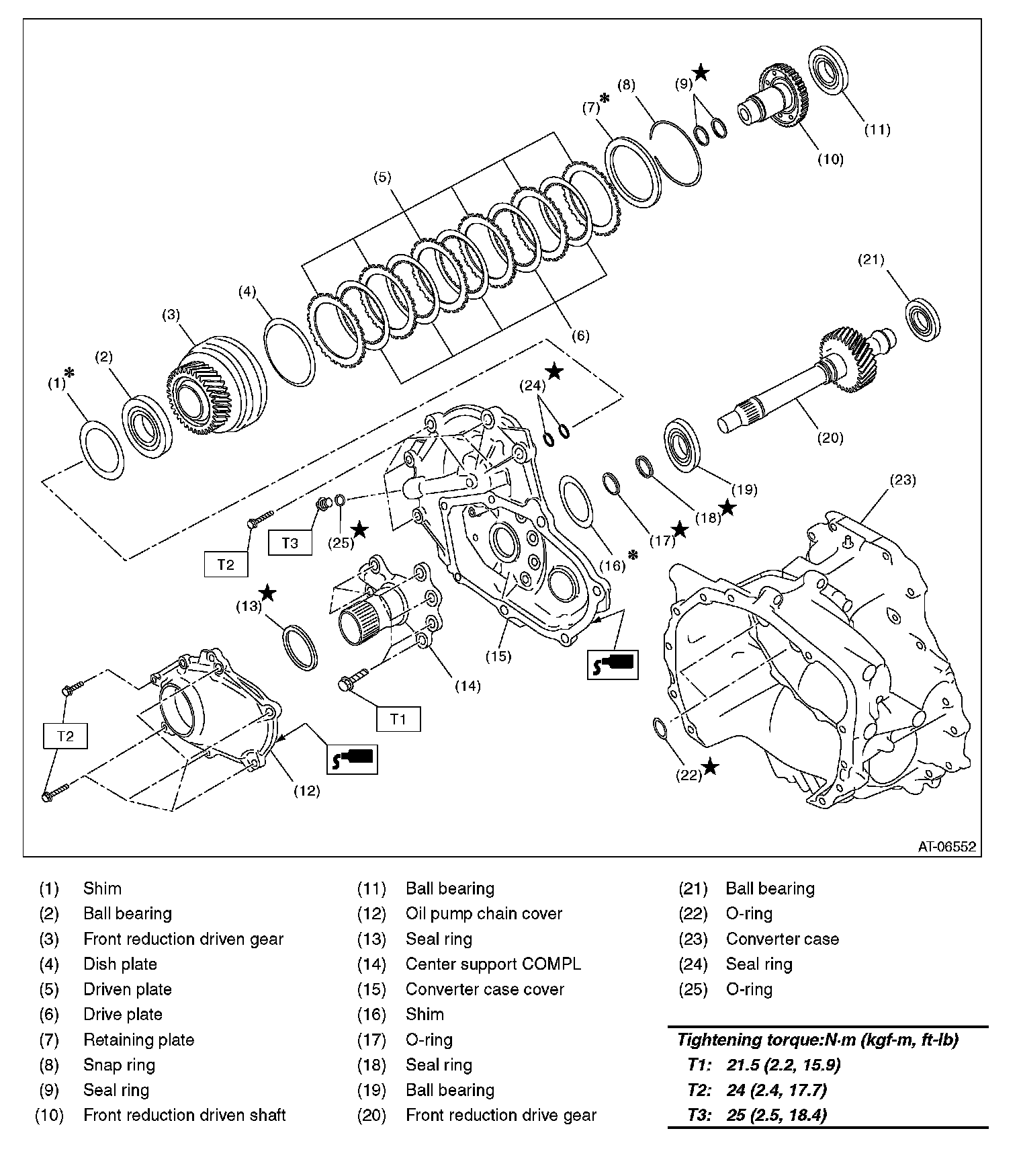

FRONT REDUCTION DRIVE GEAR AND FRONT REDUCTION DRIVEN GEAR
