Continuously Variable Transmission/Transaxle, CVT
>>
Front Differential Gear
Front Differential Gear

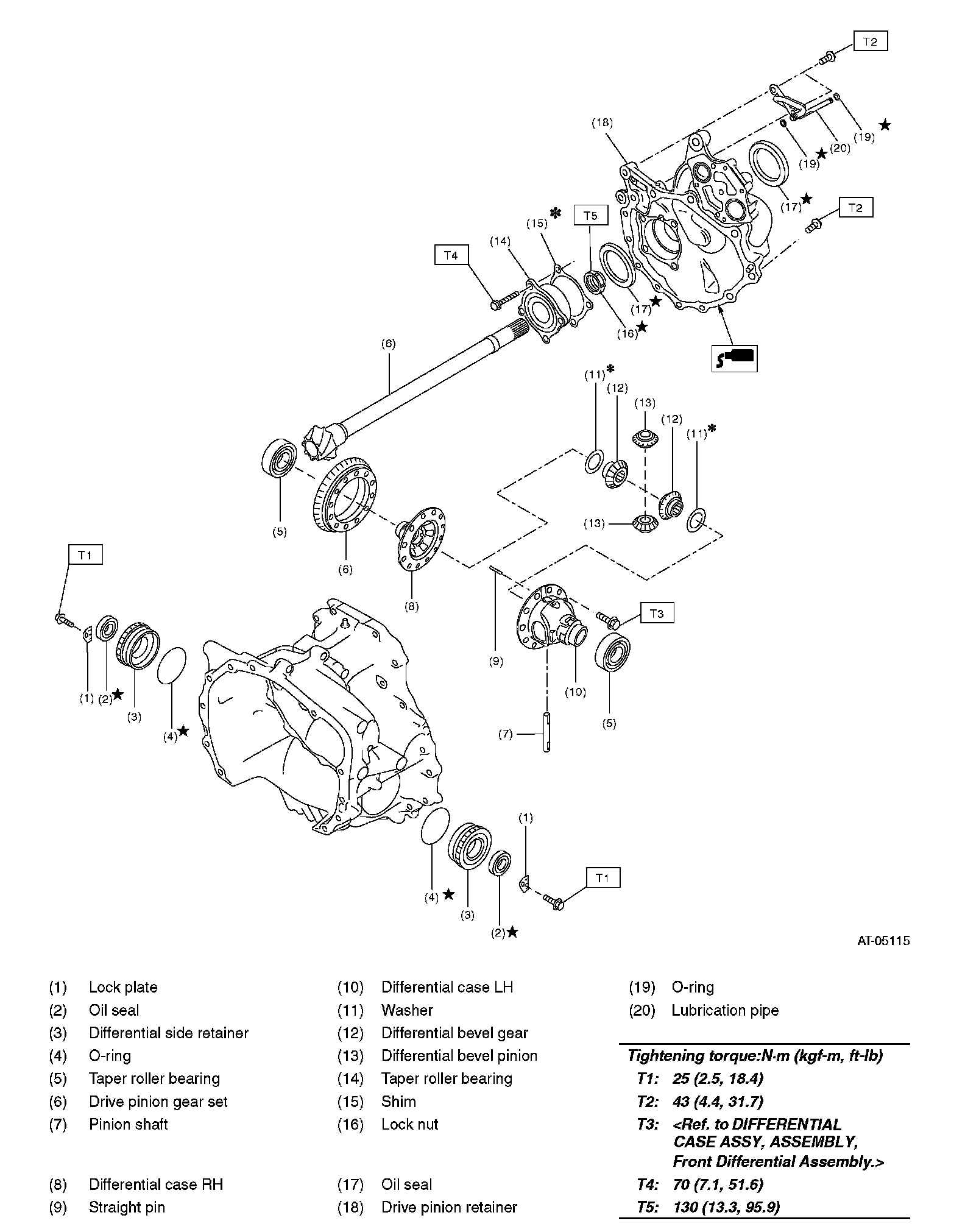

FRONT DIFFERENTIAL GEAR
