Subaru
>>
2012
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear

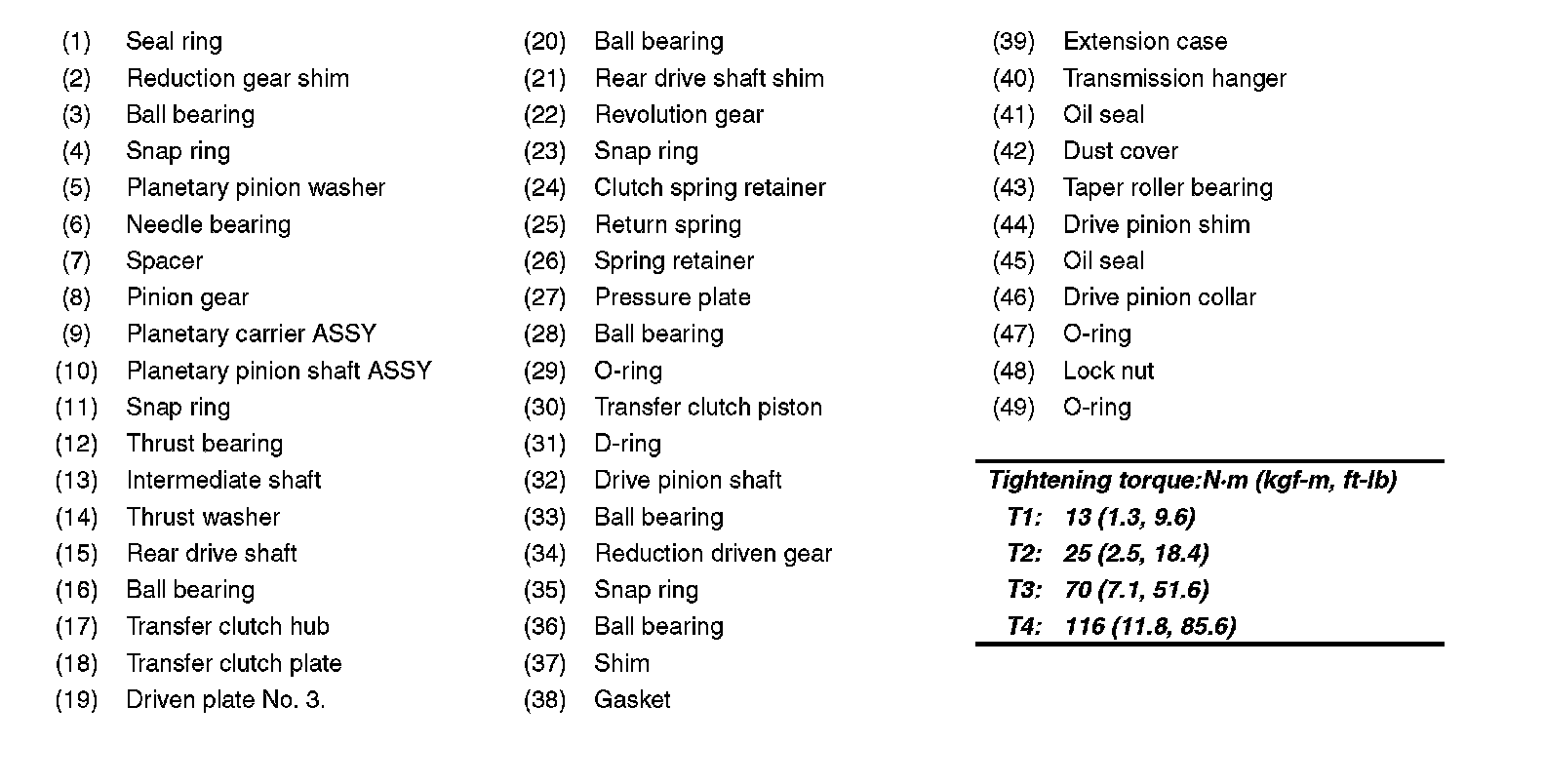

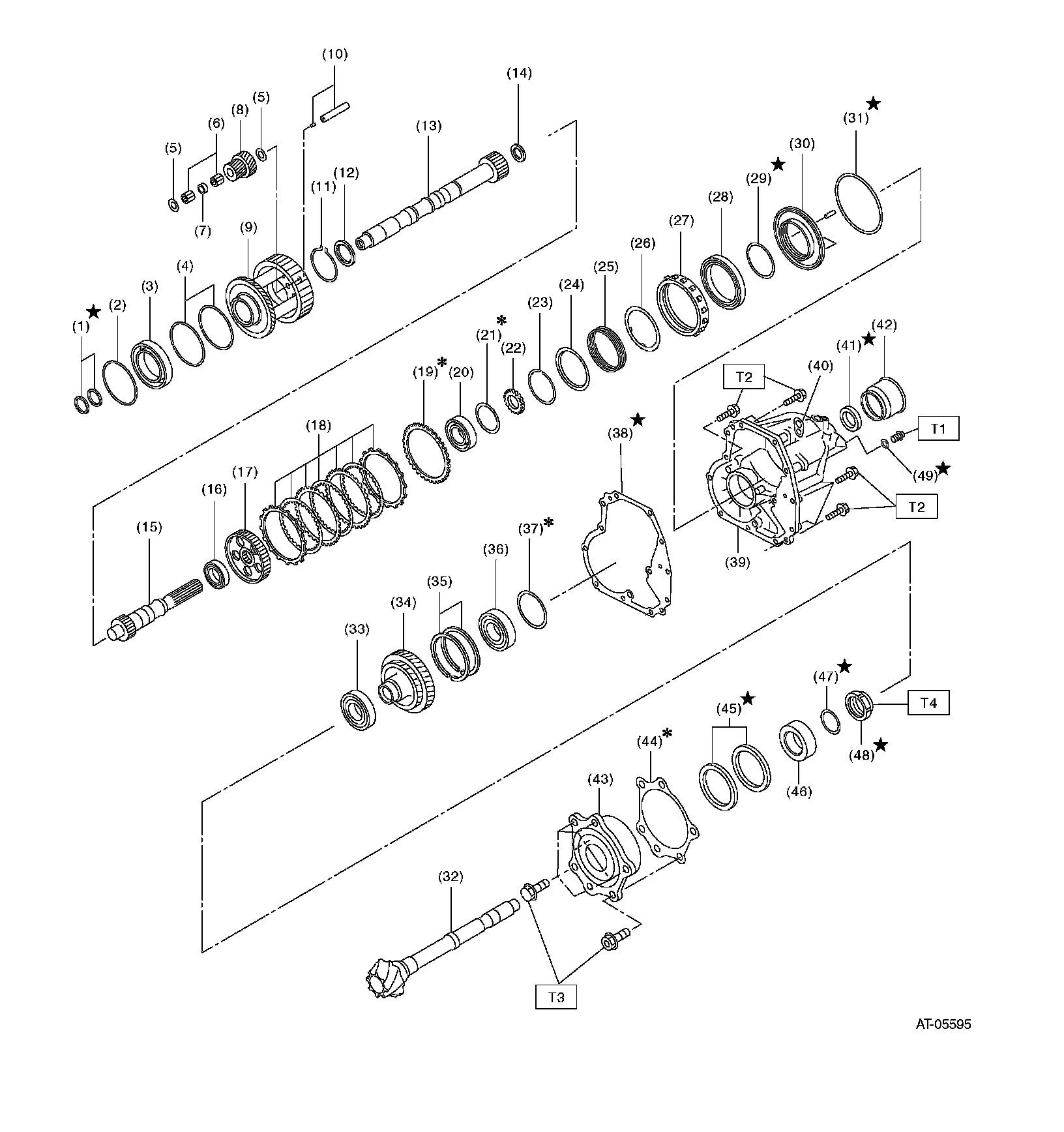

TRANSFER CASE
, EXTENSION CASE & REDUCTION GEAR
