Automatic Transmission/Transaxle
>>
System Diagram
>>
Control Valve & Transmission Harness
Control Valve & Transmission Harness

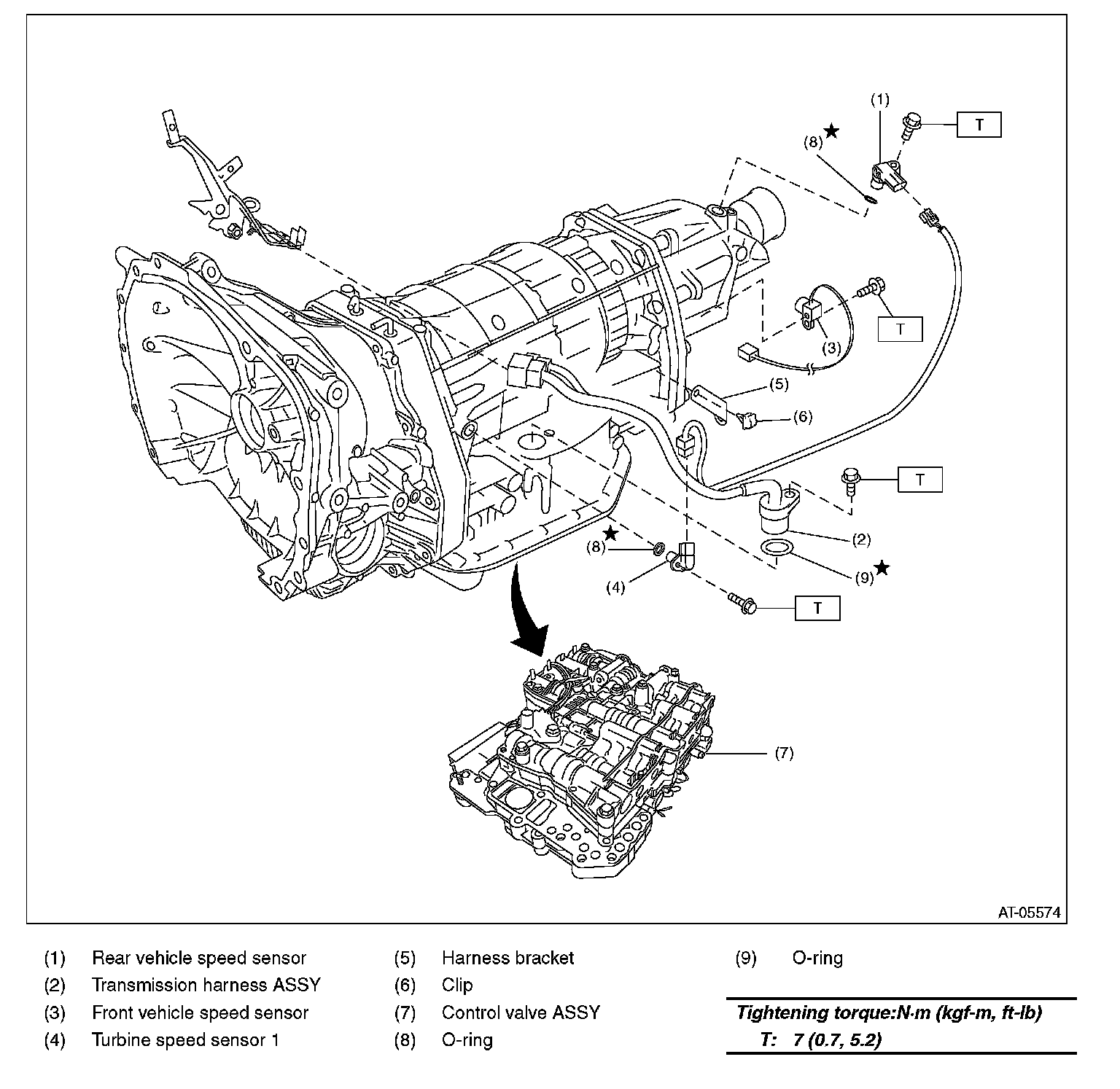

CONTROL VALVE & TRANSMISSION HARNESS
