Subaru
>>
2012
>>
Legacy F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Control Valve Body
Control Valve Body

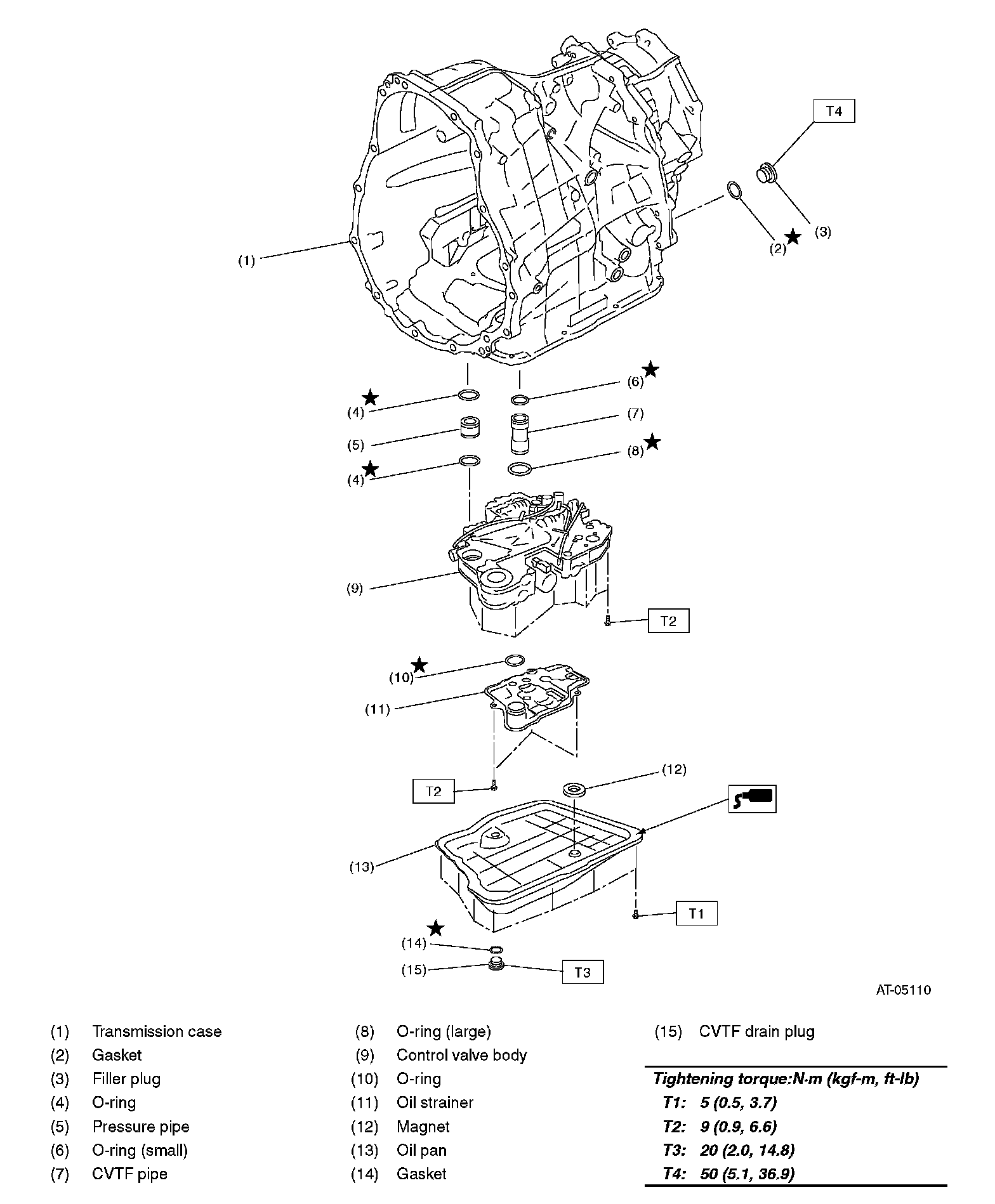

CONTROL VALVE BODY
