Home
>>
Subaru
>>
2012
>>
Legacy F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

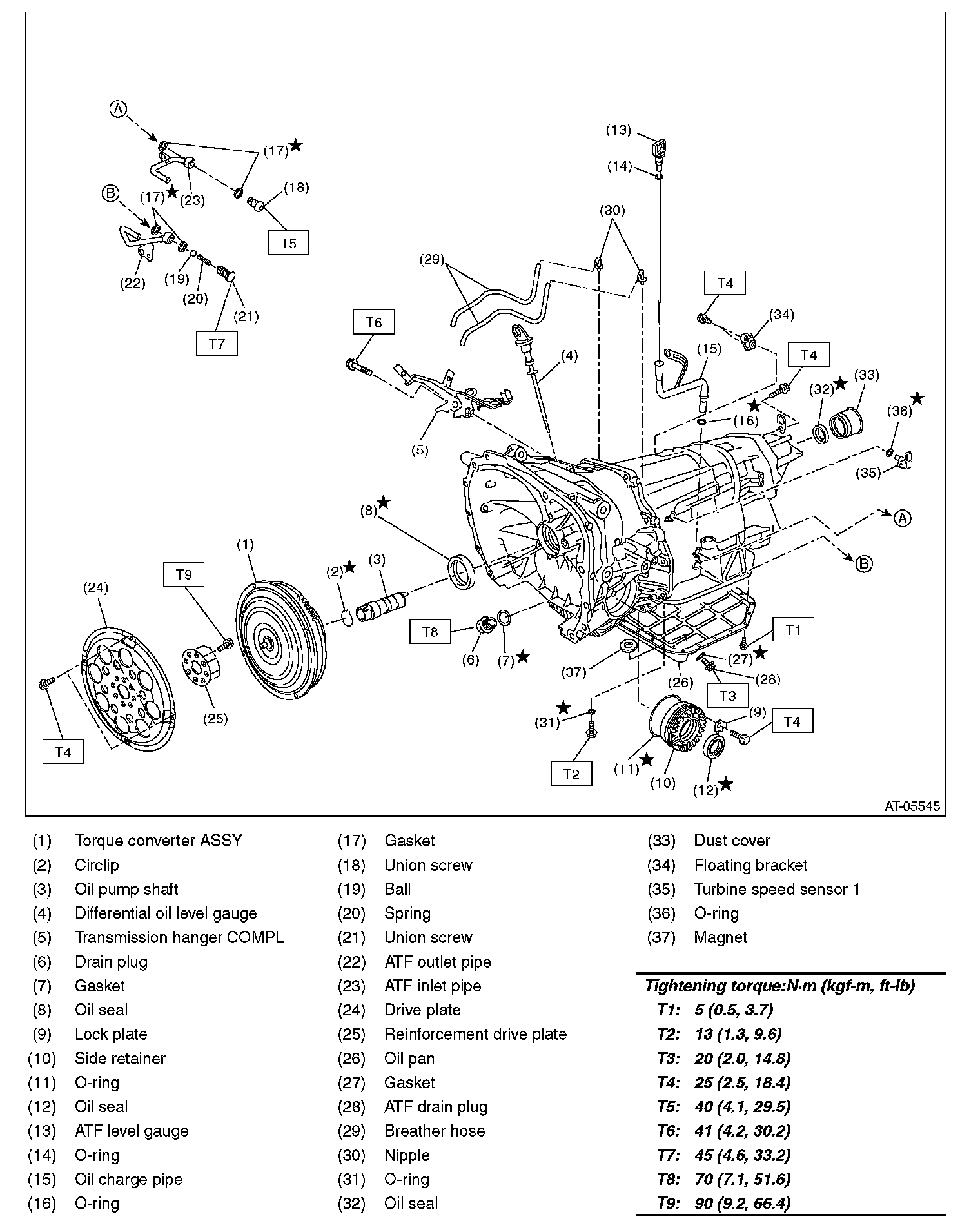

Torque Converter Clutch & Transmission Assembly
Torque Converter Clutch & Transmission Assembly
TORQUE CONVERTER CLUTCH & TRANSMISSION ASSEMBLY
