Home
>>
Subaru
>>
2012
>>
Impreza F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>
Engine Mounting
Engine Mounting
ENGINE MOUNTING
-

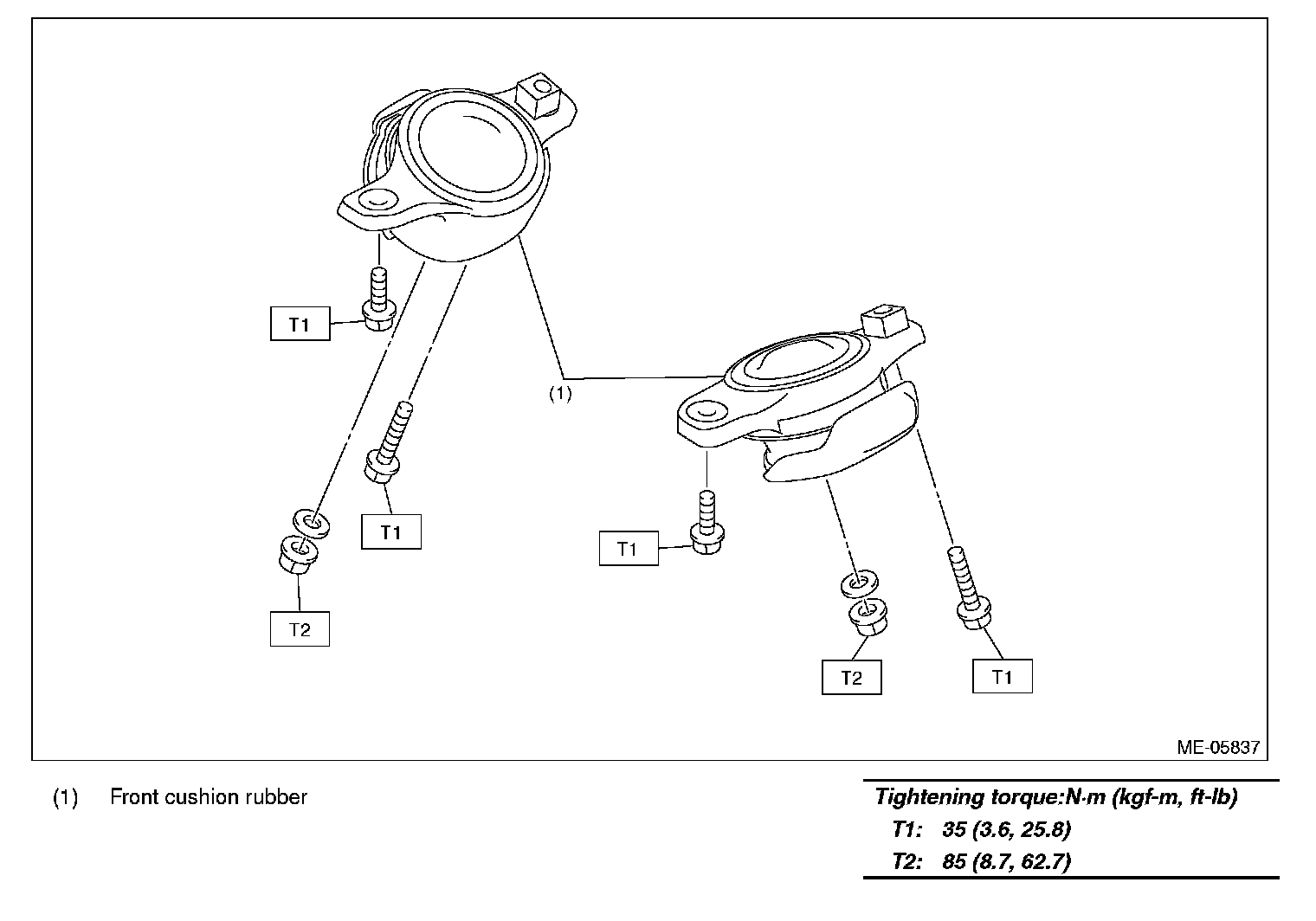

CVT model
-

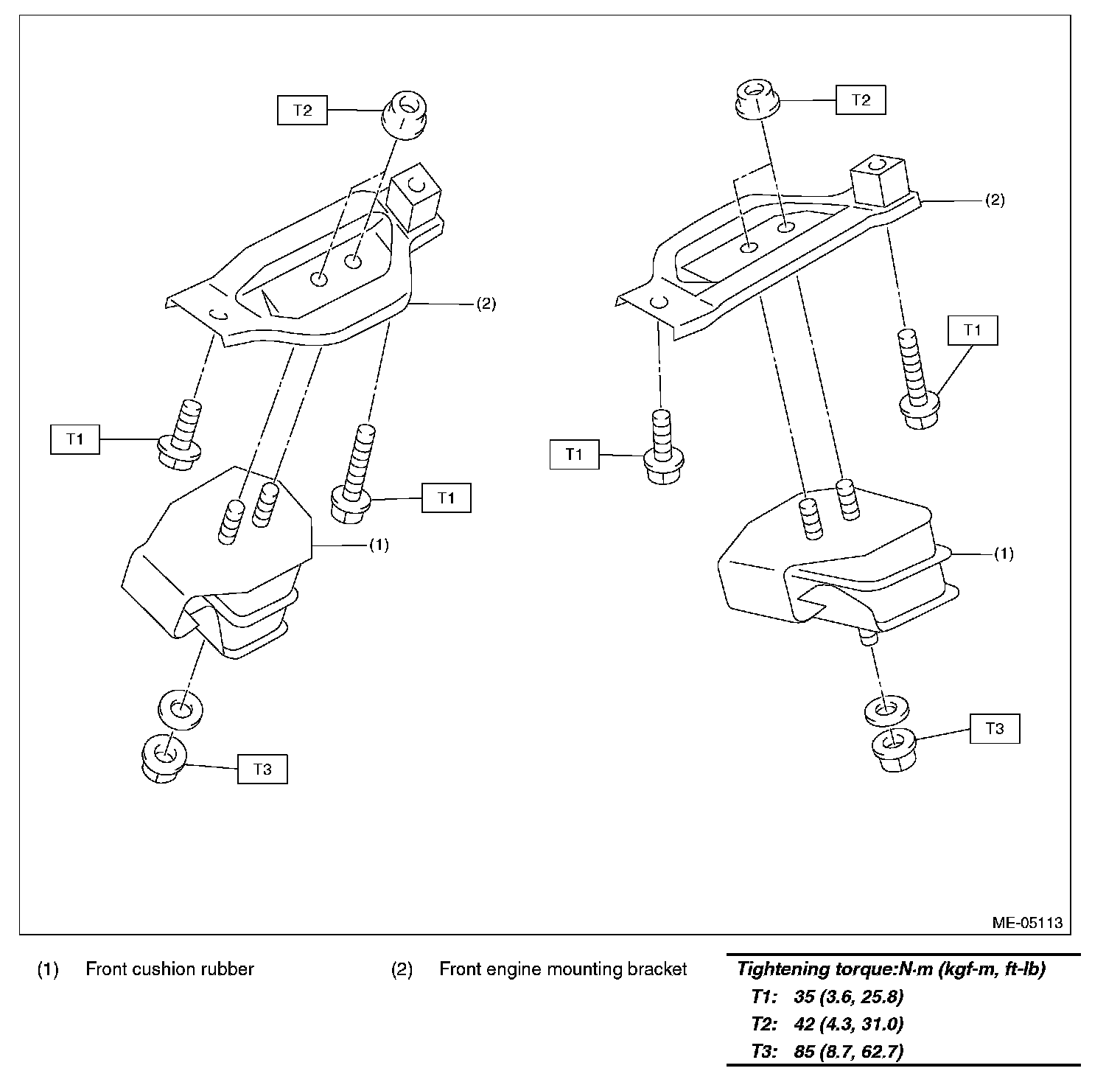

MT model
