Subaru
>>
2012
>>
Impreza F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Diagram
>>
System Overview Schematics
System Overview Schematics
CVT Control System

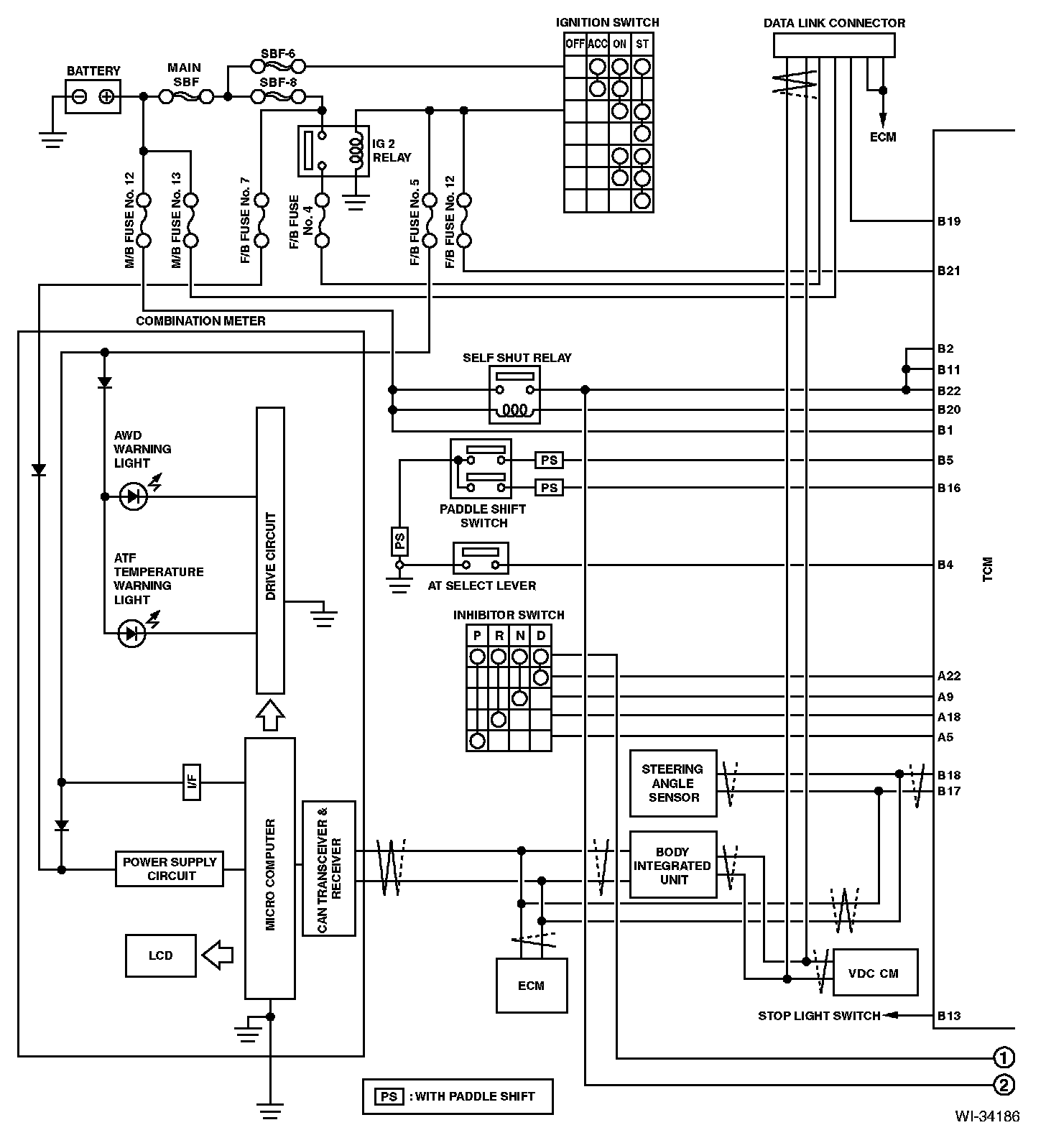

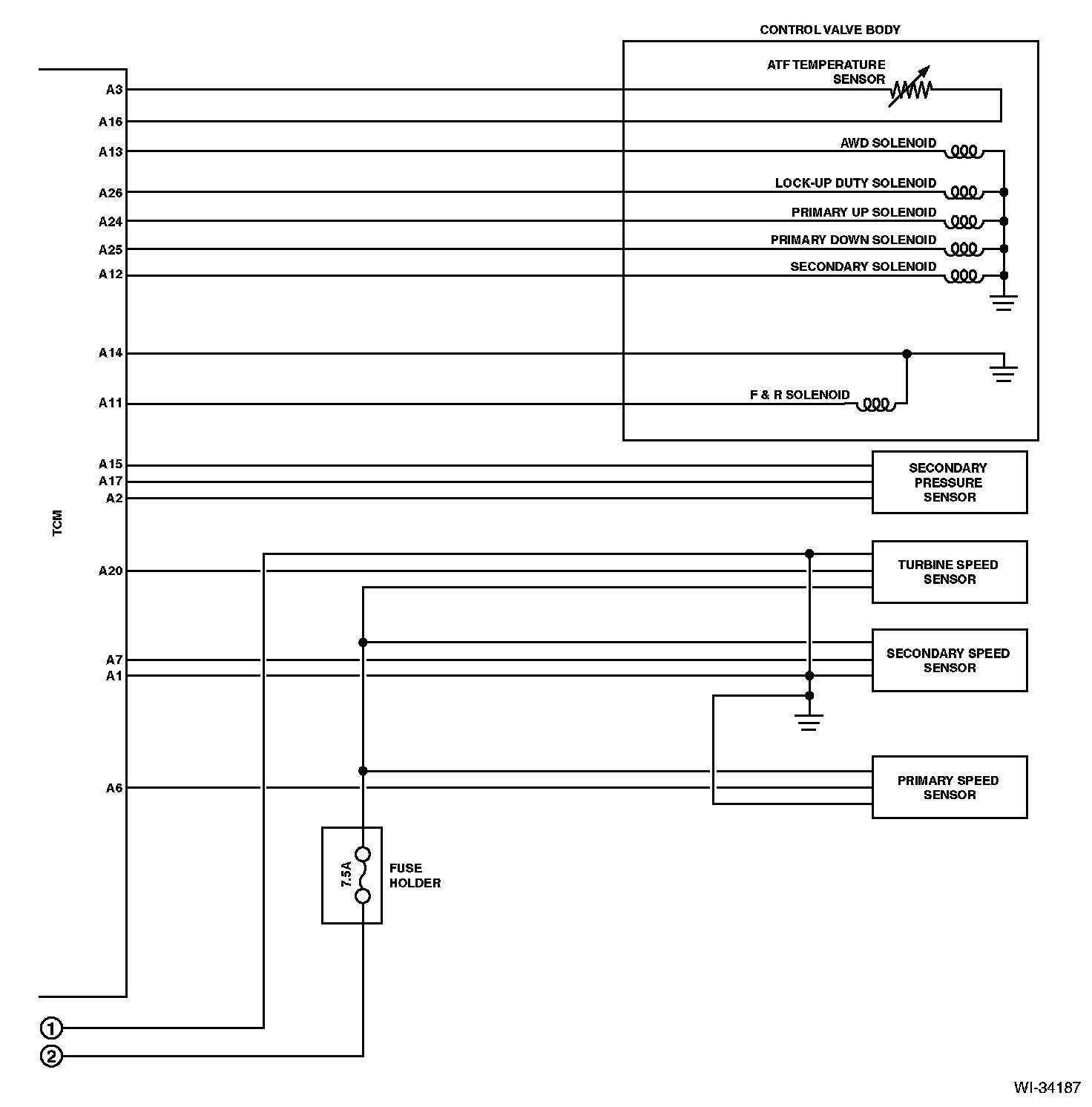

WIRING DIAGRAM
