Control Module I/O Signal
Control Module I/O Signal
Control Module I/O Signal

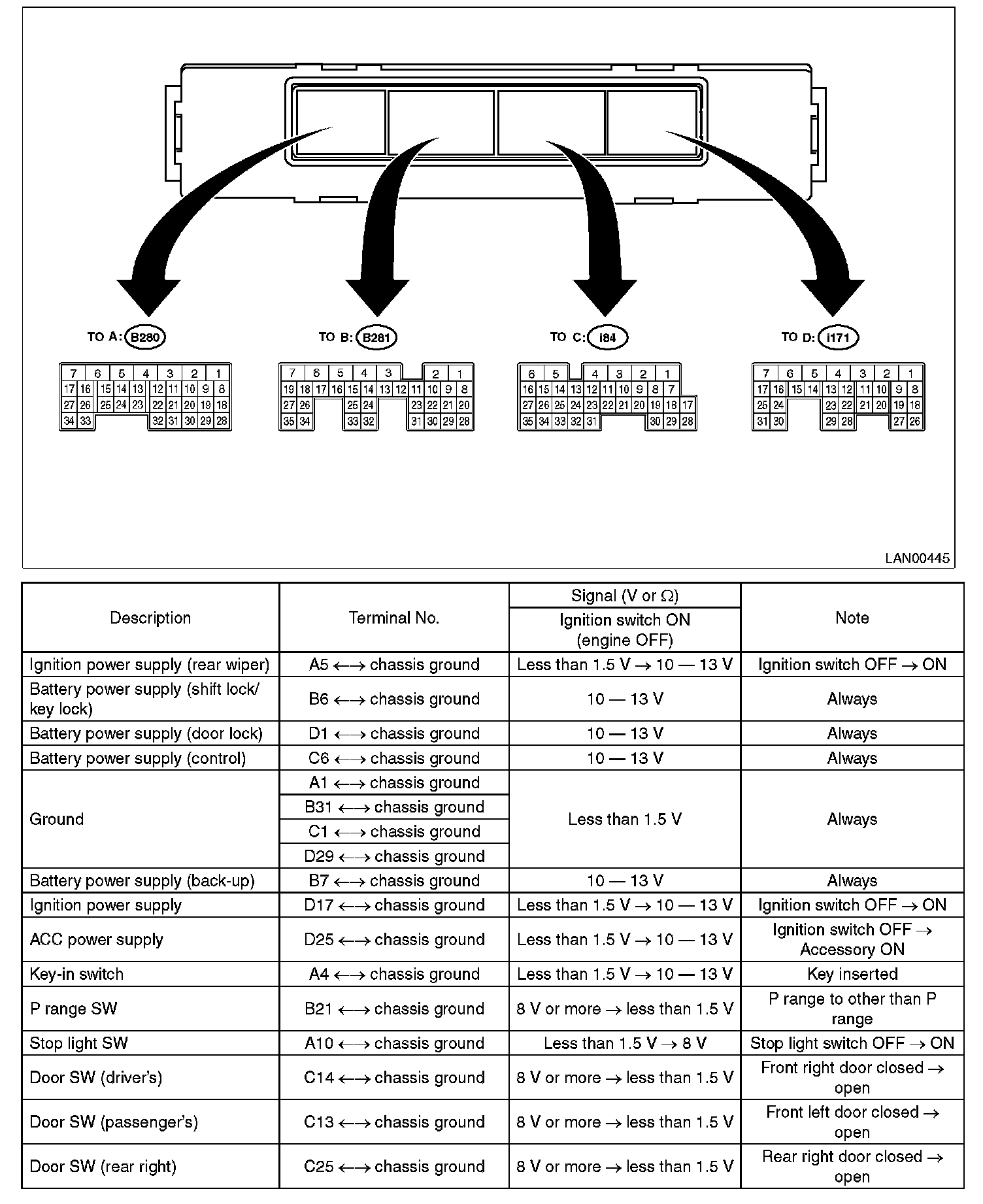

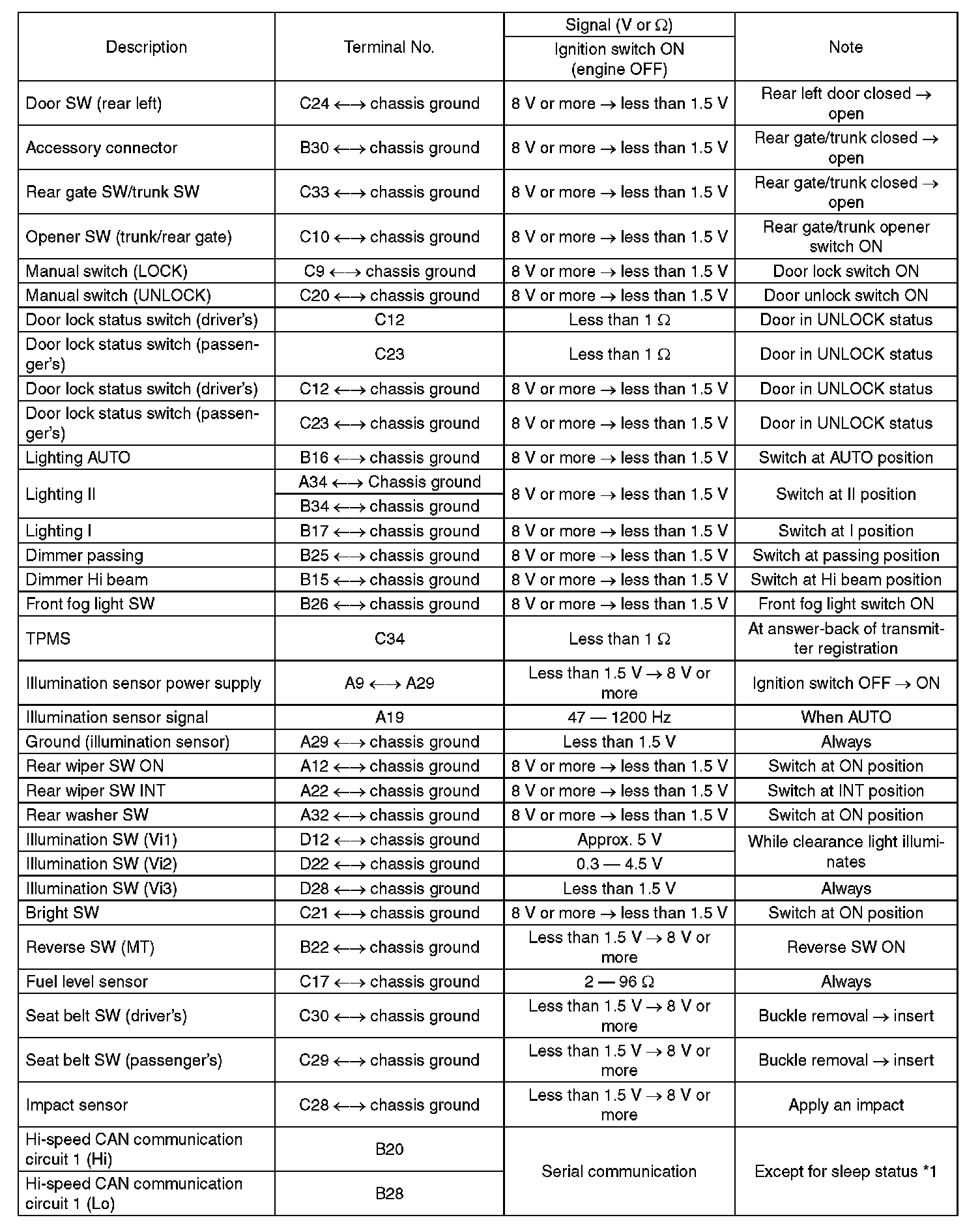

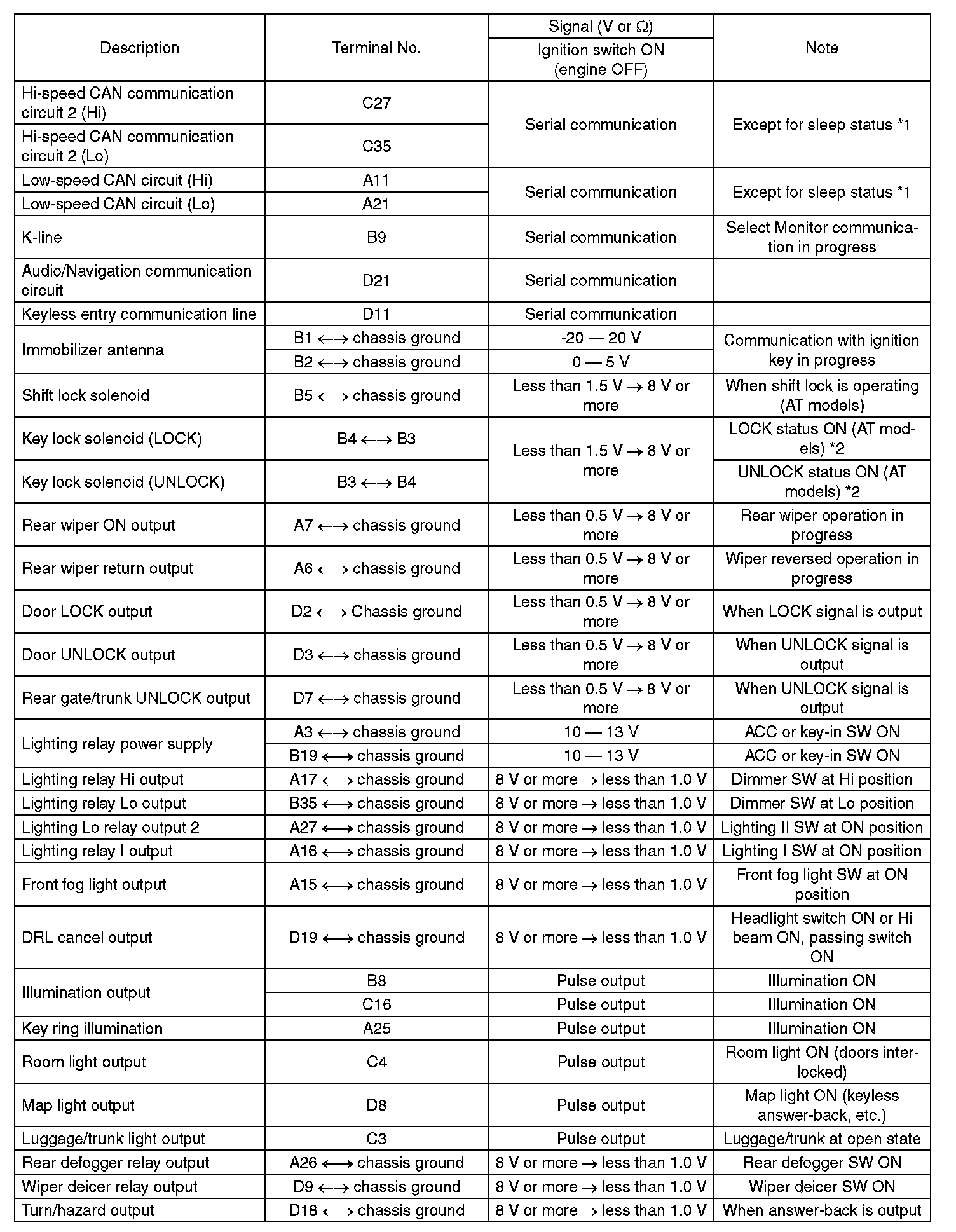

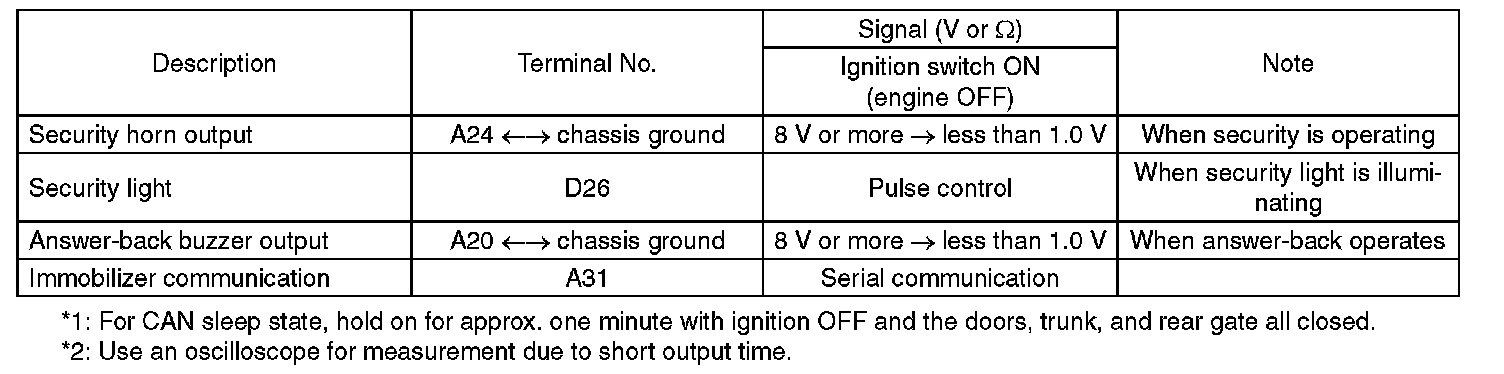

ELECTRICAL SPECIFICATION
