Automatic Transmission/Transaxle
>>
System Diagram
>>
Differential Gear

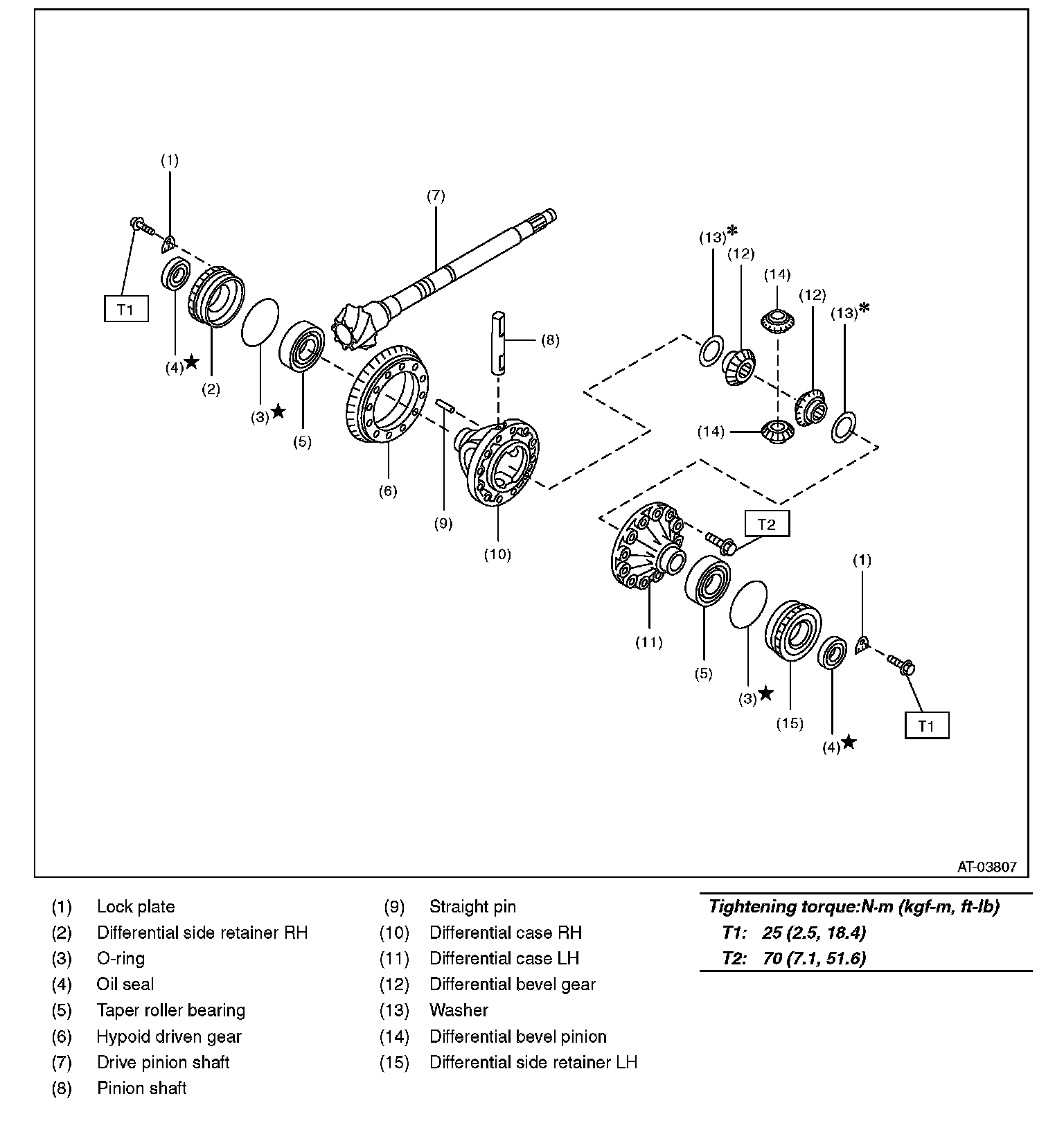

Differential Gear
General Description

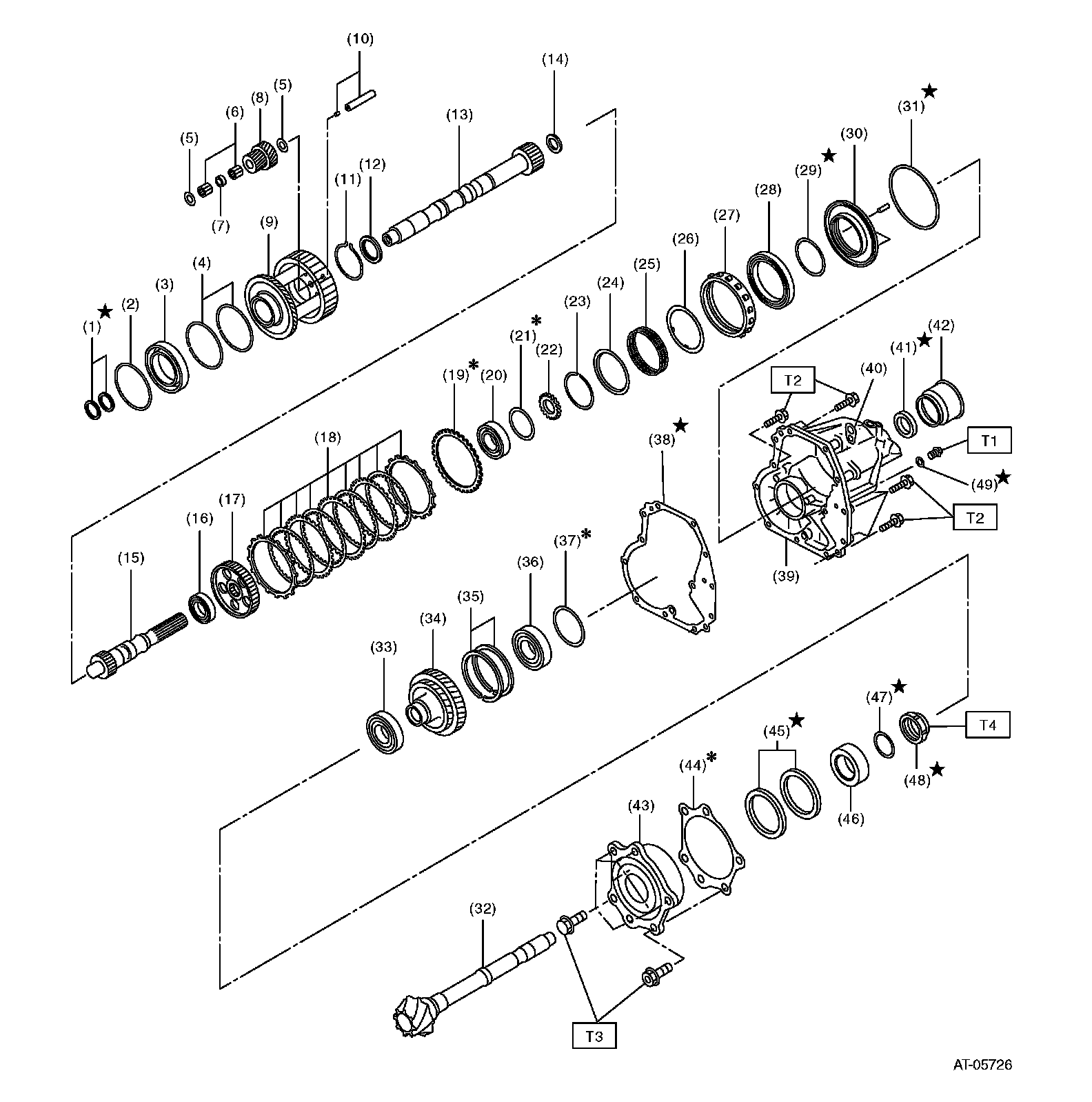

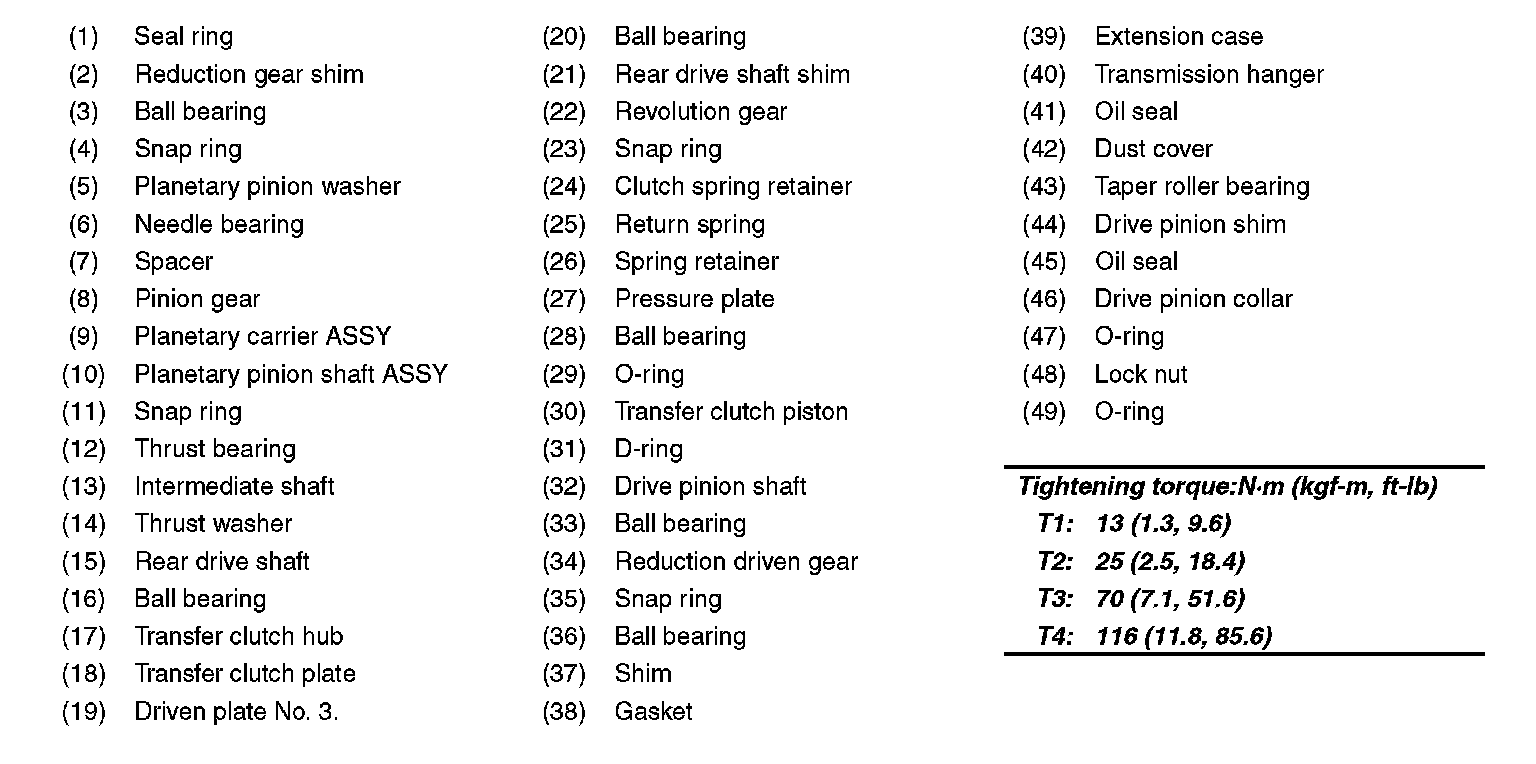

COMPONENT
DIFFERENTIAL GEAR
