Home
>>
Subaru
>>
2010
>>
Outback F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Control Valve & Transmission Harness
Control Valve & Transmission Harness

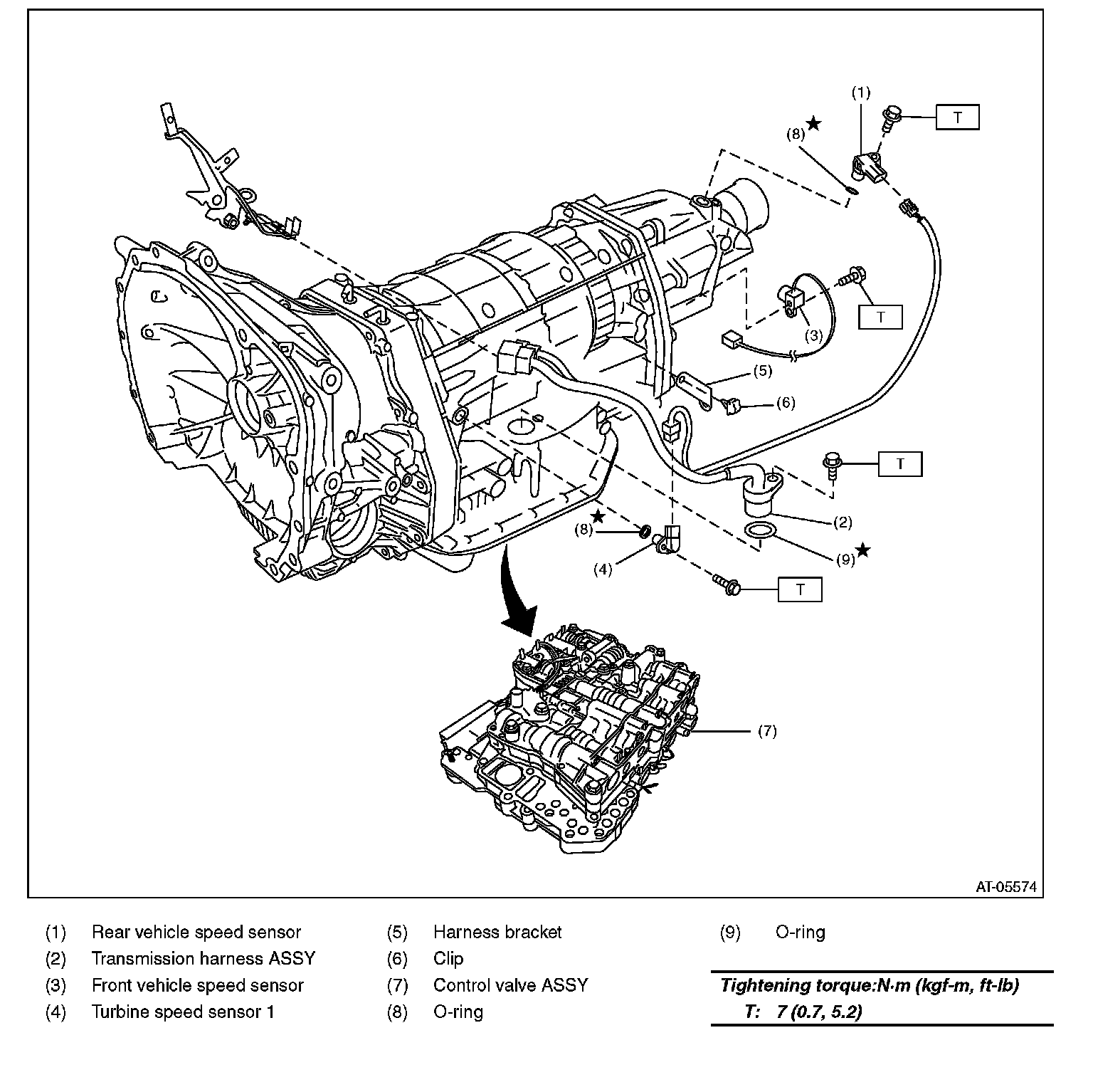

CONTROL VALVE & TRANSMISSION HARNESS
Control Valve and Transmission Harness Components:
