Home >> Subaru >> 2010 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Continuously Variable Transmission/Transaxle, CVT >> System Diagram >> Transfer and Extension Case

Transfer and Extension Case

TRANSFER AND EXTENSION CASE

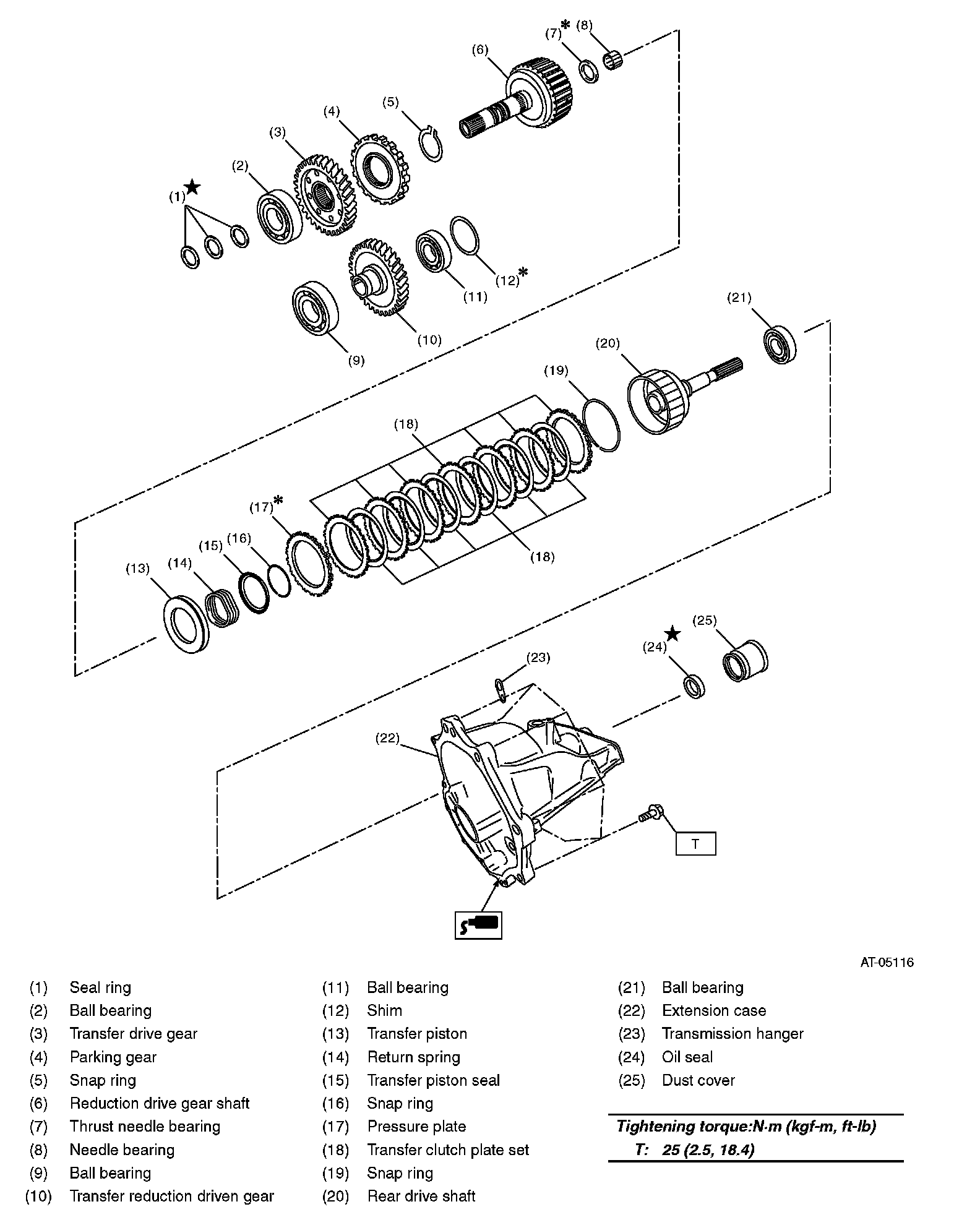

Transfer and Extension Case Components:
