Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
>>
Clutch Hydraulic System
>>
System Diagram
System Diagram

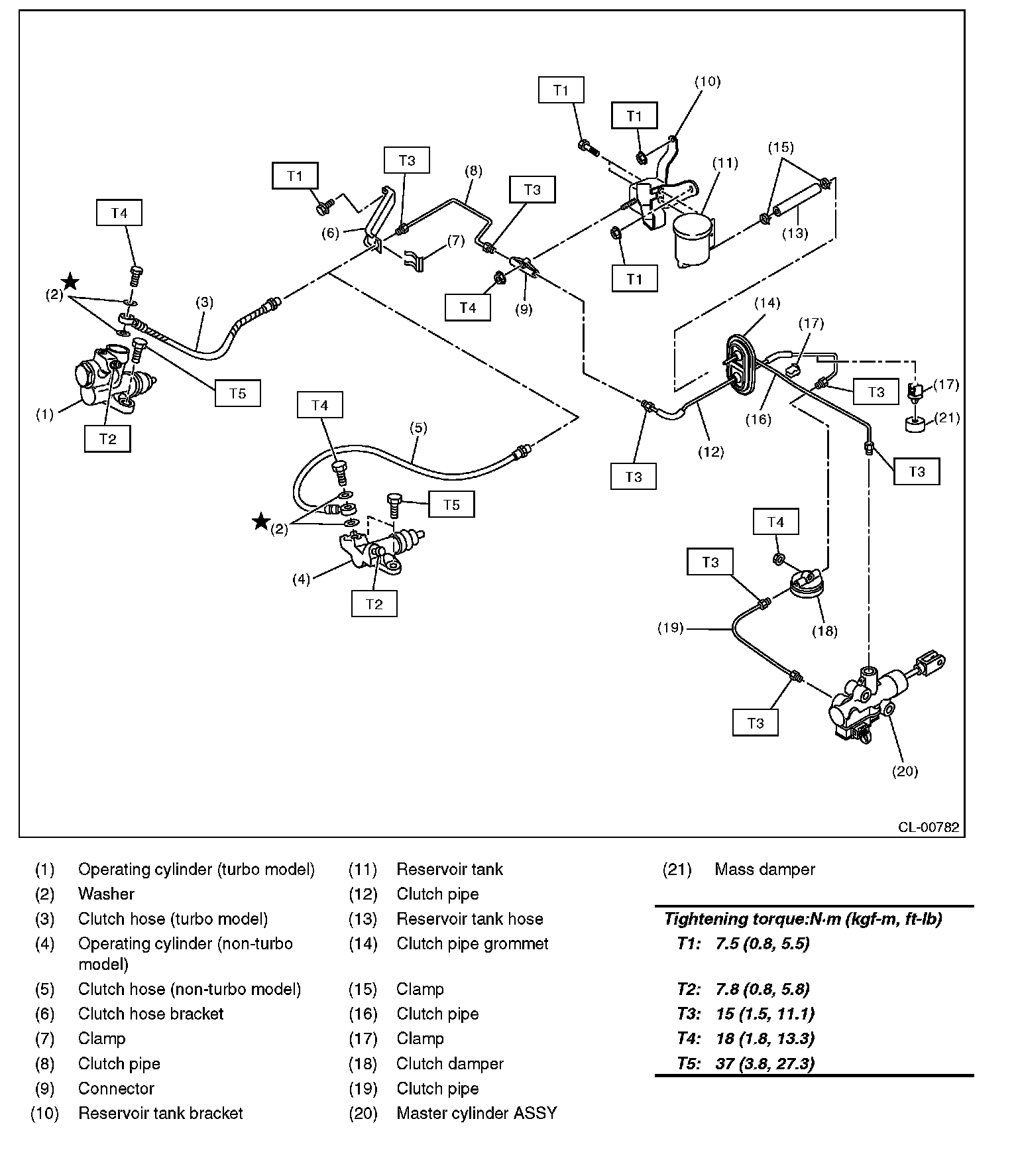

CLUTCH PIPE AND HOSE
Clutch Pipe and Hose Components:
