Pinout Values and Diagnostic Parameters

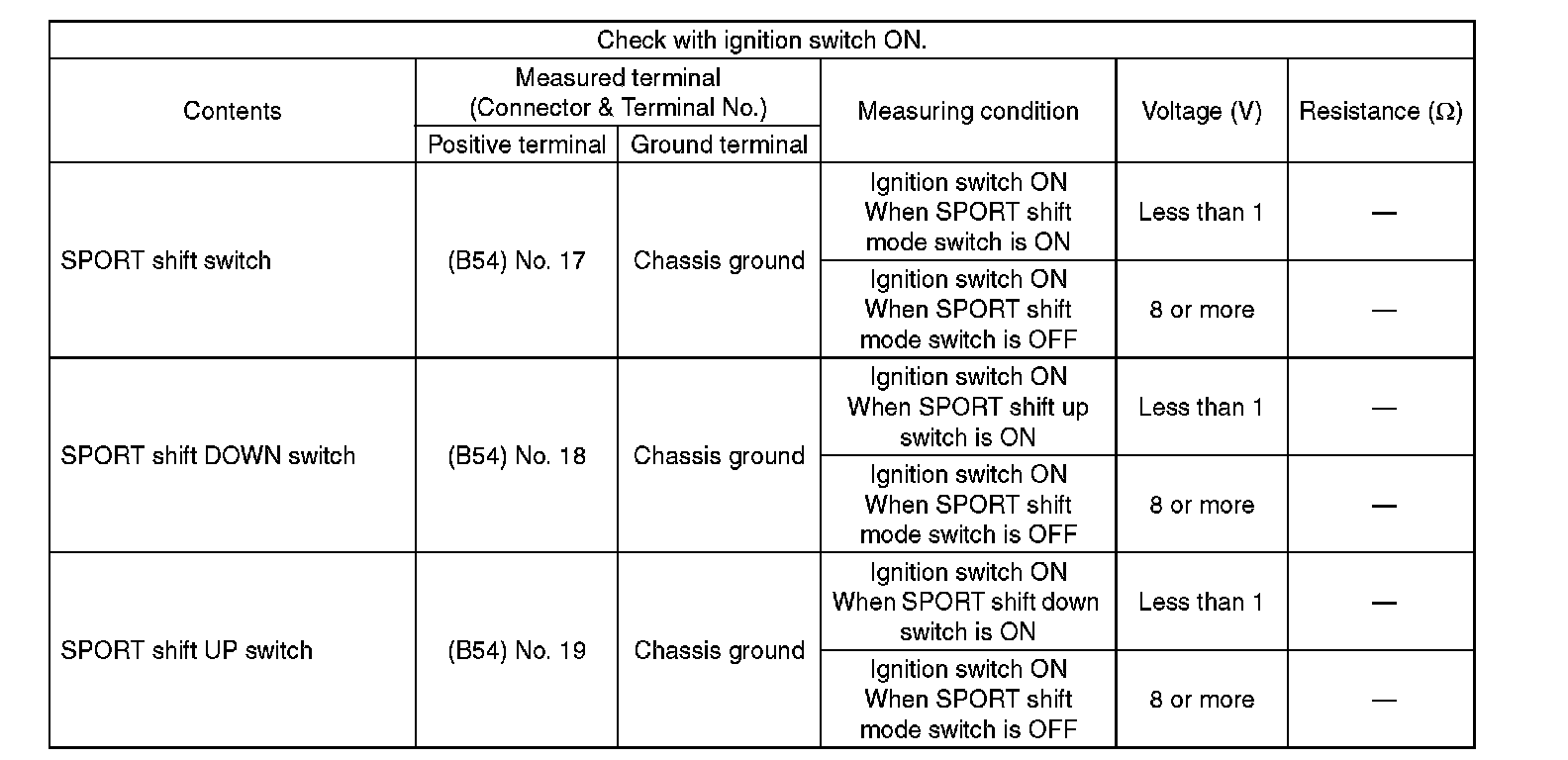

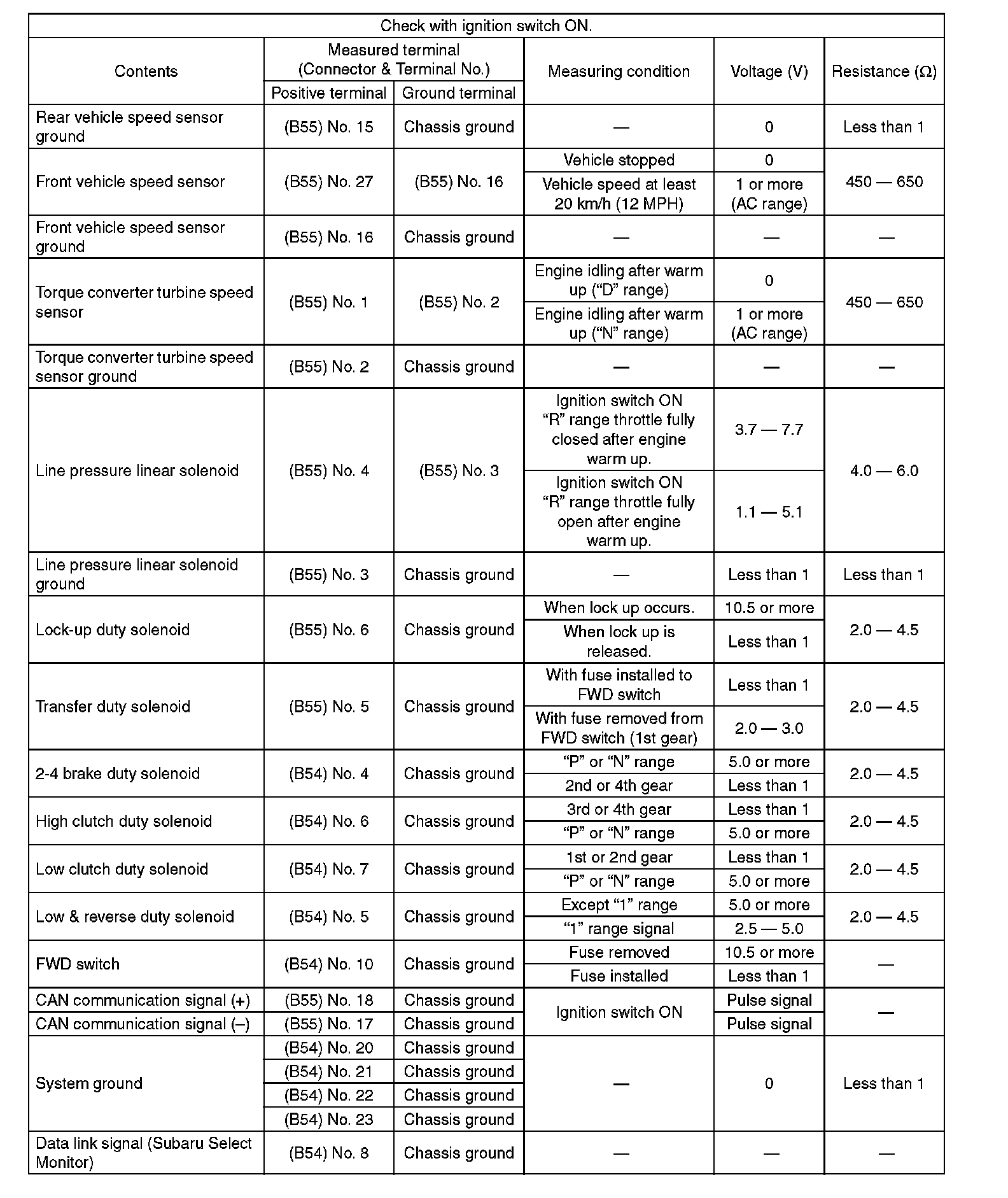

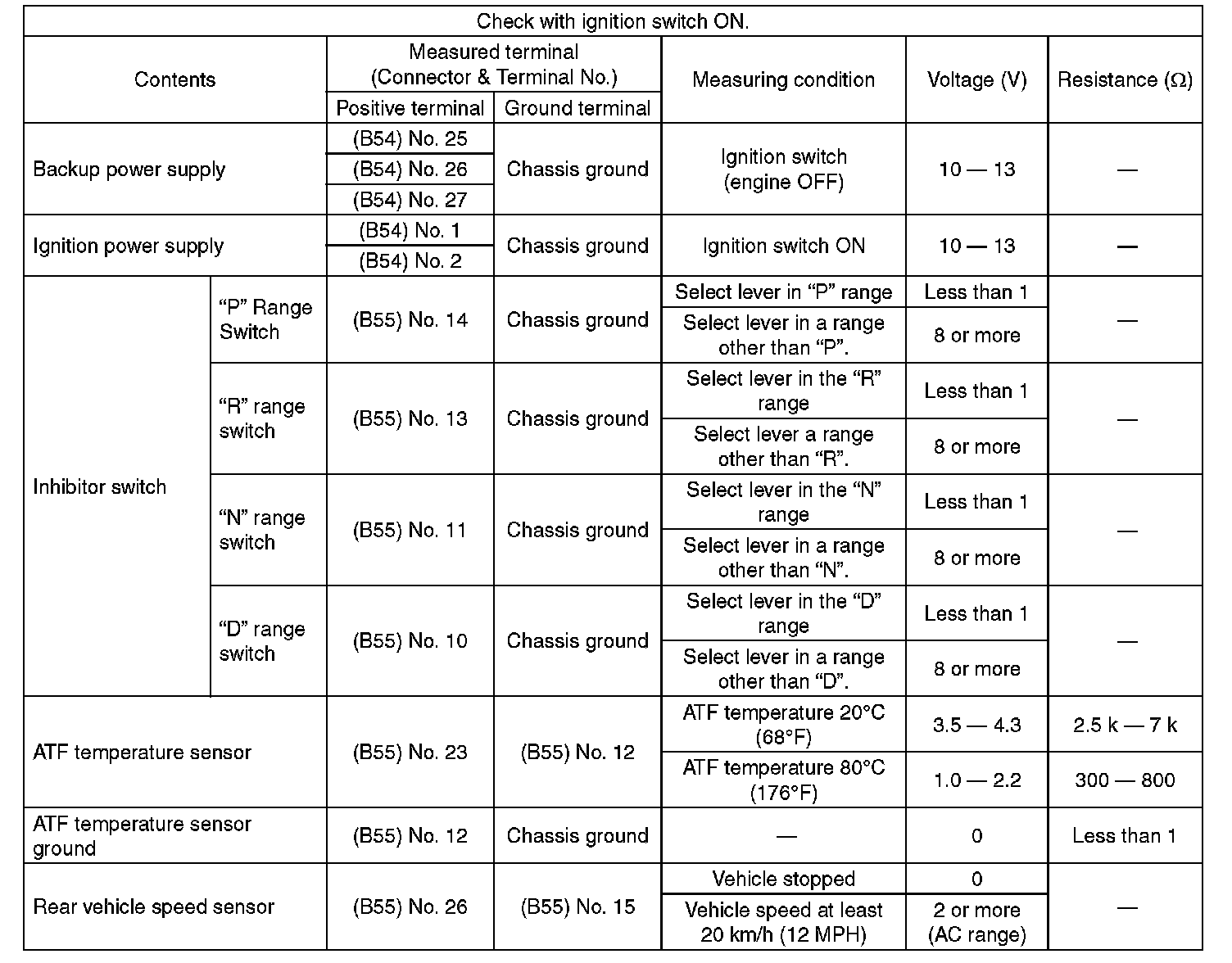

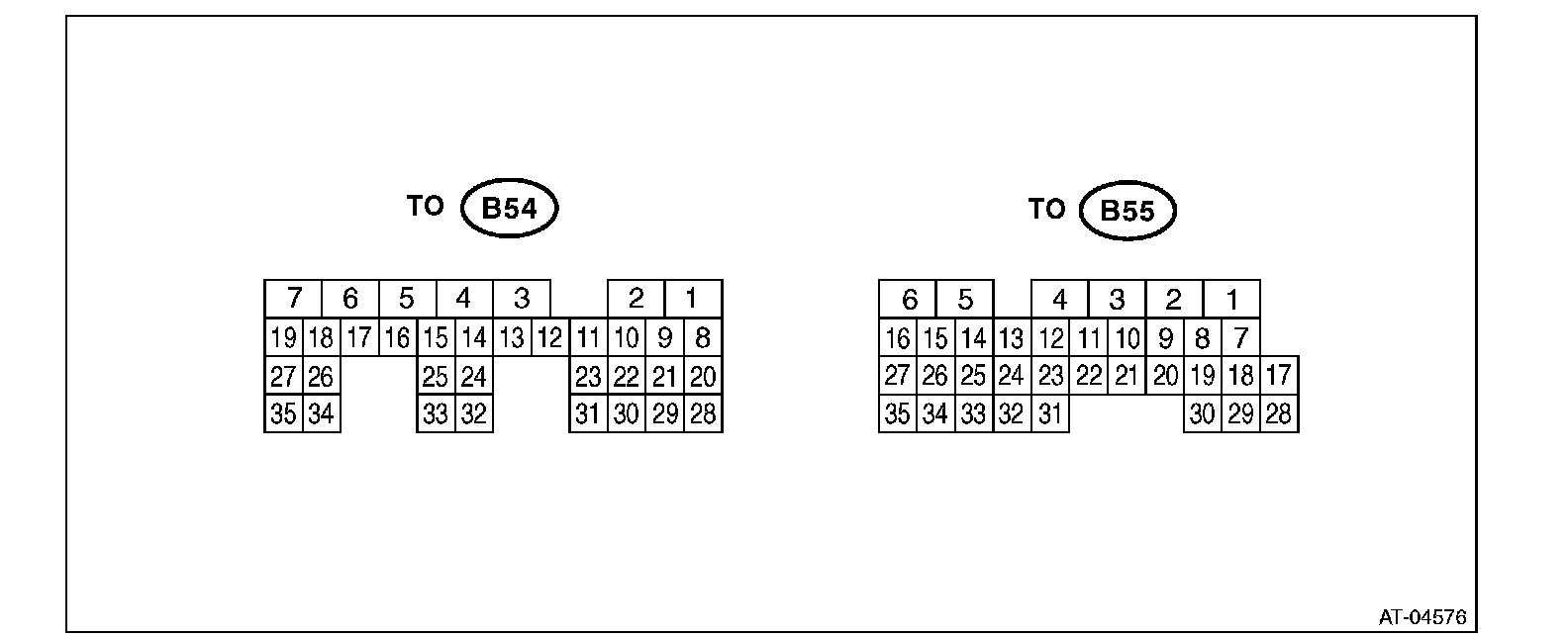

Transmission Control Module (TCM) I/O Signal
ELECTRICAL SPECIFICATION
