Home >> Subaru >> 2009 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Diagrams

Evaporative Emissions System: Diagrams

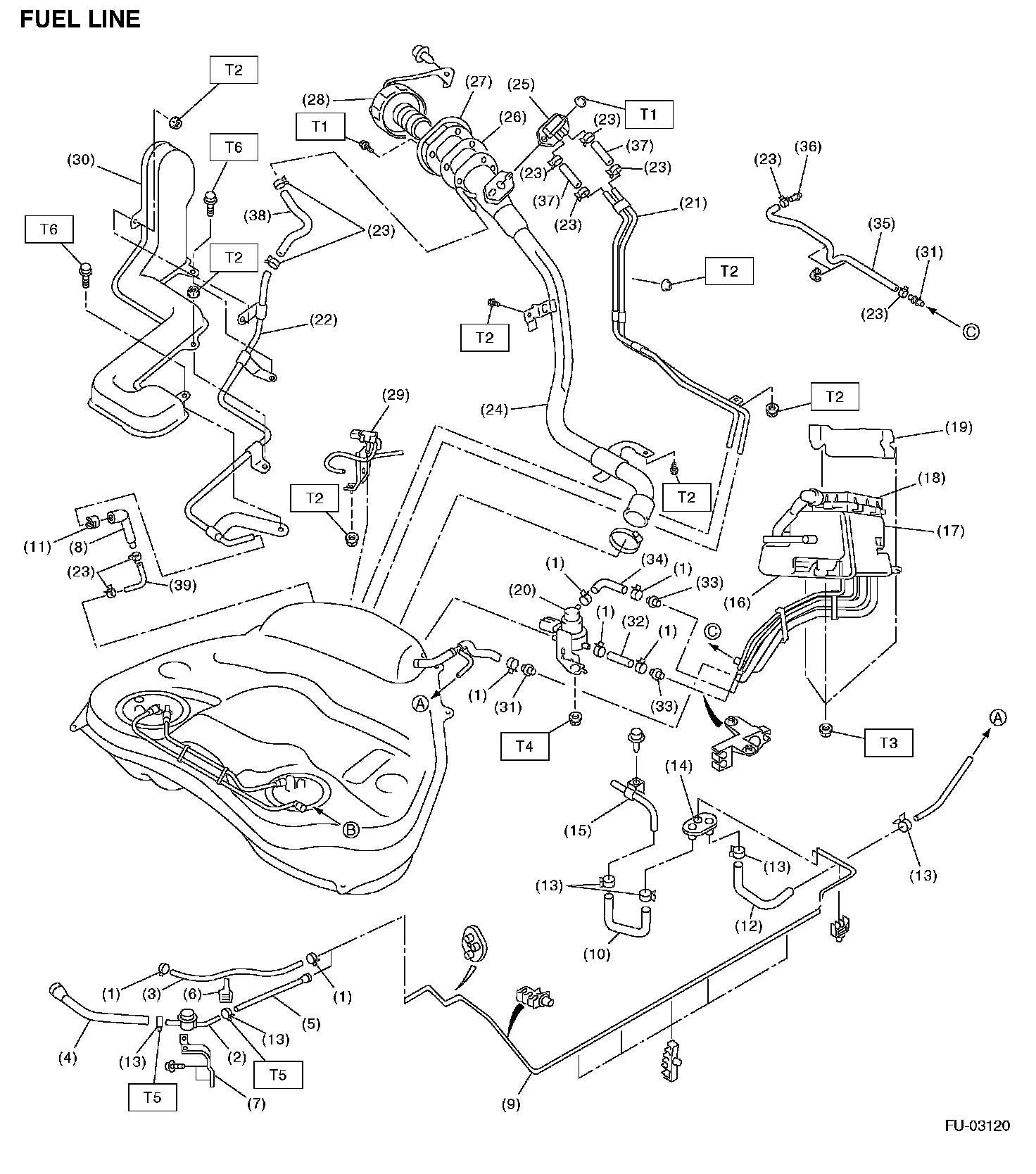

Part 1:



Part 2:
