Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Case and Control Device
Transmission Case and Control Device

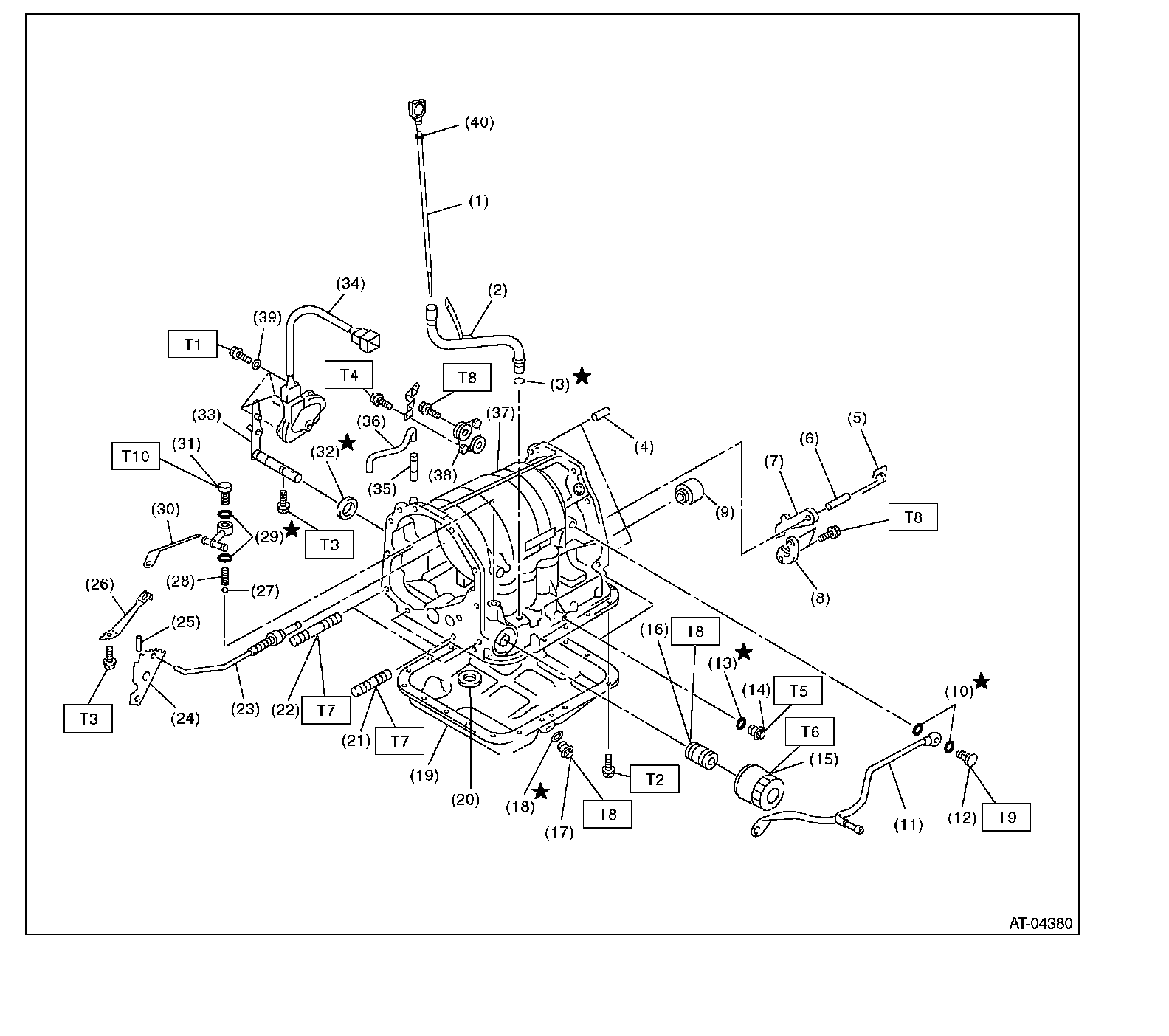

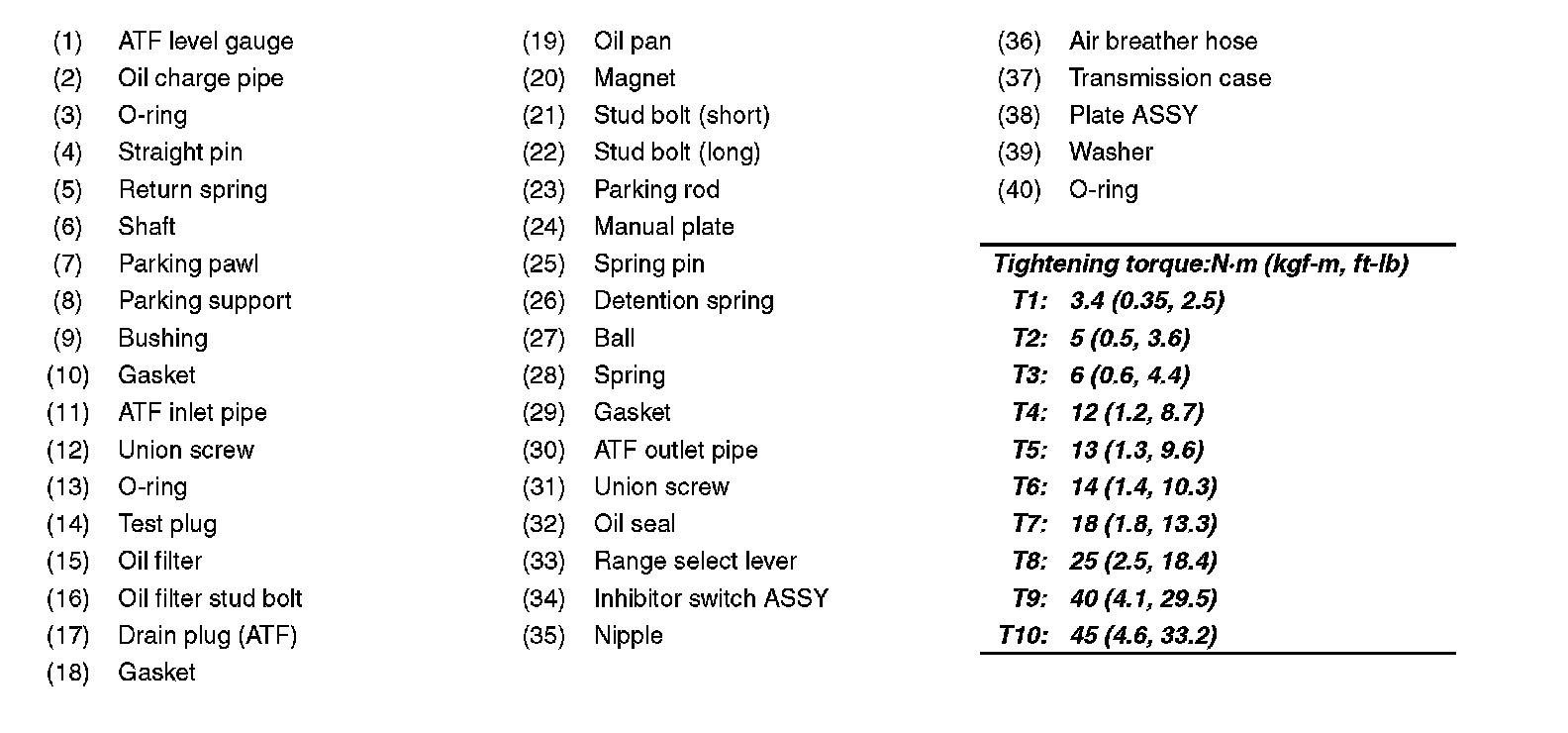

TRANSMISSION CASE AND CONTROL DEVICE:
