Fuel Tank
Fuel Tank

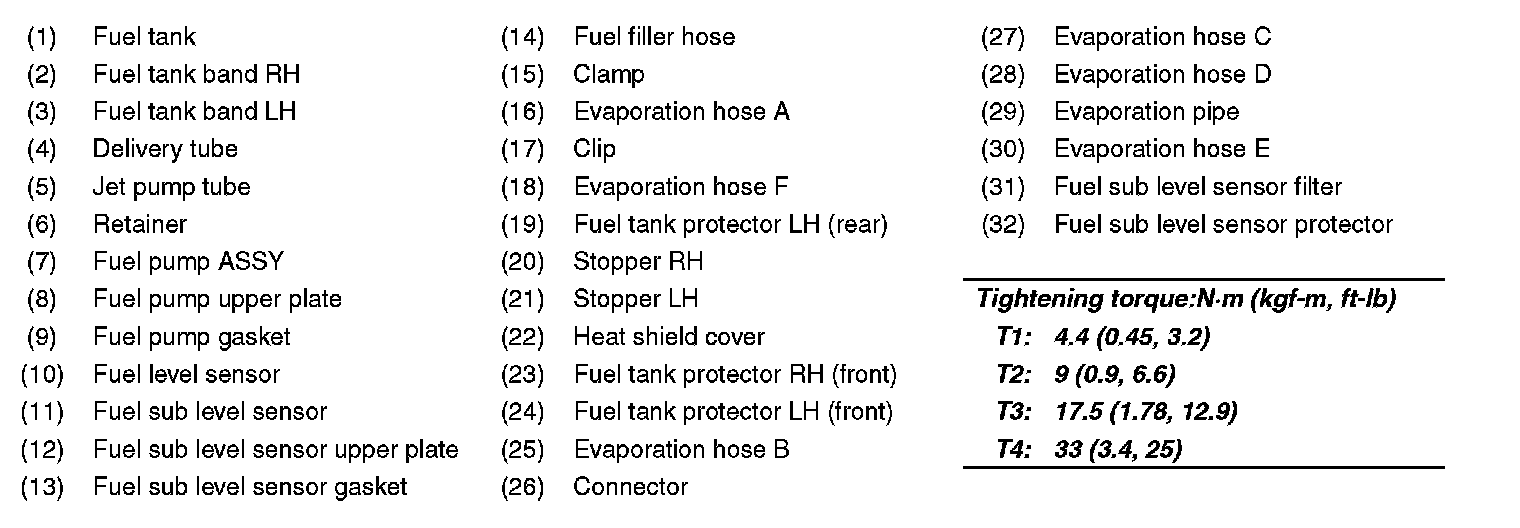

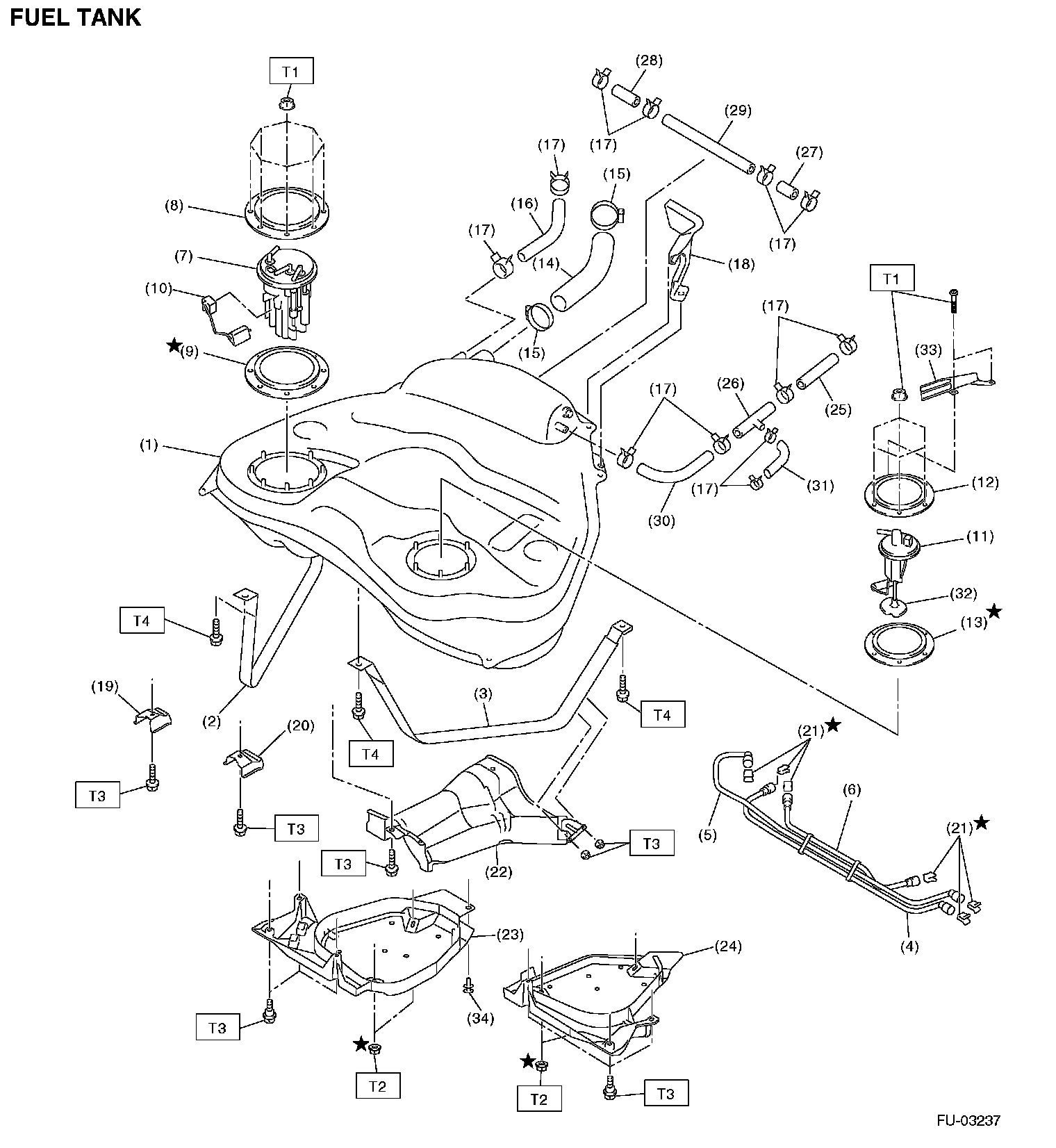

Fuel Tank (Part 1):

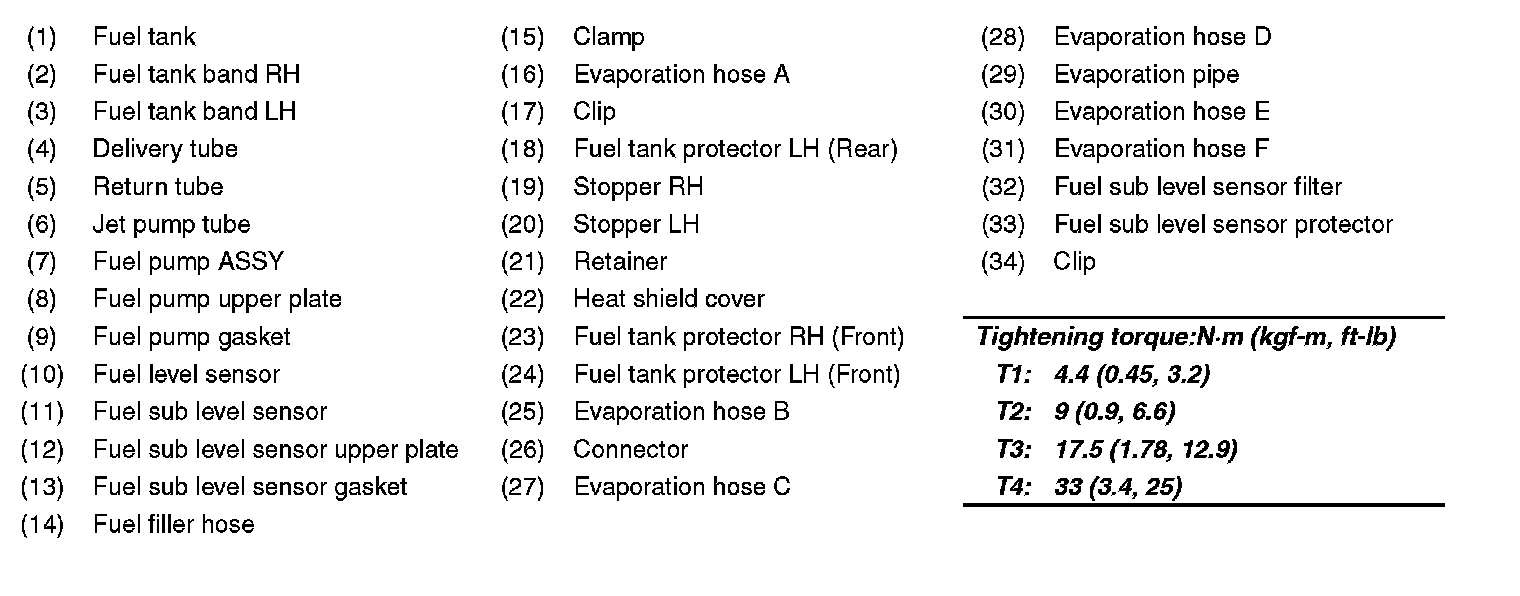

Fuel Tank (Part 2):

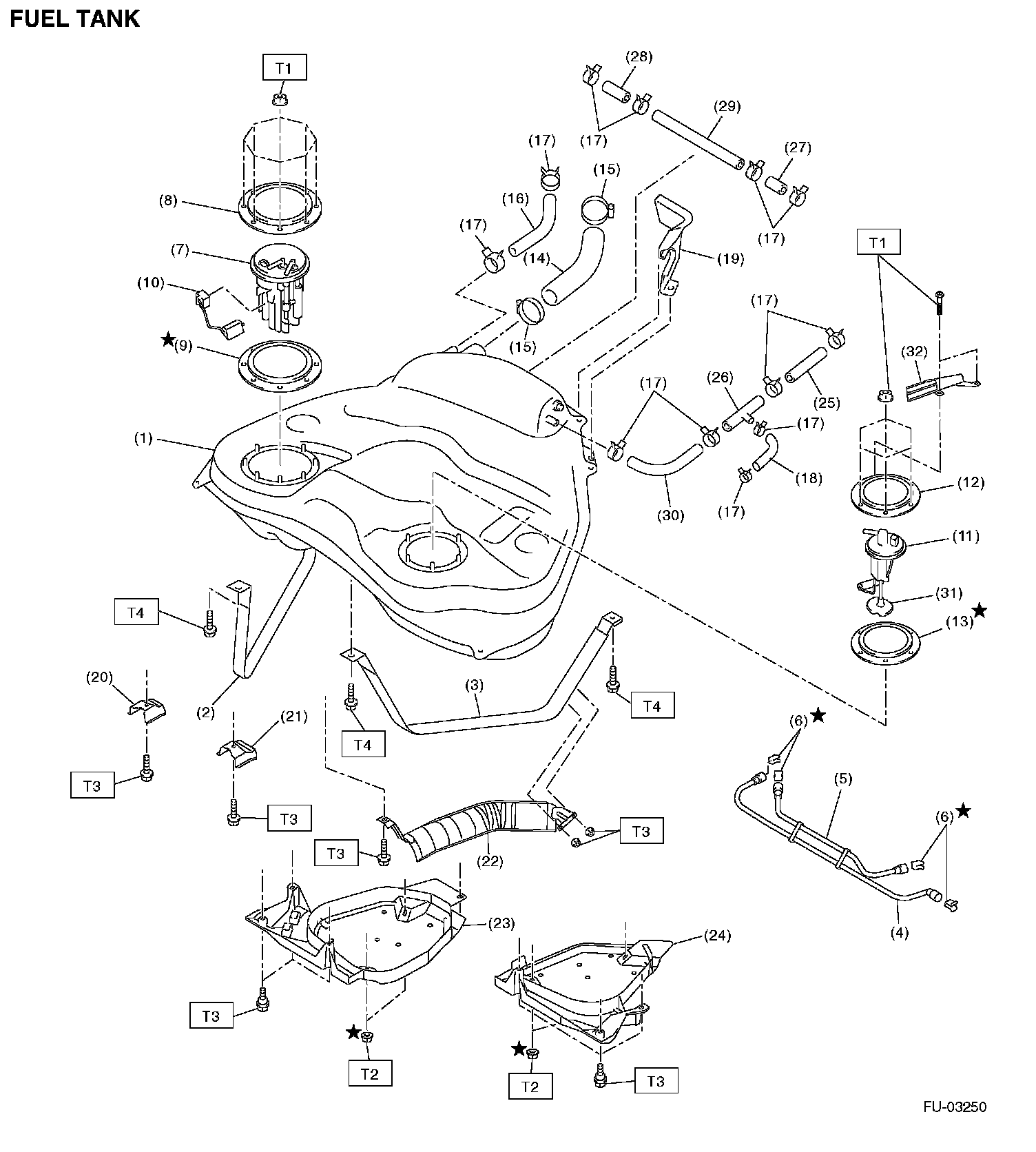

Fuel Tank (Part 1):
Fuel Tank (Part 2):

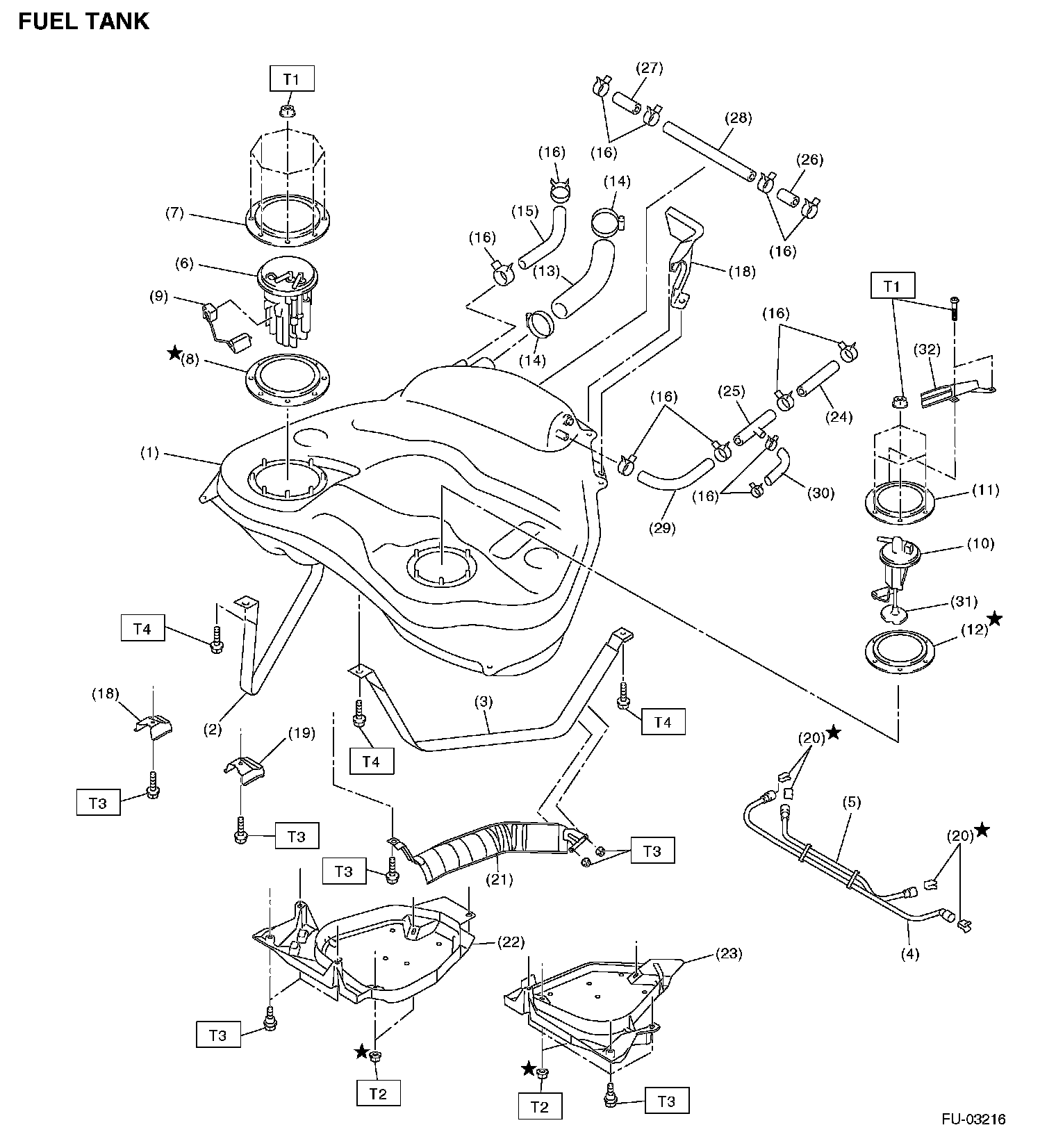

Fuel Tank (Part 1):
Fuel Tank (Part 2):
