Electrical Diagrams

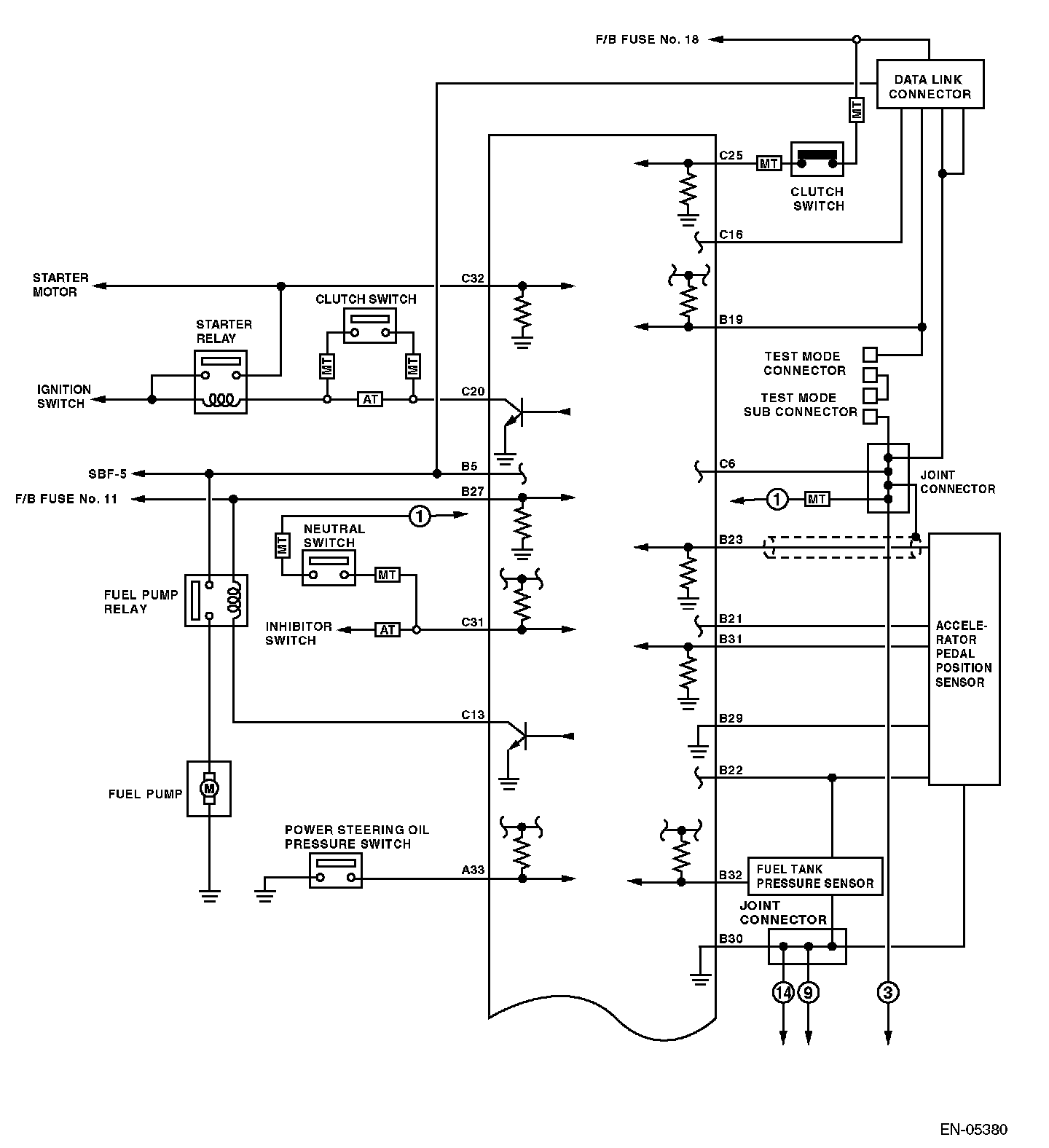

Engine Control Module (ECM) I/O Signal:

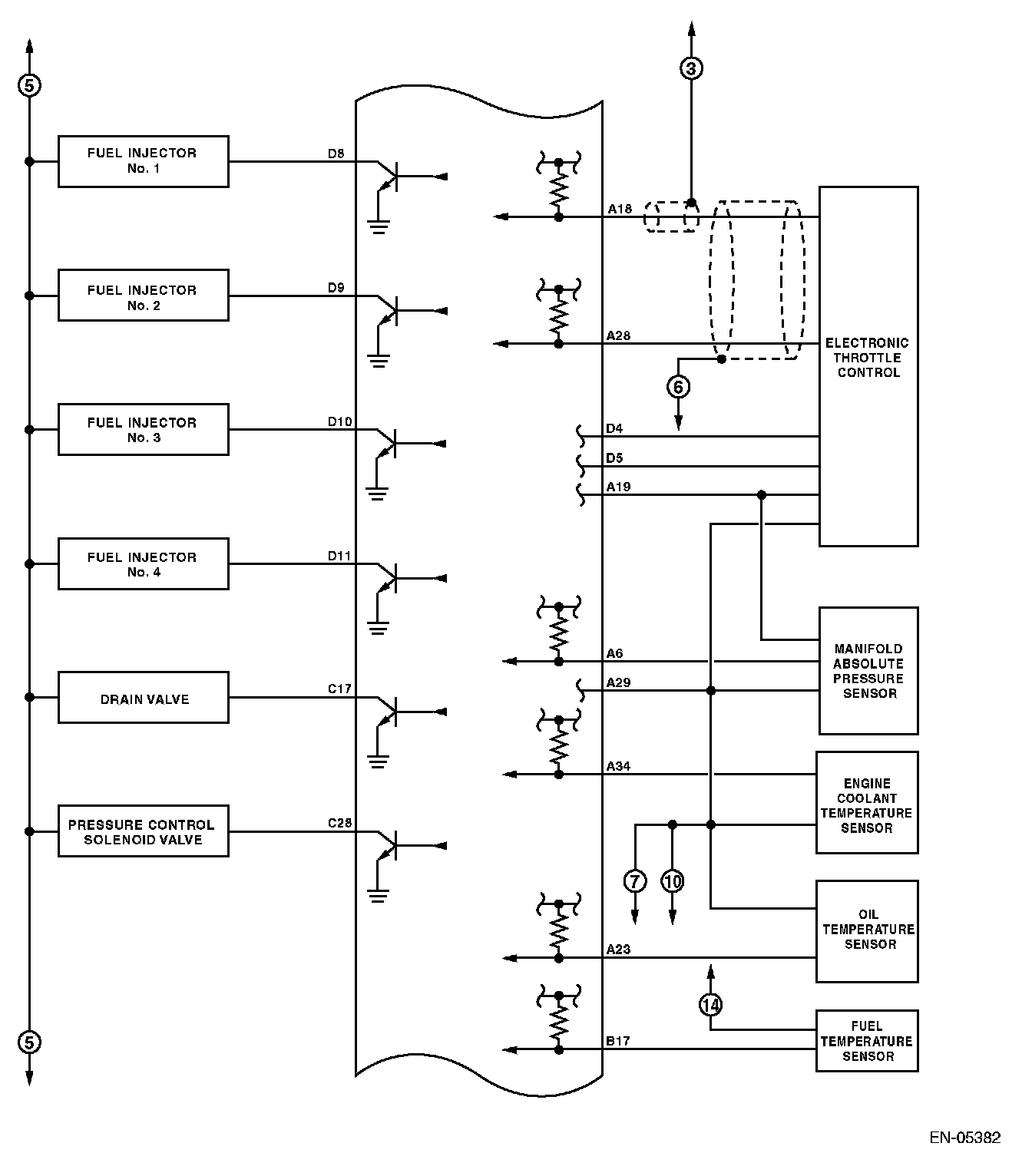

Engine Control Module (ECM) I/O Signal:

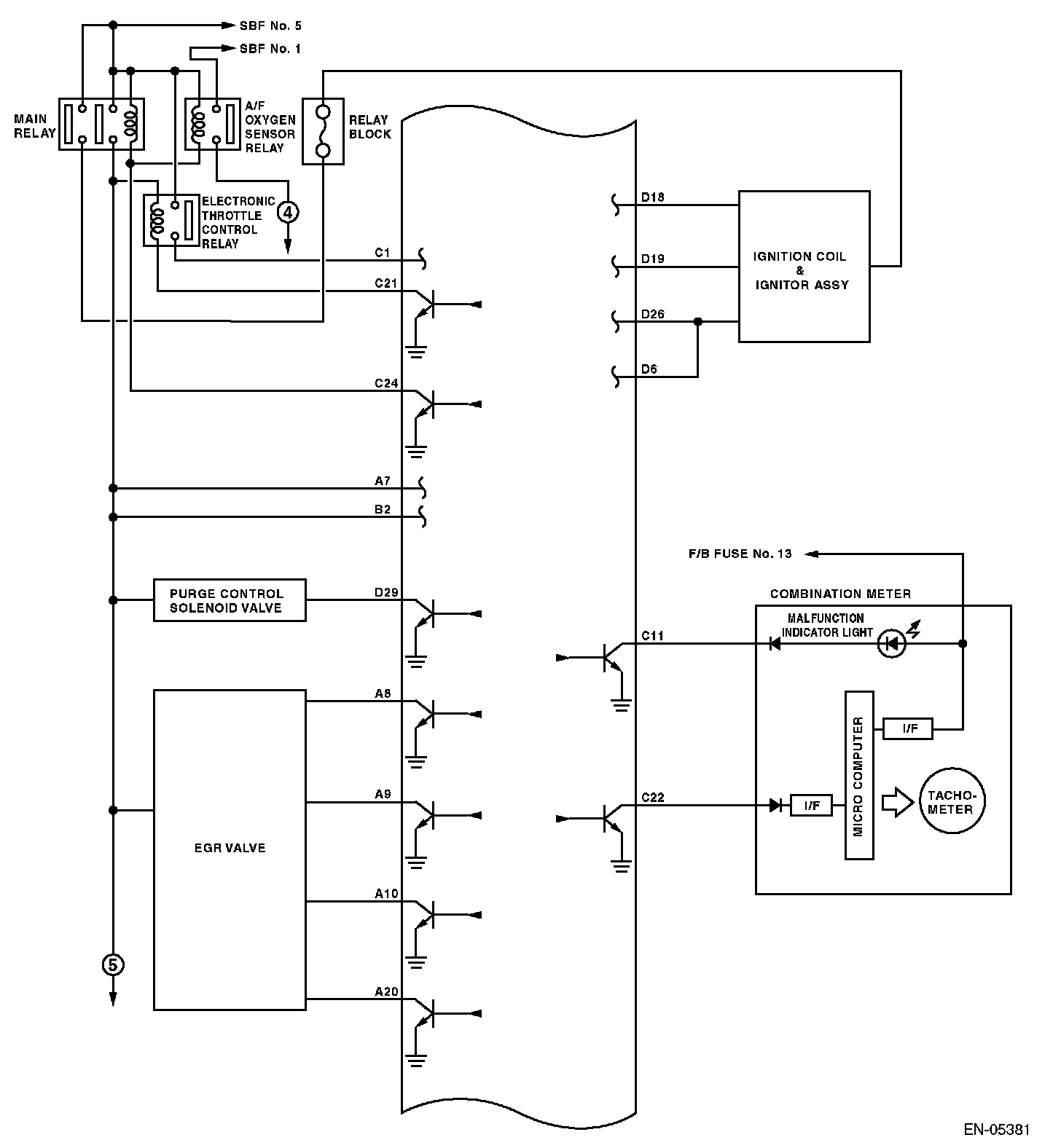

Engine Control Module (ECM) I/O Signal:

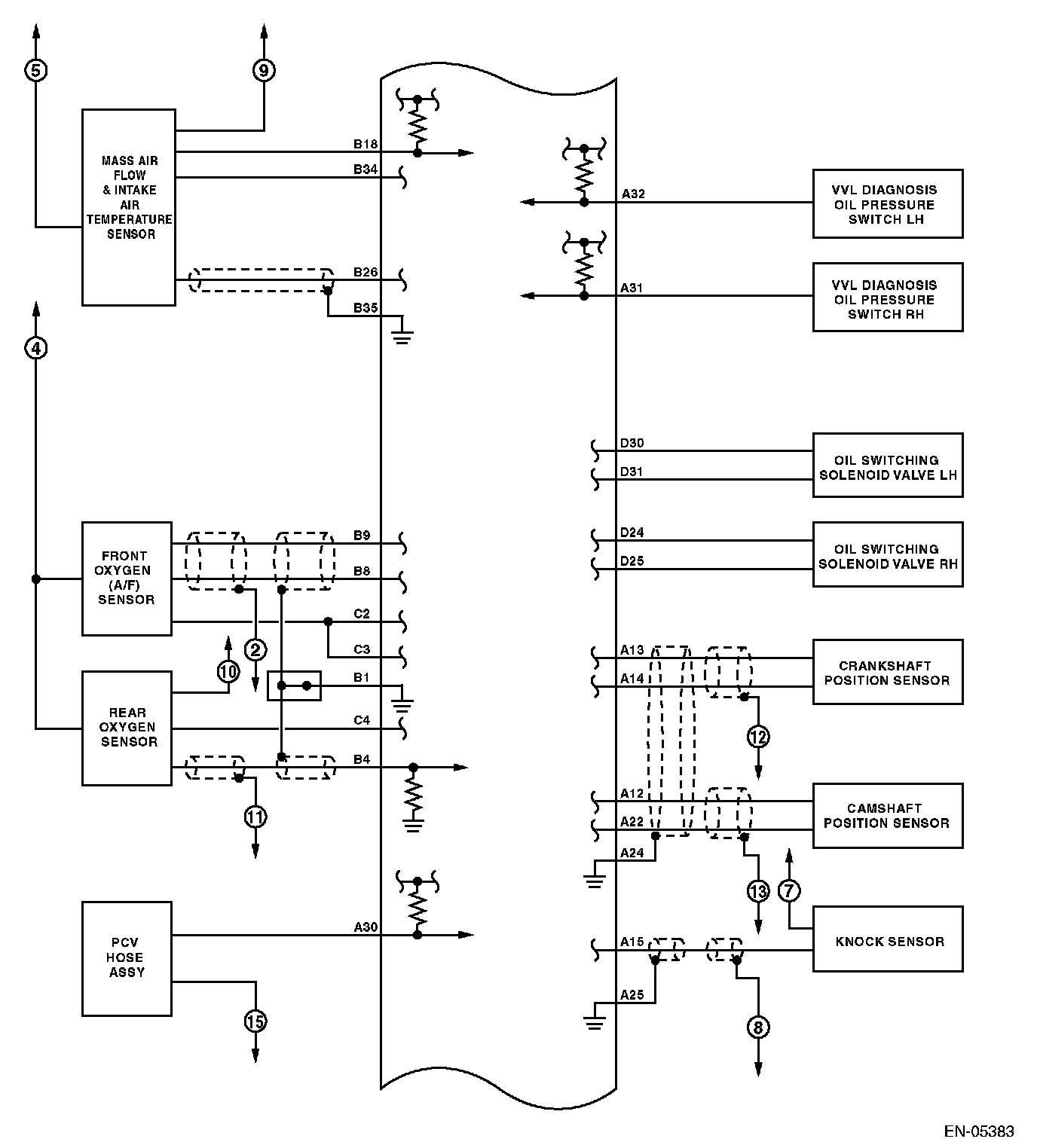

Engine Control Module (ECM) I/O Signal:

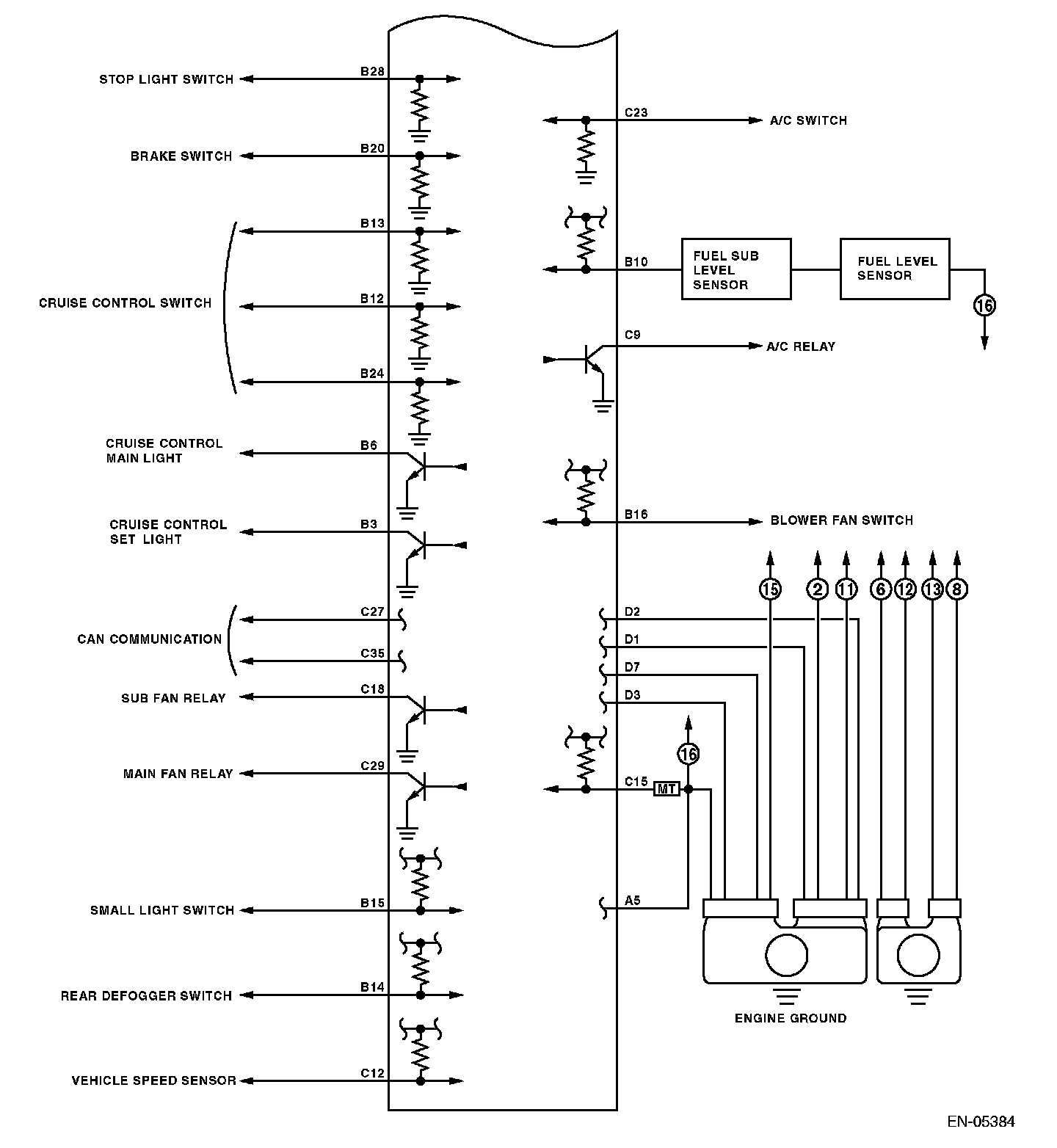

Engine Control Module (ECM) I/O Signal:
