Cylinder Head and Valve Assembly
Cylinder Head and Valve Assembly

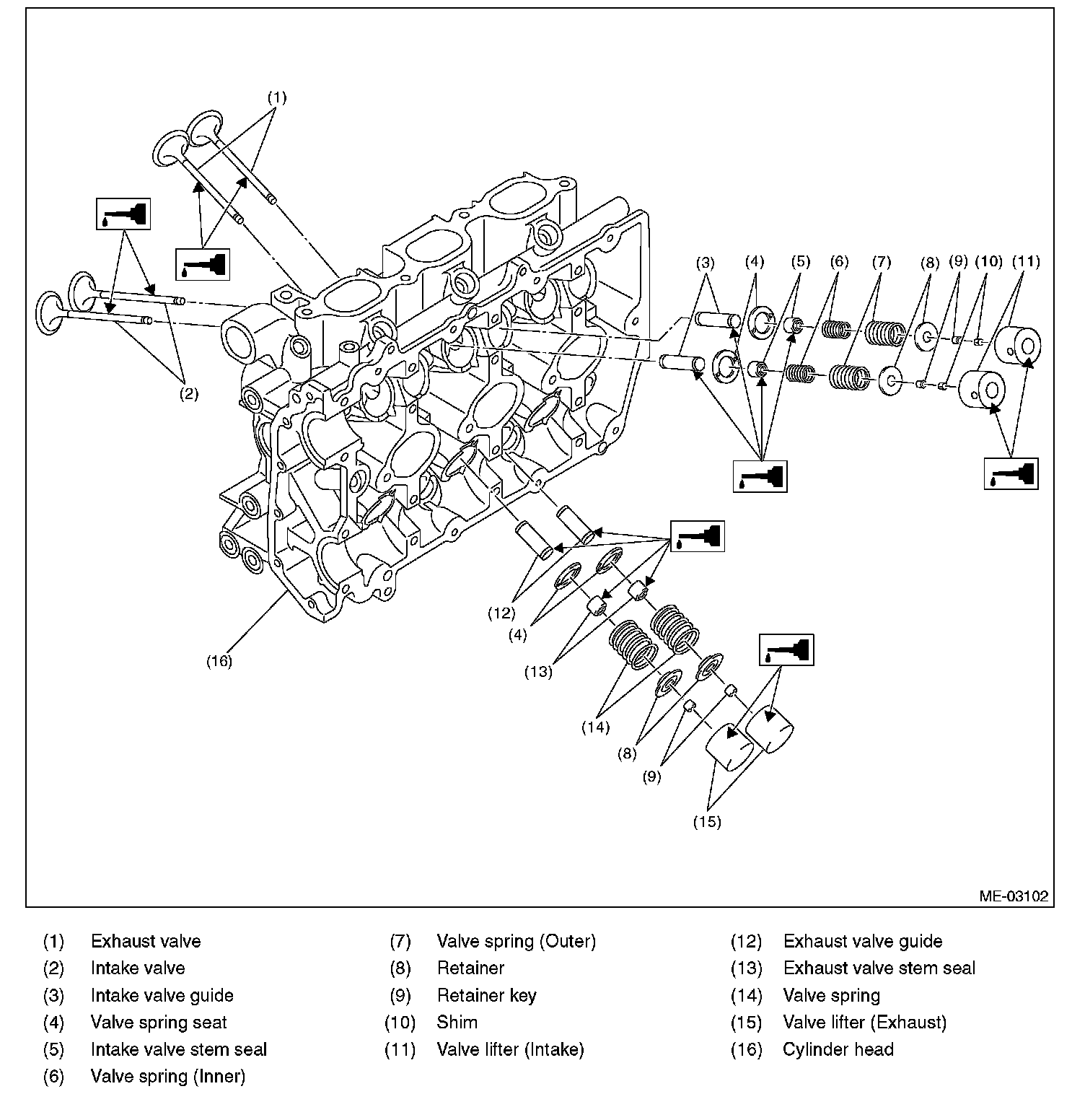

CYLINDER HEAD AND VALVE ASSEMBLY
CYLINDER HEAD AND VALVE ASSEMBLY:
