Home
>>
Subaru
>>
2007
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Extension Case and Center Differential
Extension Case and Center Differential

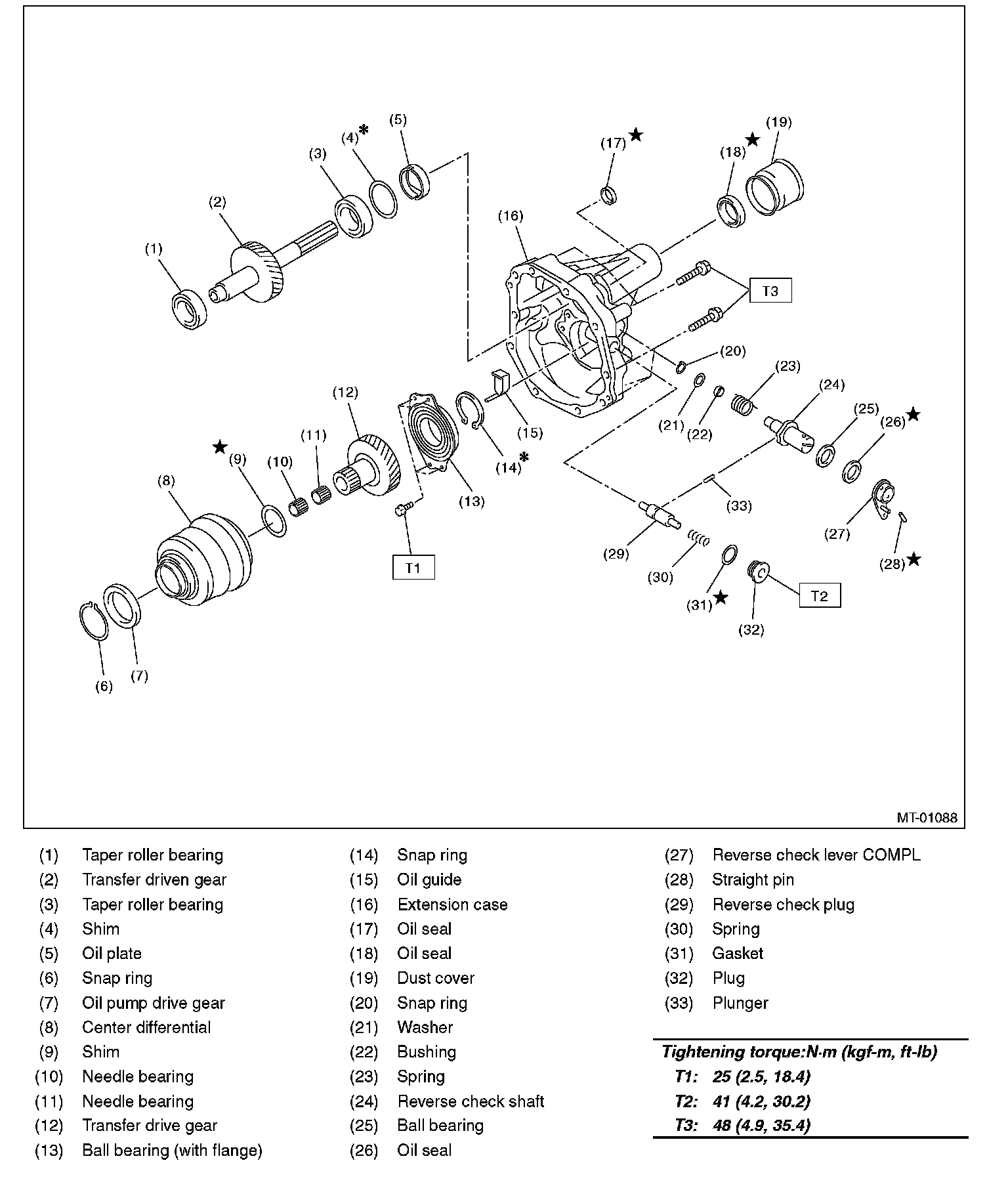

EXTENSION CASE AND CENTER DIFFERENTIAL:
