Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Subaru
>>
2007
>>
Outback F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Reverse Idler Gear Assembly
Reverse Idler Gear Assembly

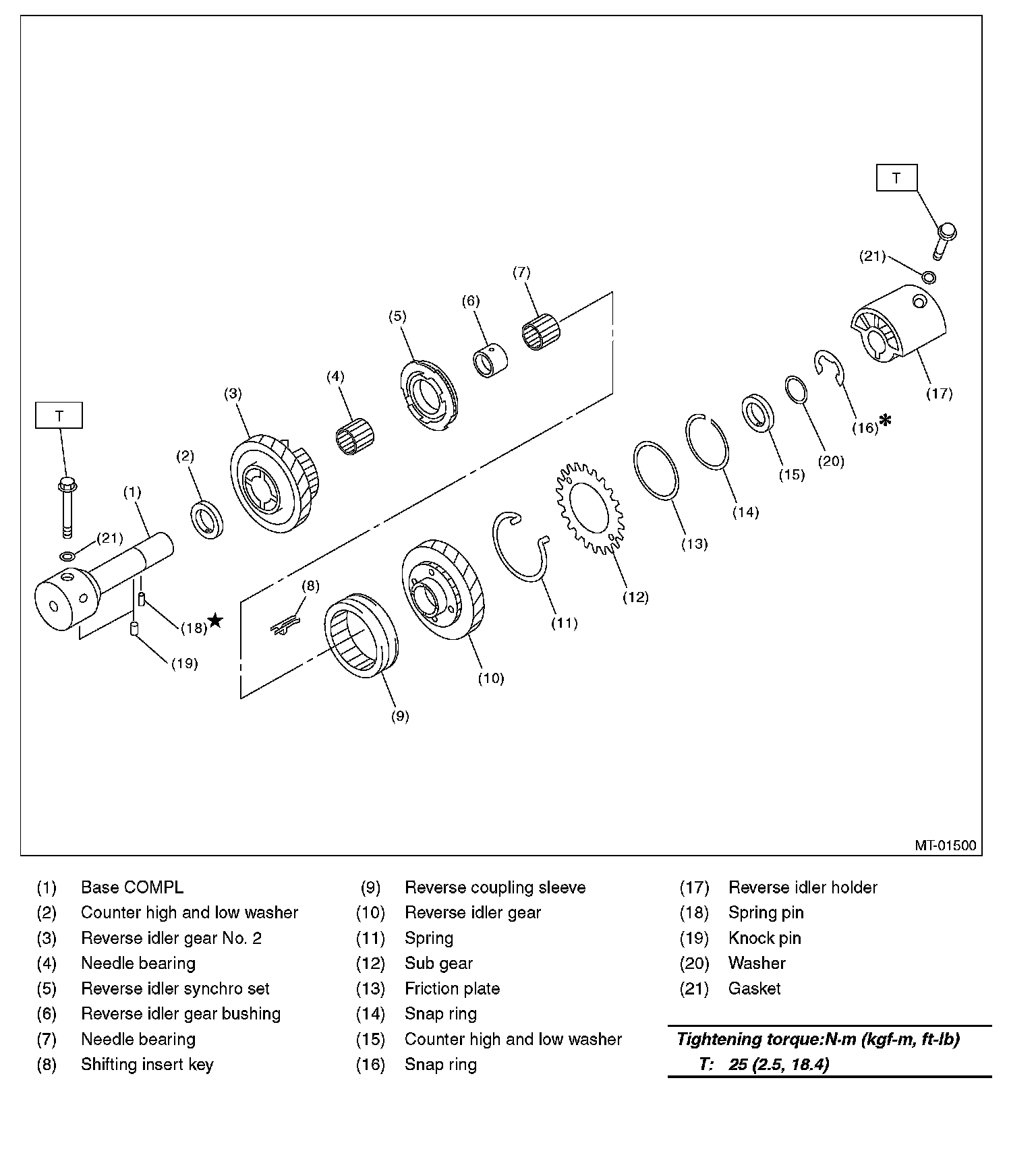

REVERSE IDLER GEAR ASSEMBLY:
