Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

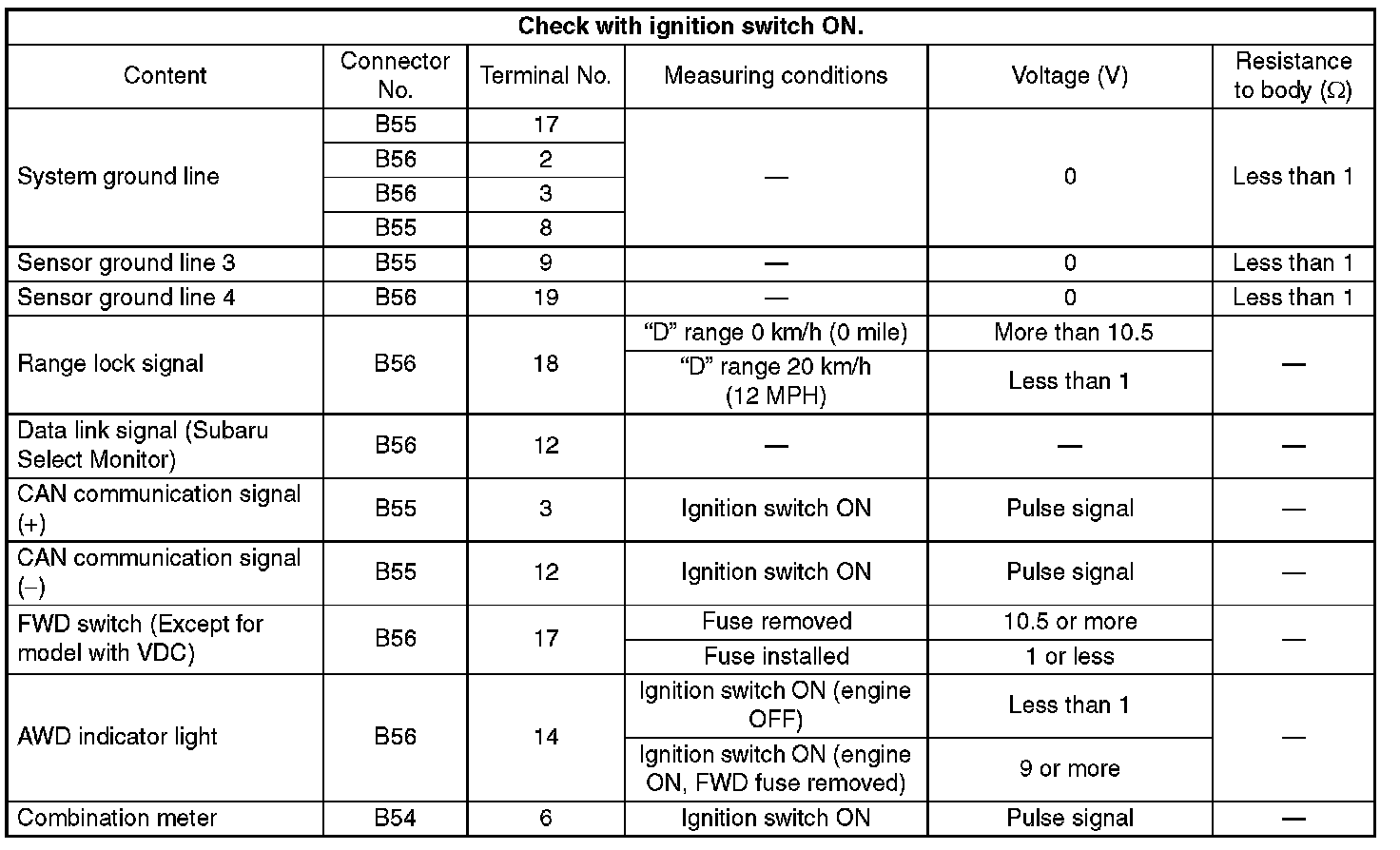

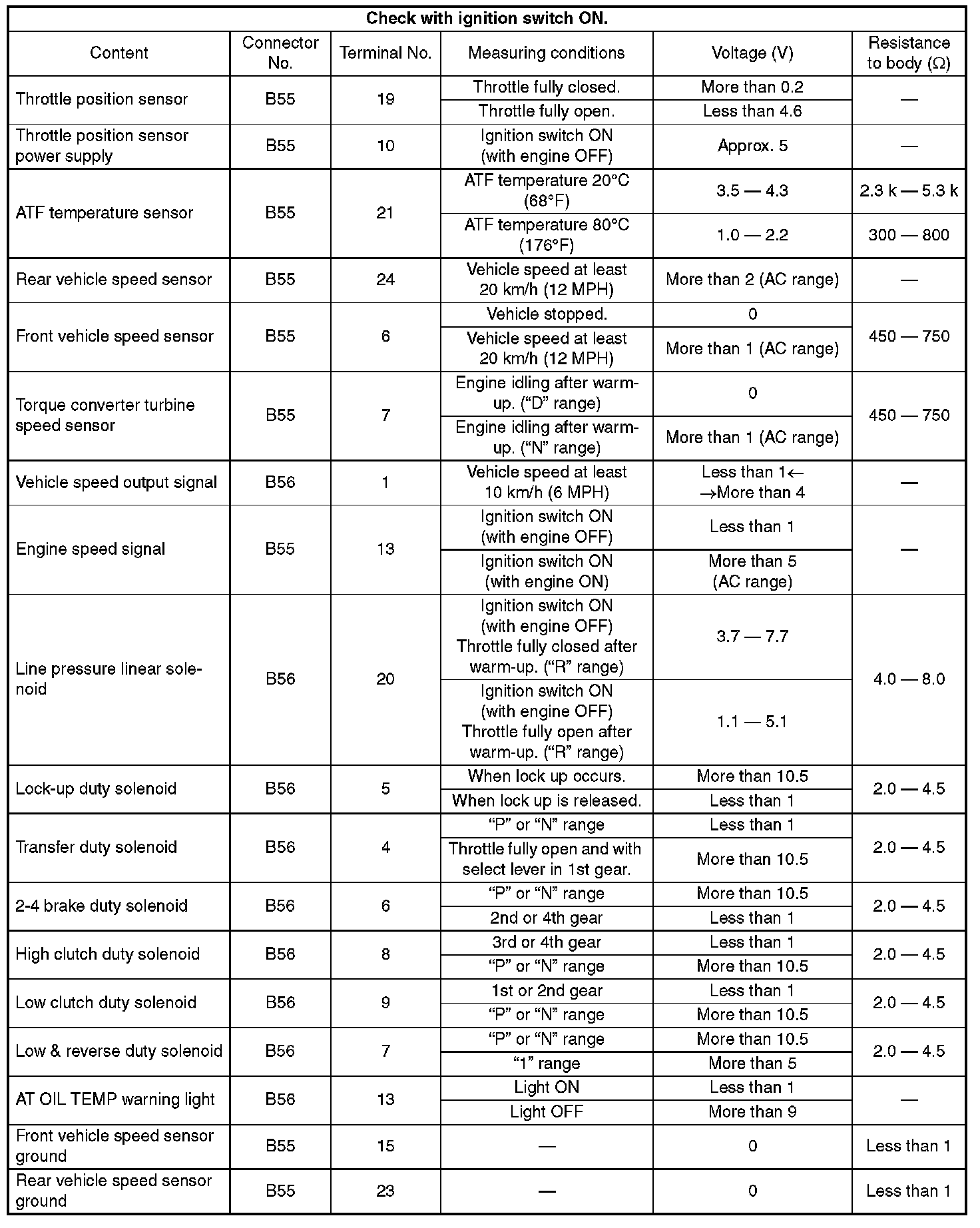

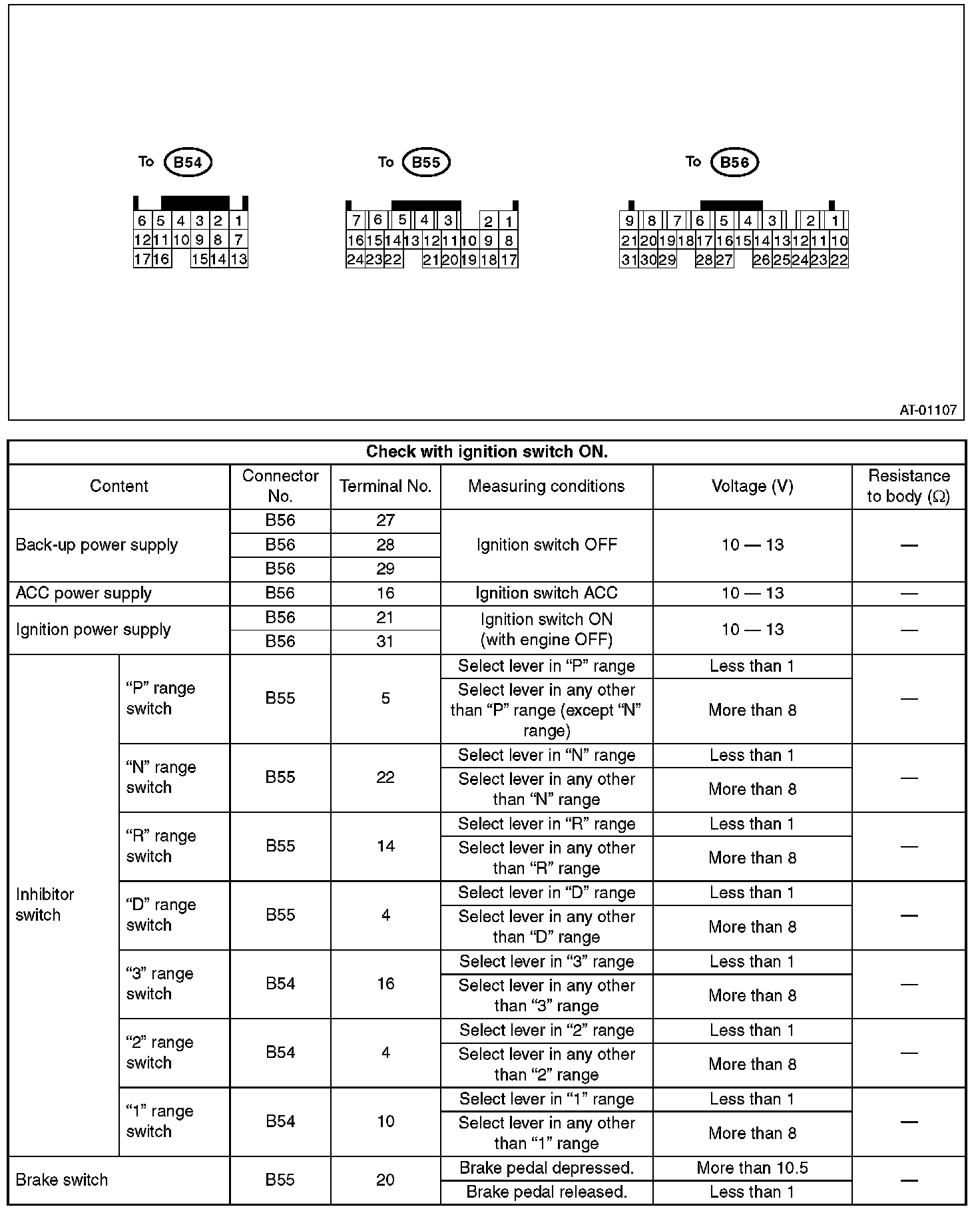

ELECTRICAL SPECIFICATION
