Home
>>
Subaru
>>
2005
>>
Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transfer and Extension Case
Transfer and Extension Case
^

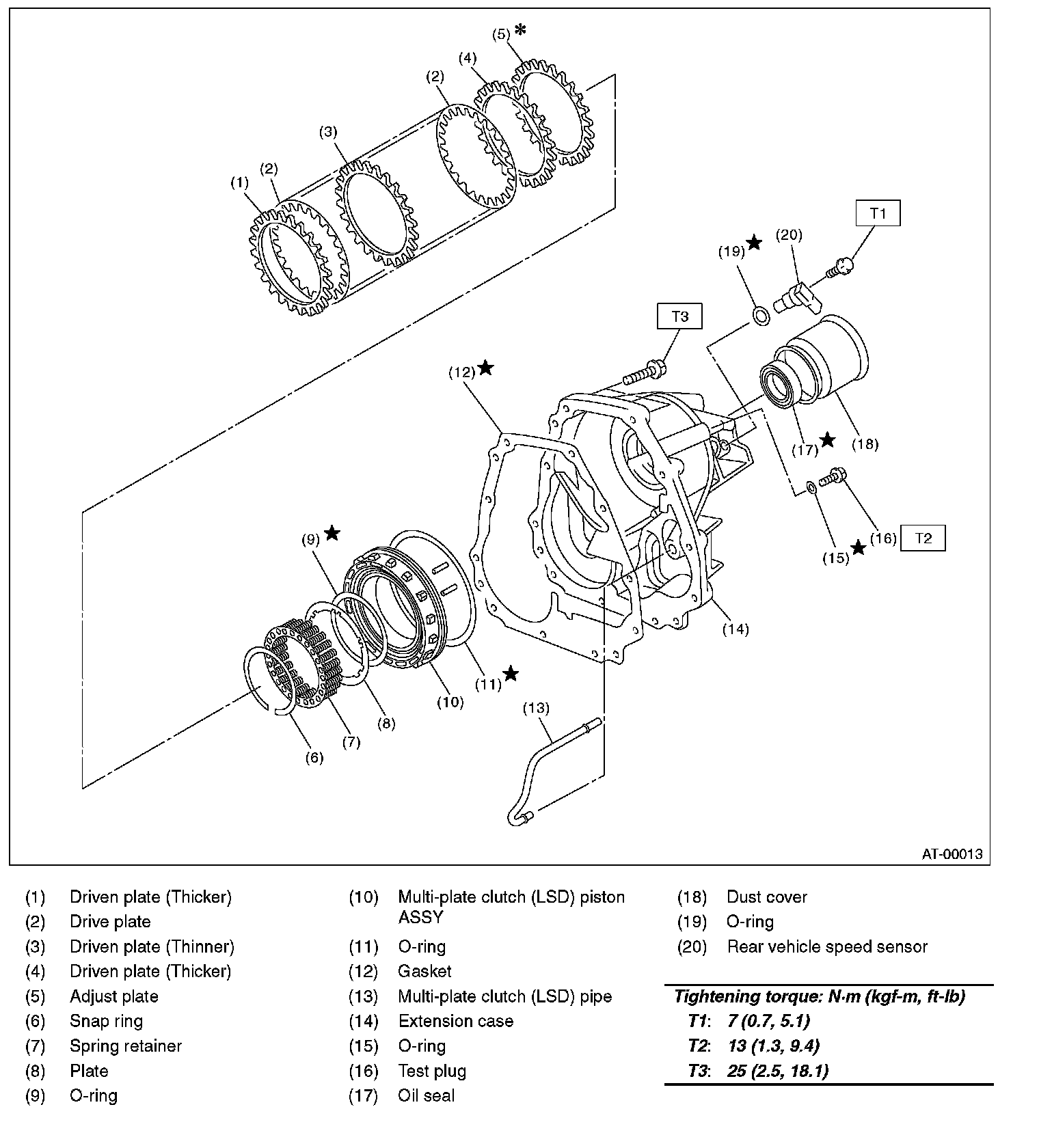

MPT model
^

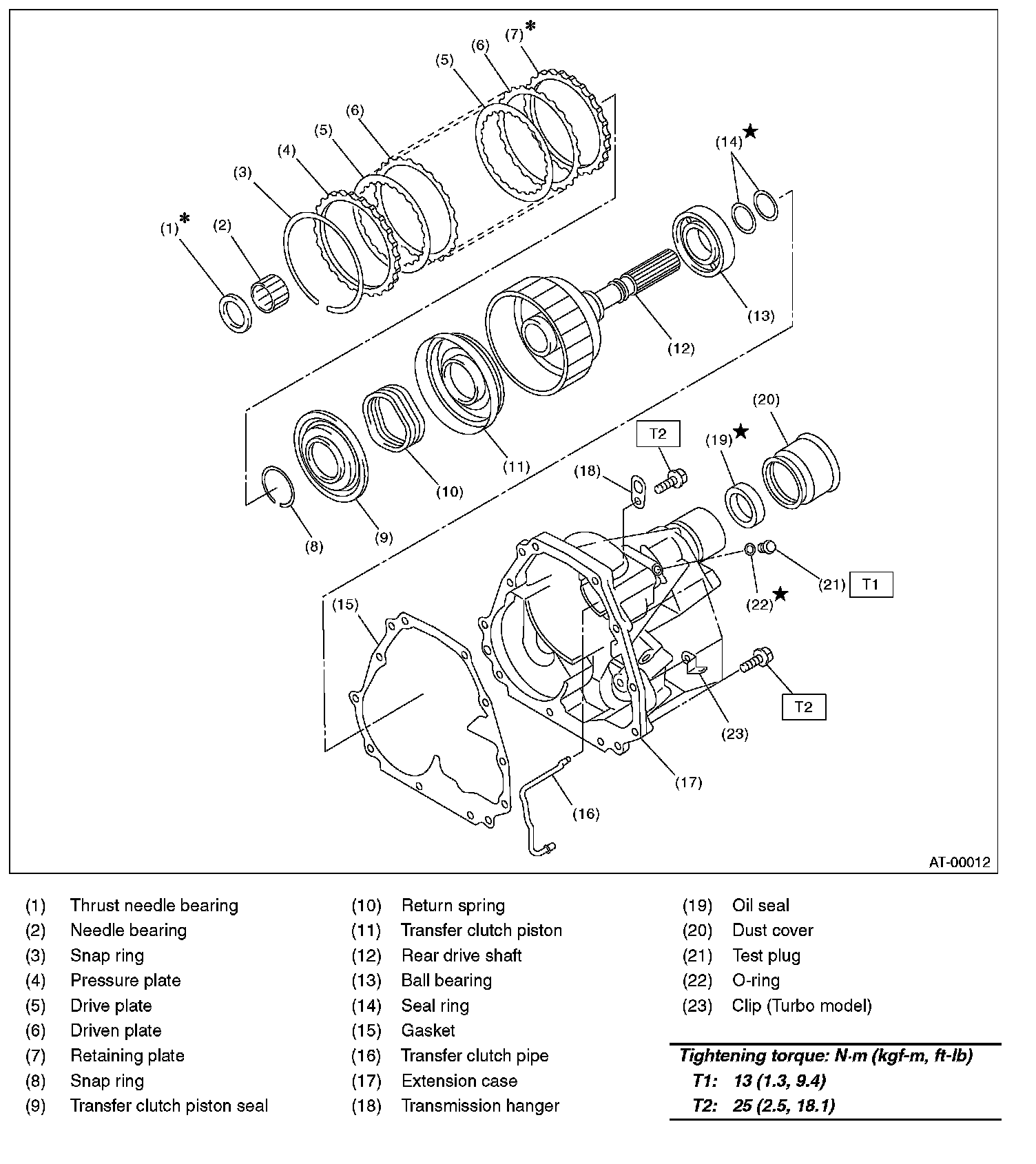

VTD model
