Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Reduction Gear
Reduction Gear
^

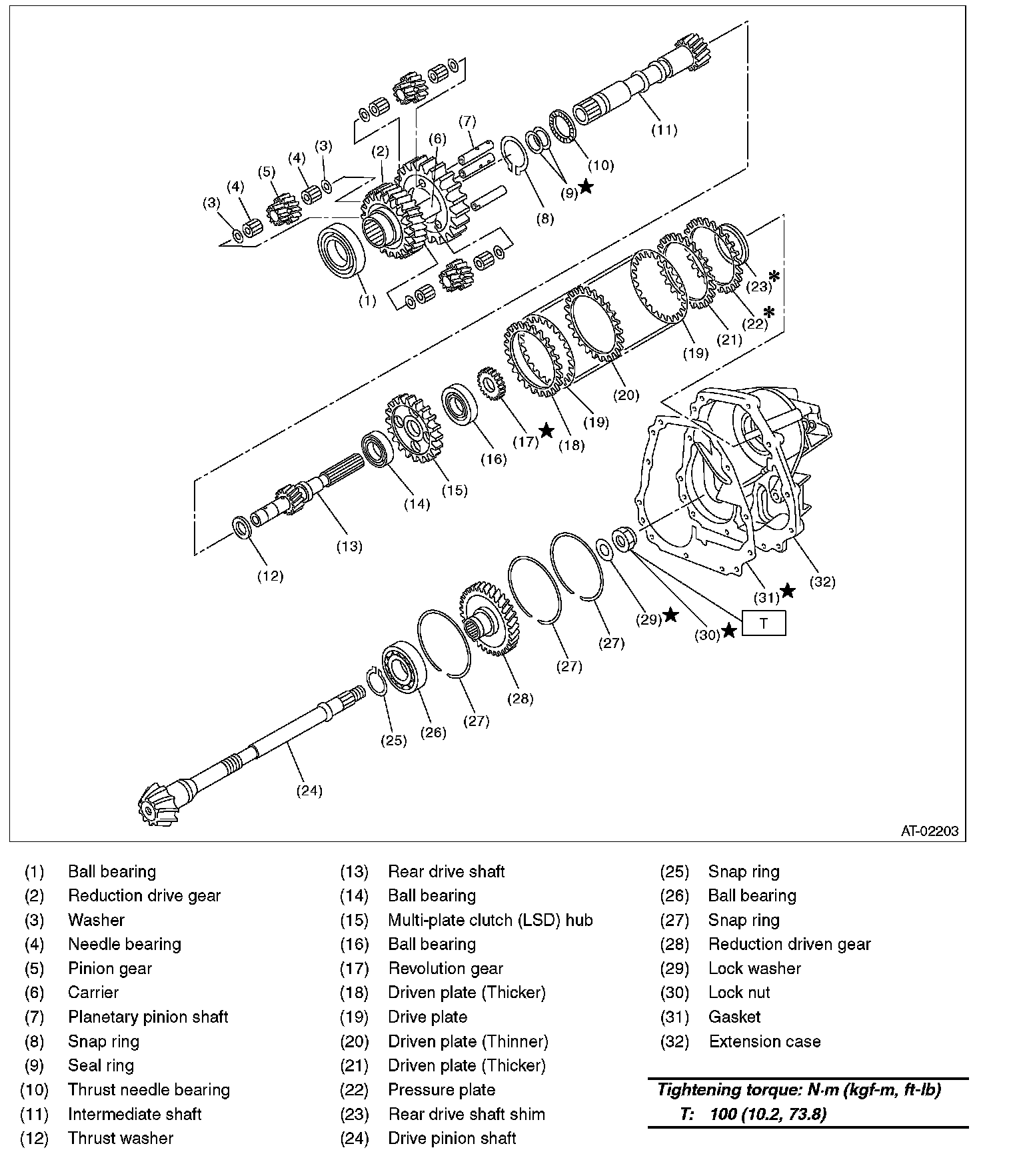

MPT model
^

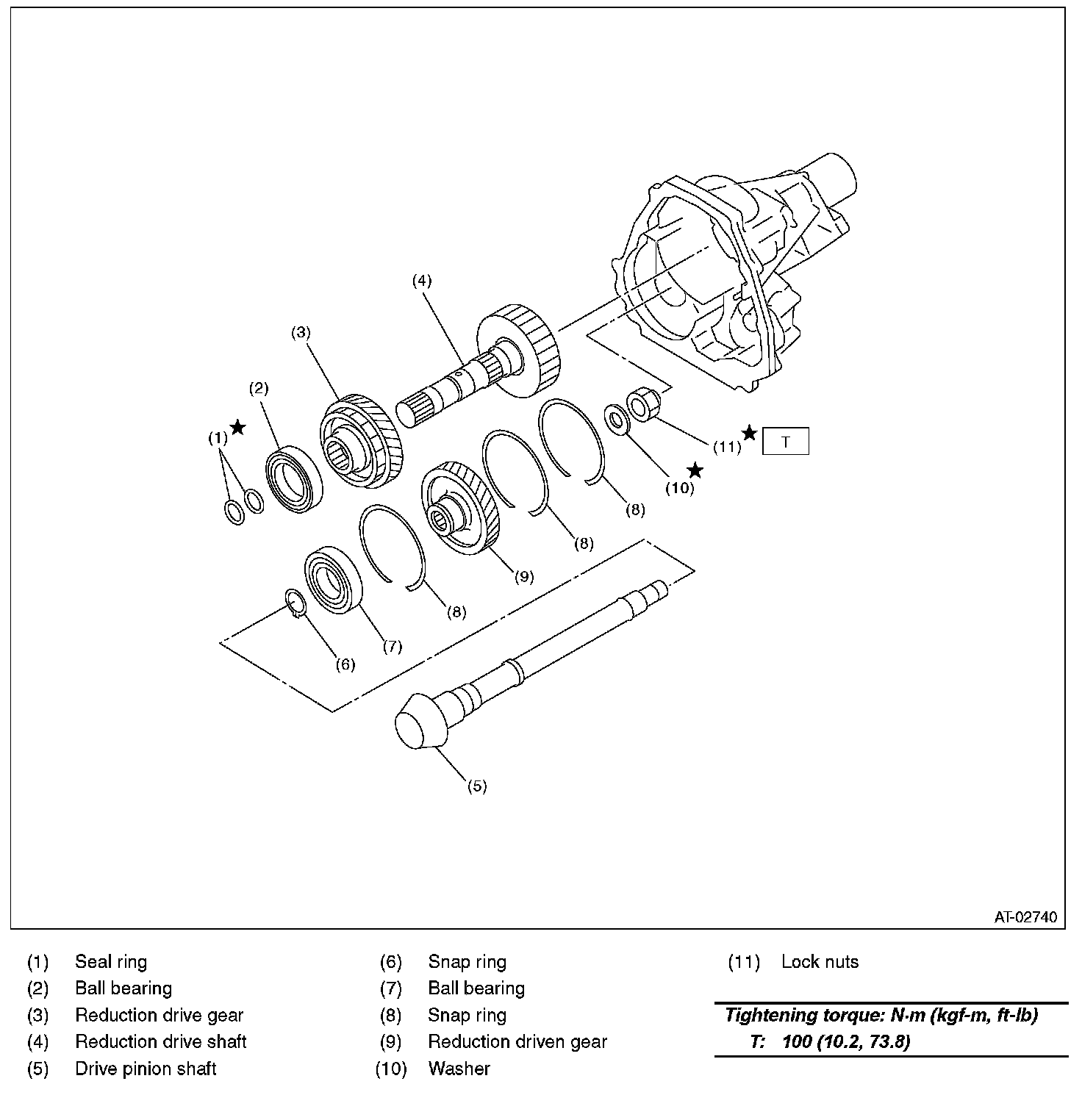

VTD model
