Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Subaru
>>
2005
>>
Baja F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
>>
System Diagram
System Diagram
CLUTCH ASSEMBLY
^

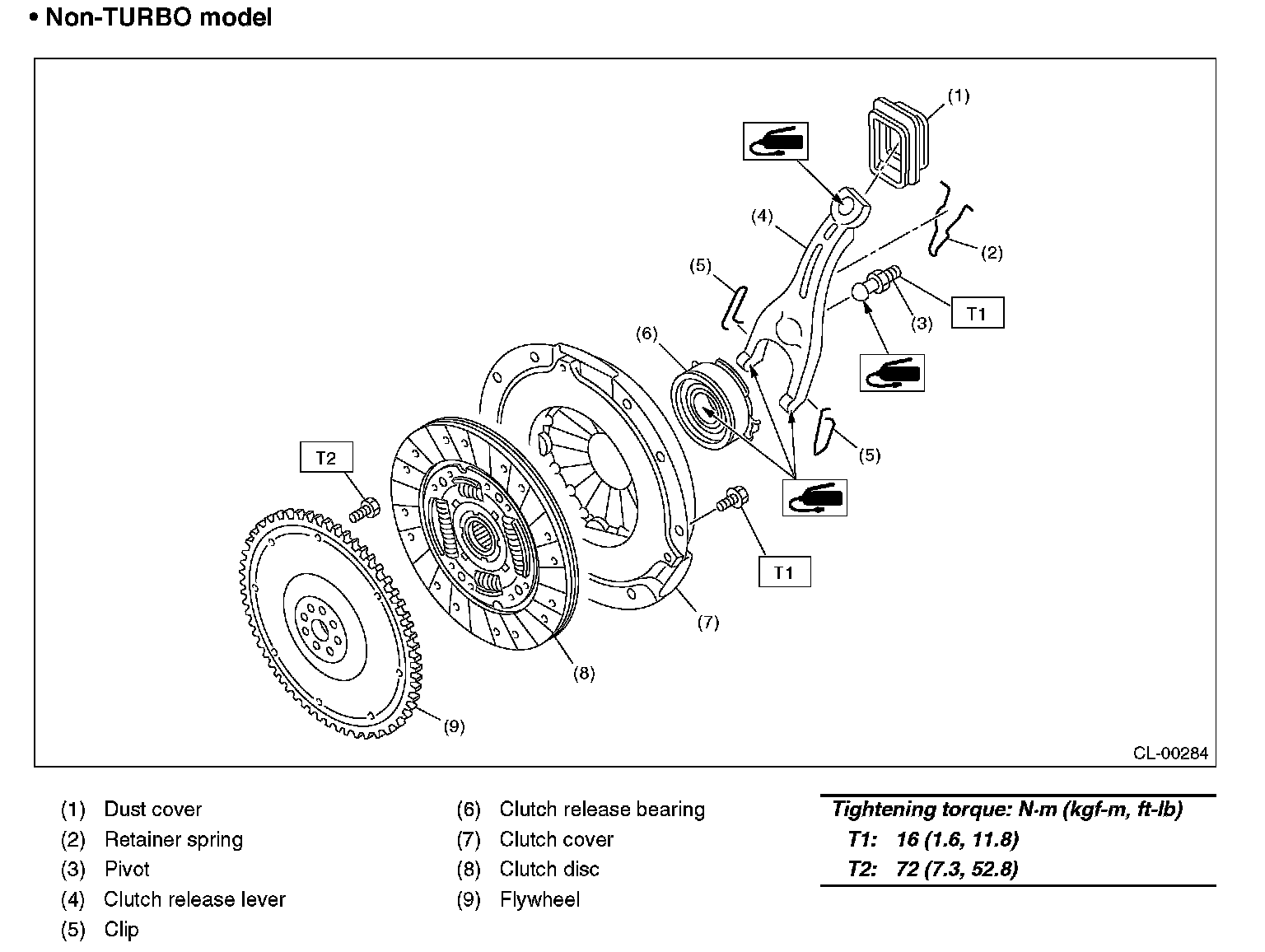

Non-TURBO model
^

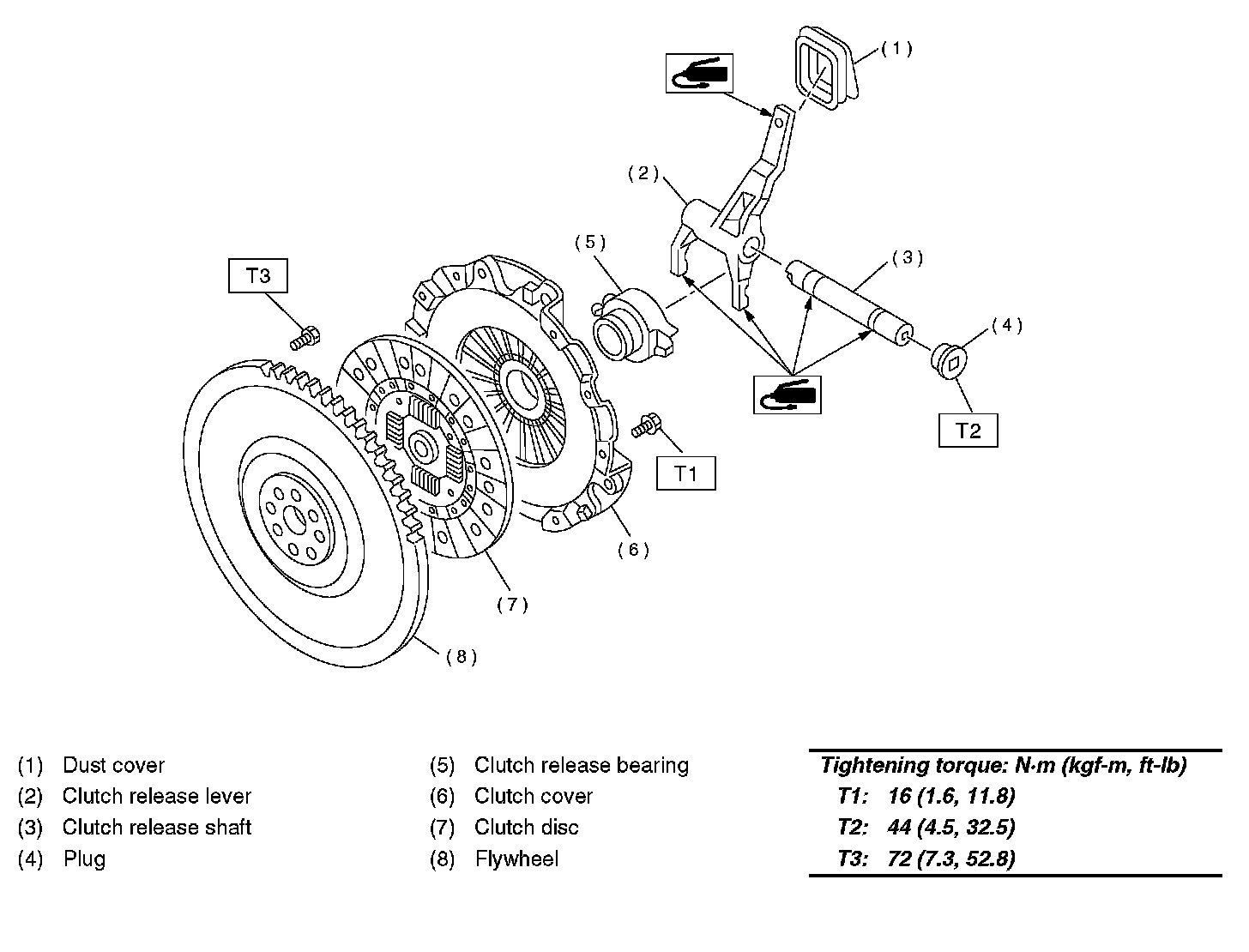

TURBO model
