Power Steering Fluid Reservoir: Service and Repair
Reservoir TankREMOVAL
2.5L MODEL
1. Drain fluid from the reservoir tank.

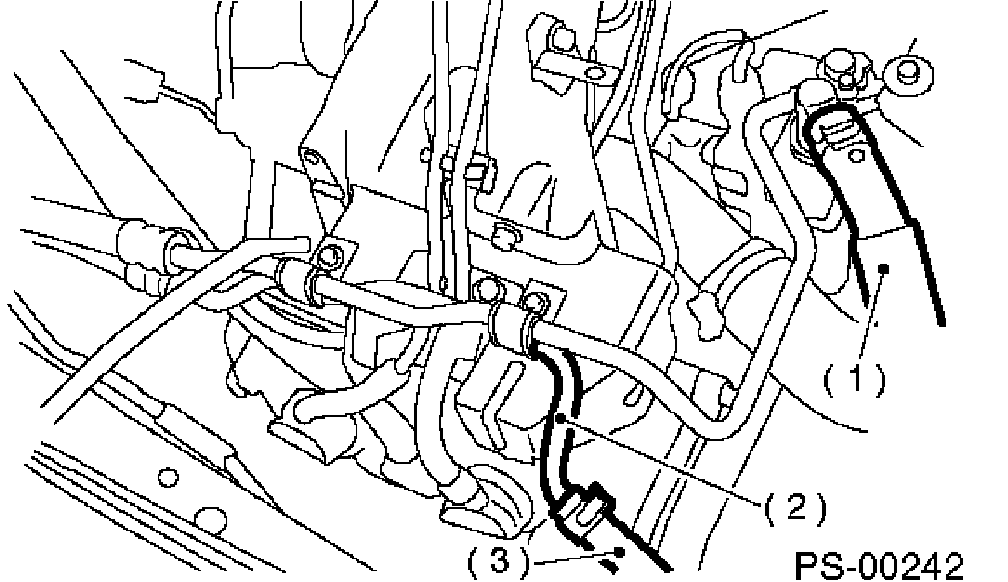

2. Disconnect pipe D from return hose and suction hose from oil pump.
CAUTION: Do not allow fluid from the hose end to come into contact with pulley belt.
To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.
Non-TURBO model:
3. Remove reservoir tank from bracket by pulling it upwards.
INSTALLATION
2.5L MODEL
1. Install reservoir tank to bracket.

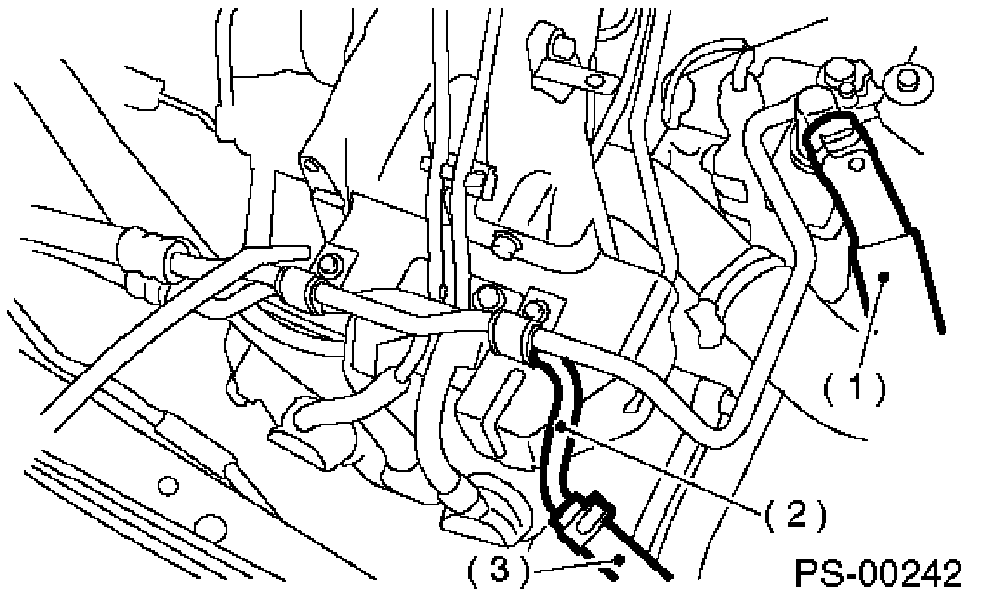

2. Connect pipes D to return hose and suction hose to oil pump.
Non-TURBO model:
3. Feed the specified power steering fluid.
INSPECTION
Check reservoir tank for cracks, breakage, or damage. If any cracks, breakage, or damage is found, replace reservoir tank.
