2.5L SOHC U5/Low Emission

DTC P2096 - POST CATALYST FUEL TRIM SYSTEM TOO LEAN BANK 1

DTC DETECTING CONDITION
Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

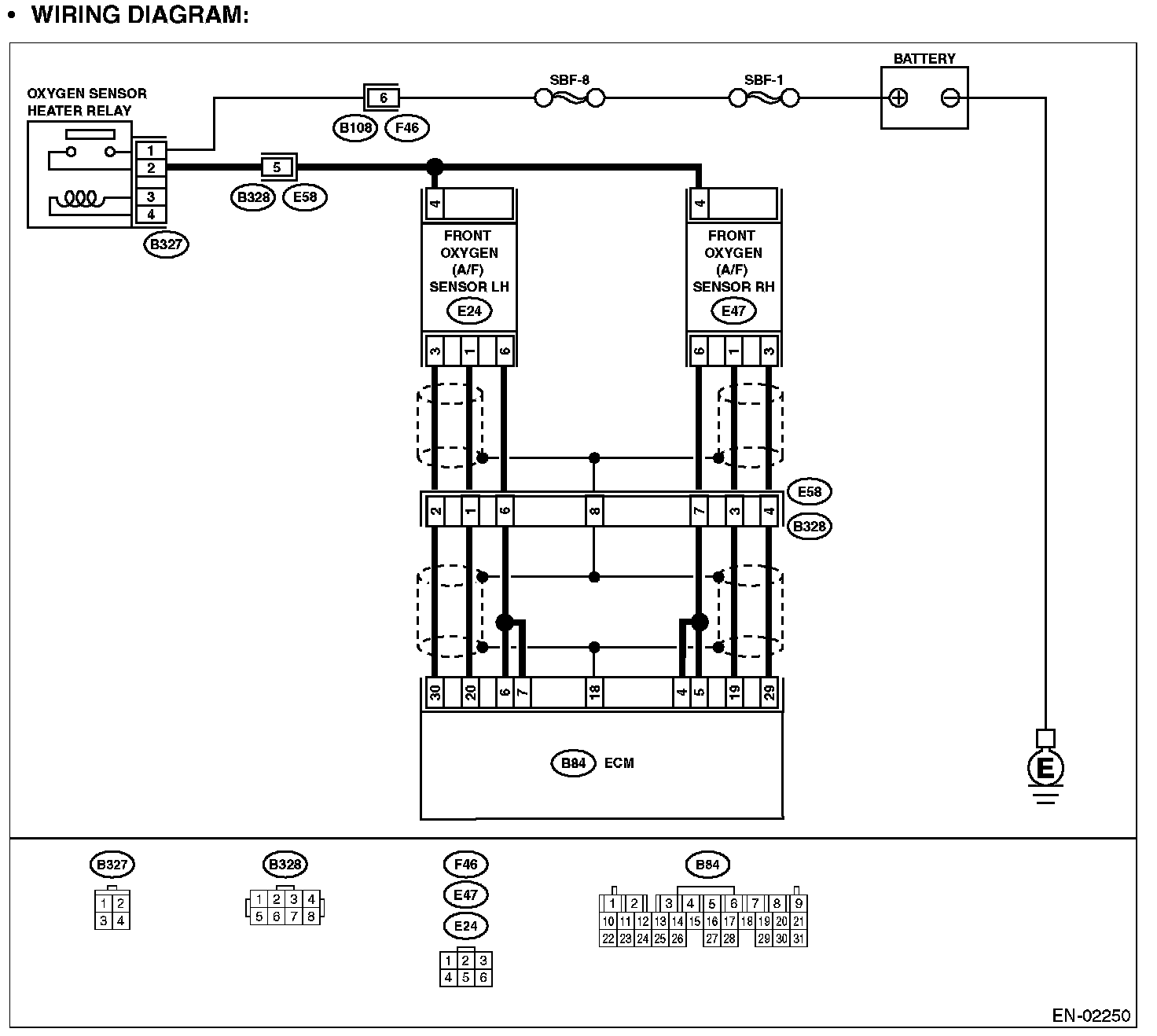

Wiring Diagram:

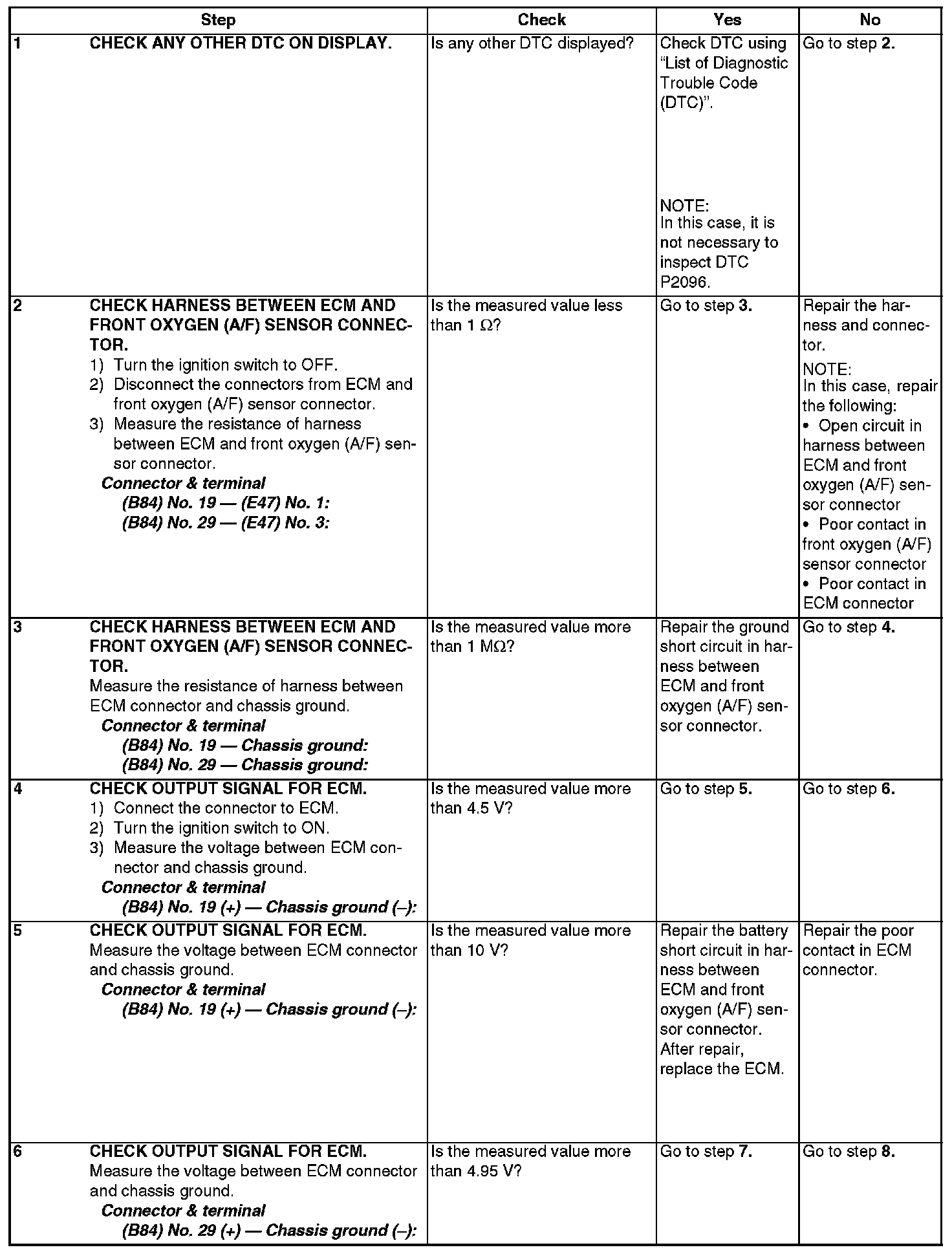

Step 1 - 6:

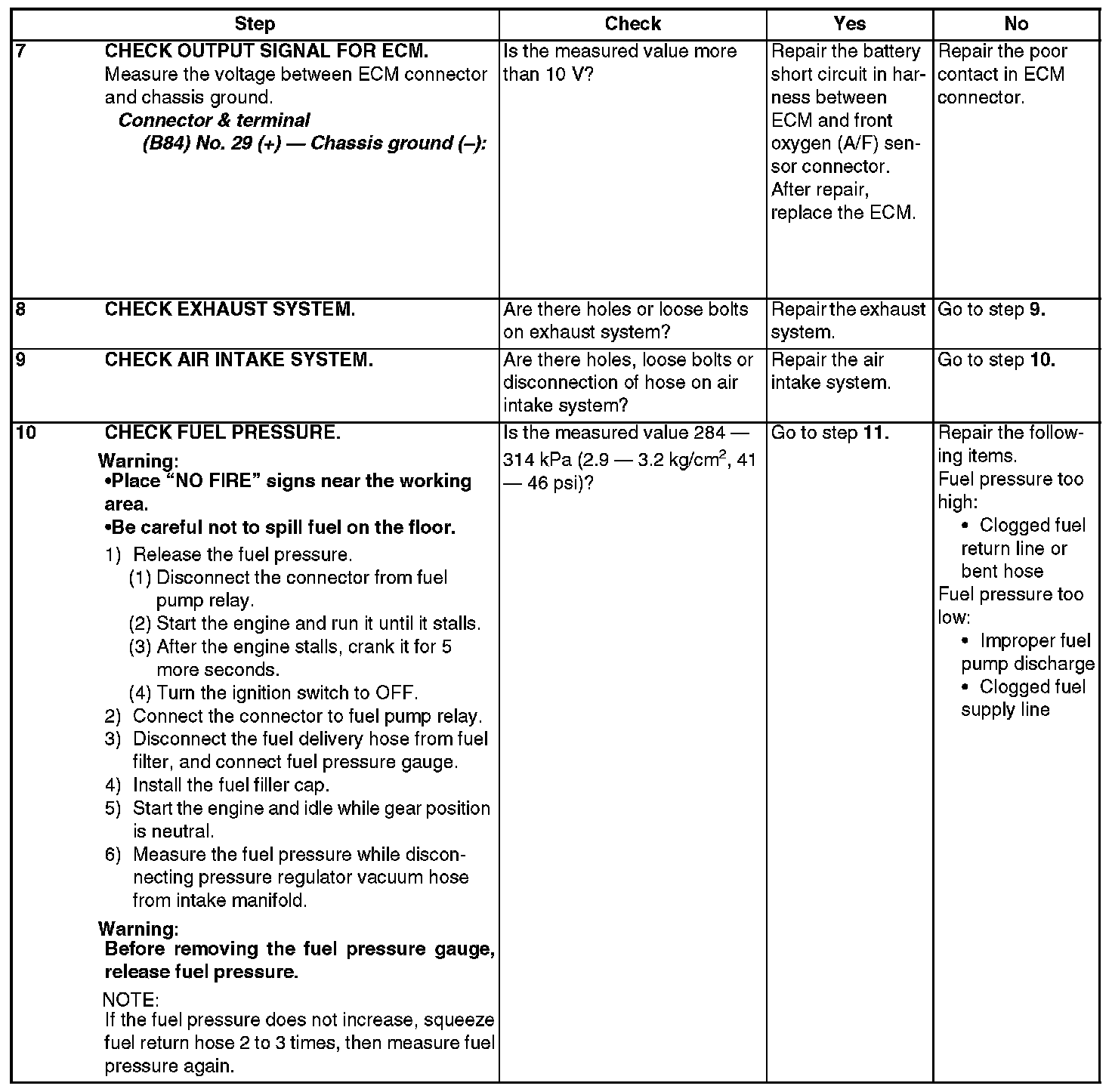

Step 7 - 10:

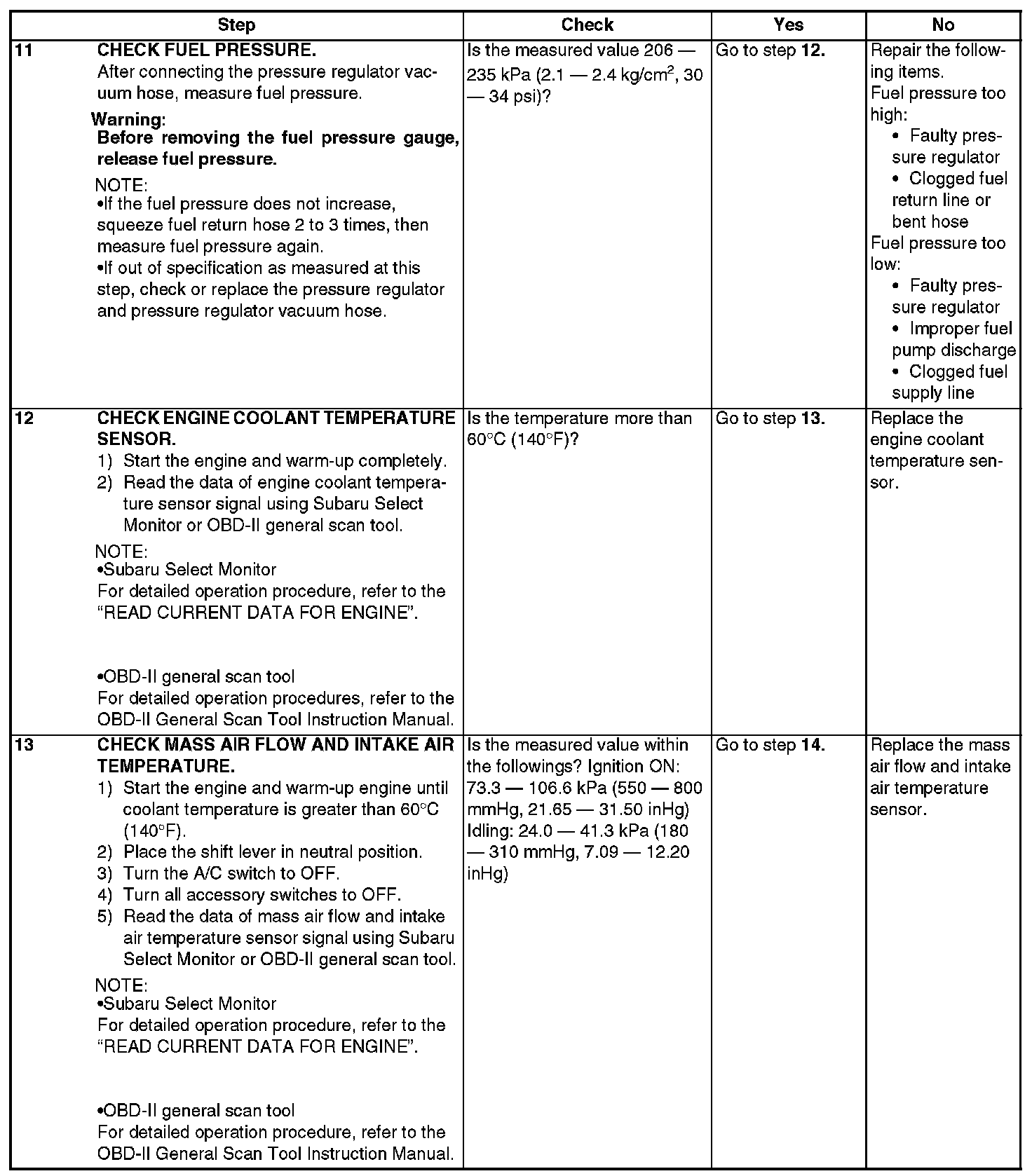

Step 11 - 13:

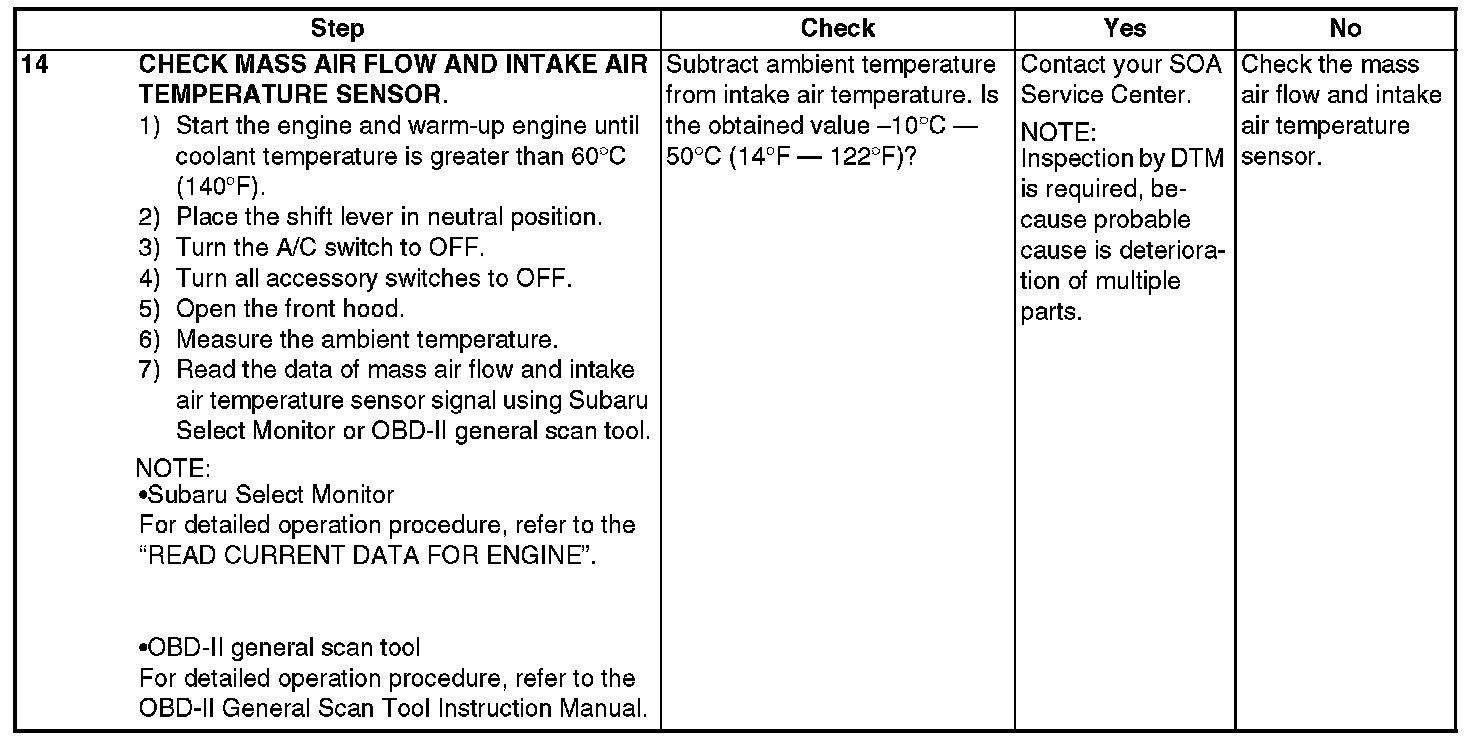

Step 14:
