Fuel Tank One Way Valve: Description and Operation

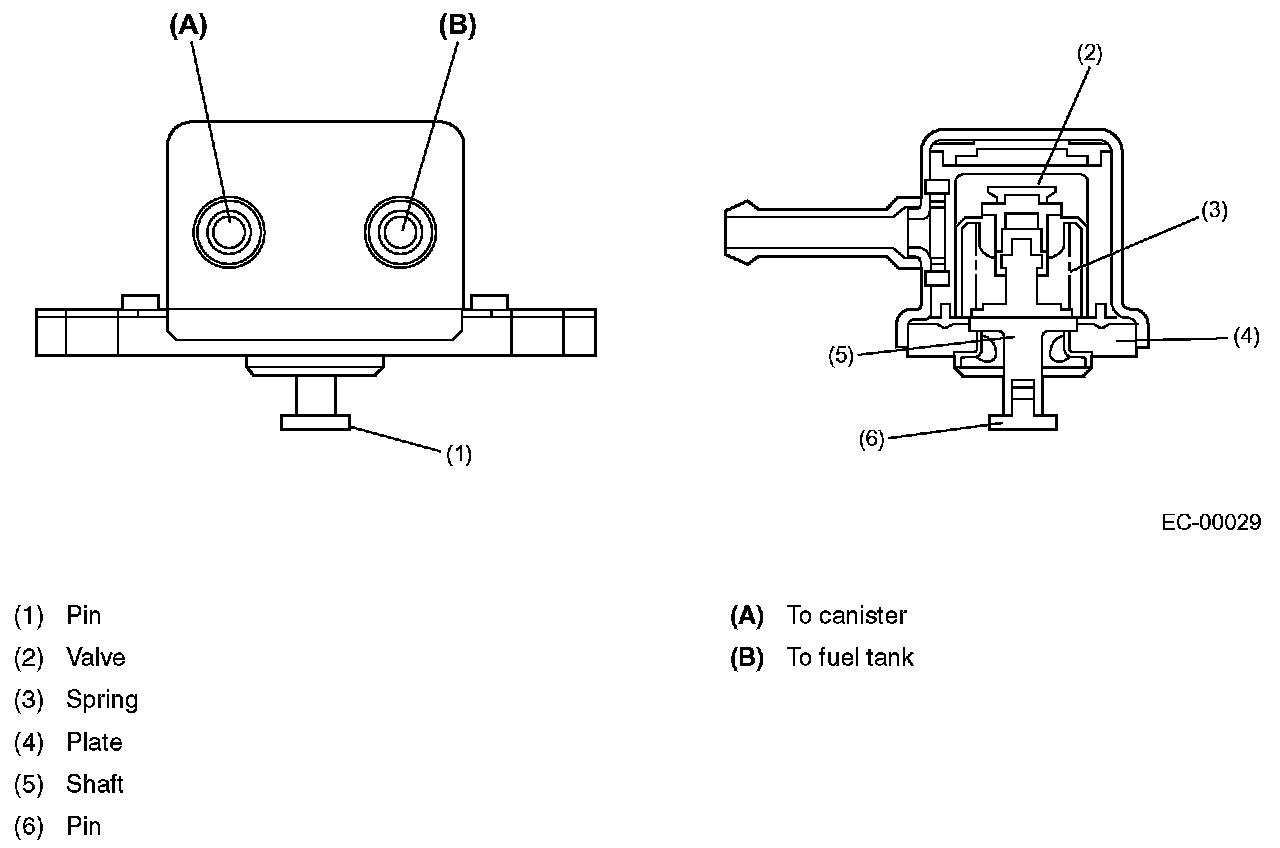

SHUT-OFF VALVE




The shut-off valve is located at the top of the fuel filler pipe. When a filler gun is inserted into the filler pipe, the shut-off valve closes the evaporation line.
