Front Support Arm
Front Support ArmA: REMOVAL
1) Set the vehicle on a lift.
2) Lift-up the vehicle.
3) Remove the under cover.

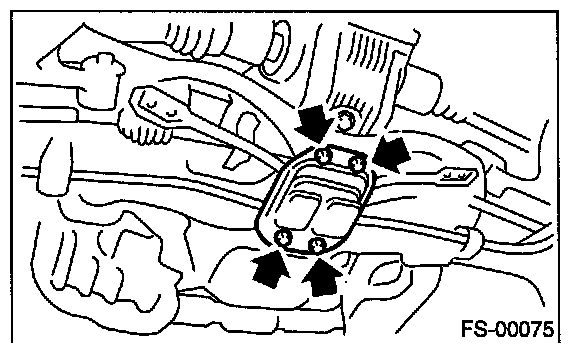

4) Remove the four bolts and jack-up plate.
5) Remove the two nuts at both ends of arm respectively.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Front support arm to croasmember:
30 N.m (3.1 kgf-m, 22 ft-lb)
Jack-up plate to crossmember:
70 N.m (7.1 kgt-m, 52 ft-lb)
INSPECTION
Check the front support arm for wear, damage and cracks, and correct or replace if defective.
