Airbag System

PRETENSIONER

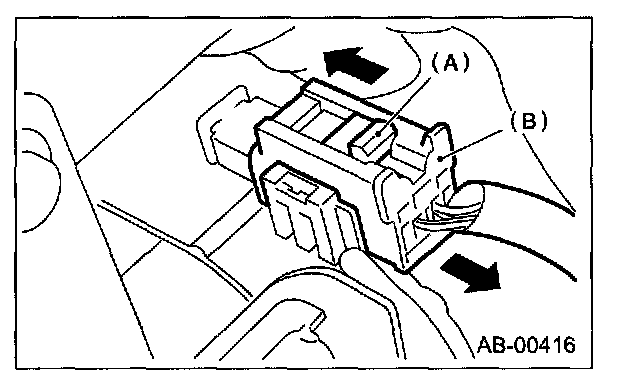

1. How to disconnect:
1. Move the slide lock (A) in the direction of the arrow.
2. Pull the connector (B) in the direction of the arrow with slide lock (A) moved.

CAUTION: When pulling, be sure to hold onto the connector and not the wire.




2. How to connect:
Holding the connector (A), and push it in carefully until a connecting sound is heard.

CAUTION:
- Be sure to insert the connector in until it locks.
- Then pull on it gently to make sure that it is locked.
