Accelerator Pedal: Adjustments
Accelerator PedalADJUSTMENT
1. Check the pedal stroke and free play by operating accelerator pedal by hand.
2. If it is not within the specified values, adjust it by turning the accelerator cable locknut.

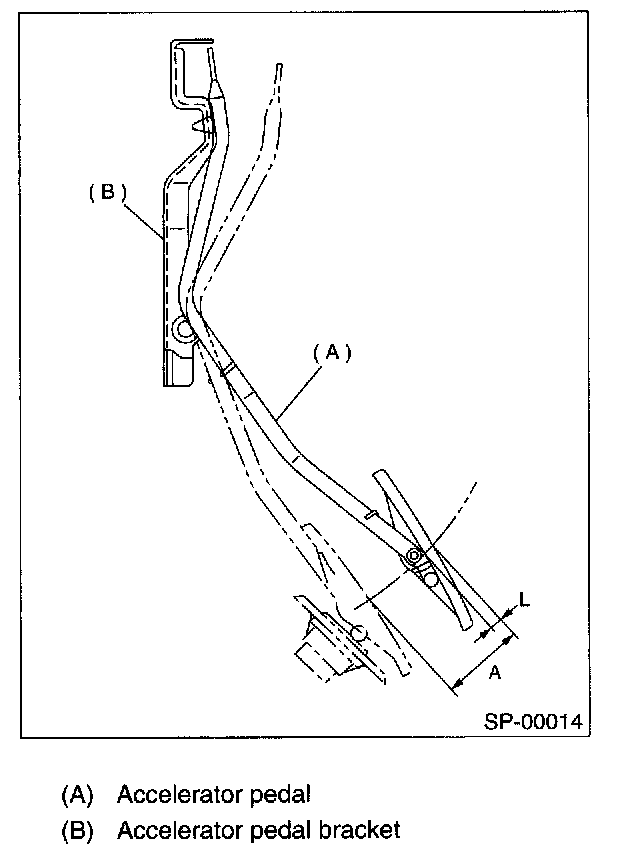

Free play at pedal pad: L
0 - 4 mm (0 - 0.16 in)
Stroke at pedal pad: A
52 - 57 mm (2.05 - 2.24 in)
Accelerator cable lock nut tightening torque:
12 N.m (1.2 kgf.m, 9 ft.lb)
