Evaporative Check Valve: Service and Repair

Vent Valve

REMOVAL

1. Remove the fuel tank.




2. Remove the protector cover.

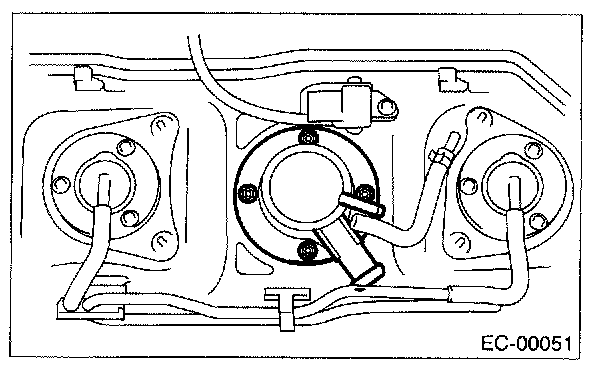

3. Remove the clips, and disconnect the hoses from vent valve.




4. Remove the nuts, and then remove the vent valve.

INSTALLATION

Install in the reverse order of removal.

NOTE: Replace the rubber seat with a new one.




Tightening torque:
T: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)




Tightening torque:
T1: 7.4 N.m (0.75 kgf-m, 5.4 ft-lb)
T2: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)
