Removal and Replacement

Purge Control Solenoid Valve

REMOVAL

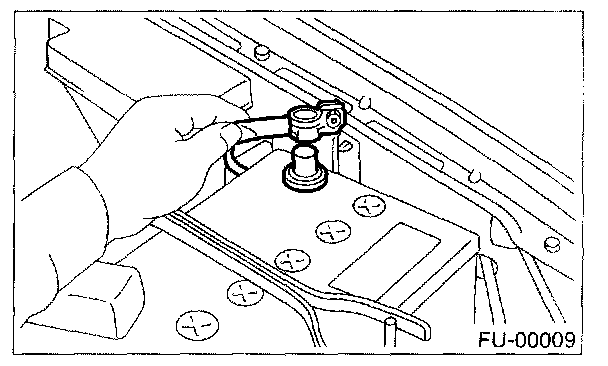

1. Disconnect the ground cable from battery.

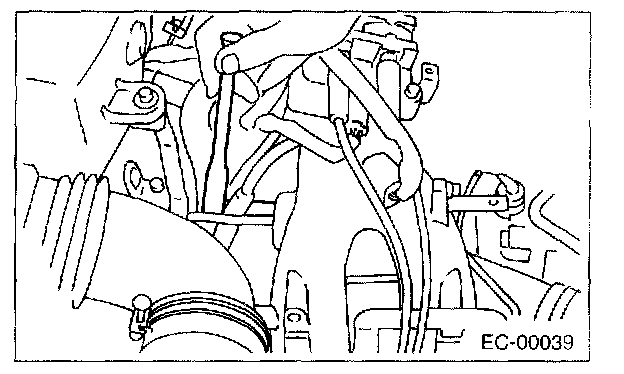

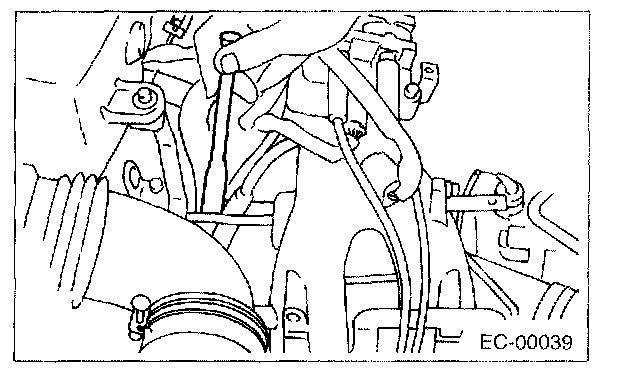

2. Remove the bolt which installs purge control solenoid valve onto intake manifold.
3. Take out purge control solenoid valve through the bottom of the intake manifold.

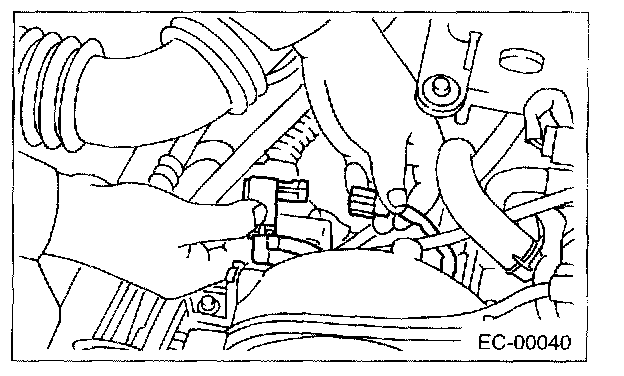

4. Disconnect the connector and hoses from purge control solenoid valve.

INSTALLATION




Install in the reverse order of removal.

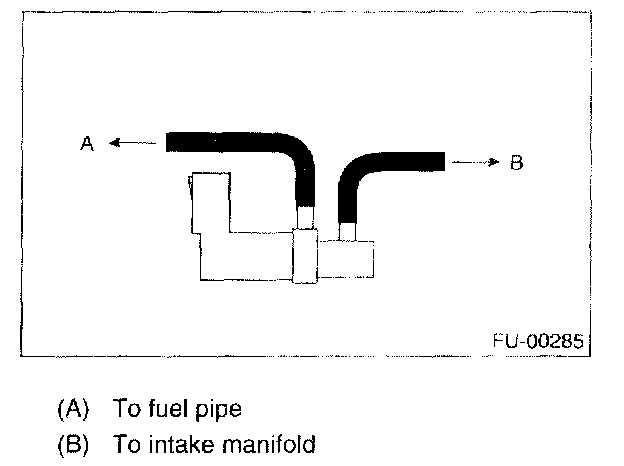

NOTE: Connect the evaporation hose as shown in figure.
