Home
>>
Subaru
>>
2004
>>
Impreza F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
B4-B306 & AB15
B4-B306 & AB15

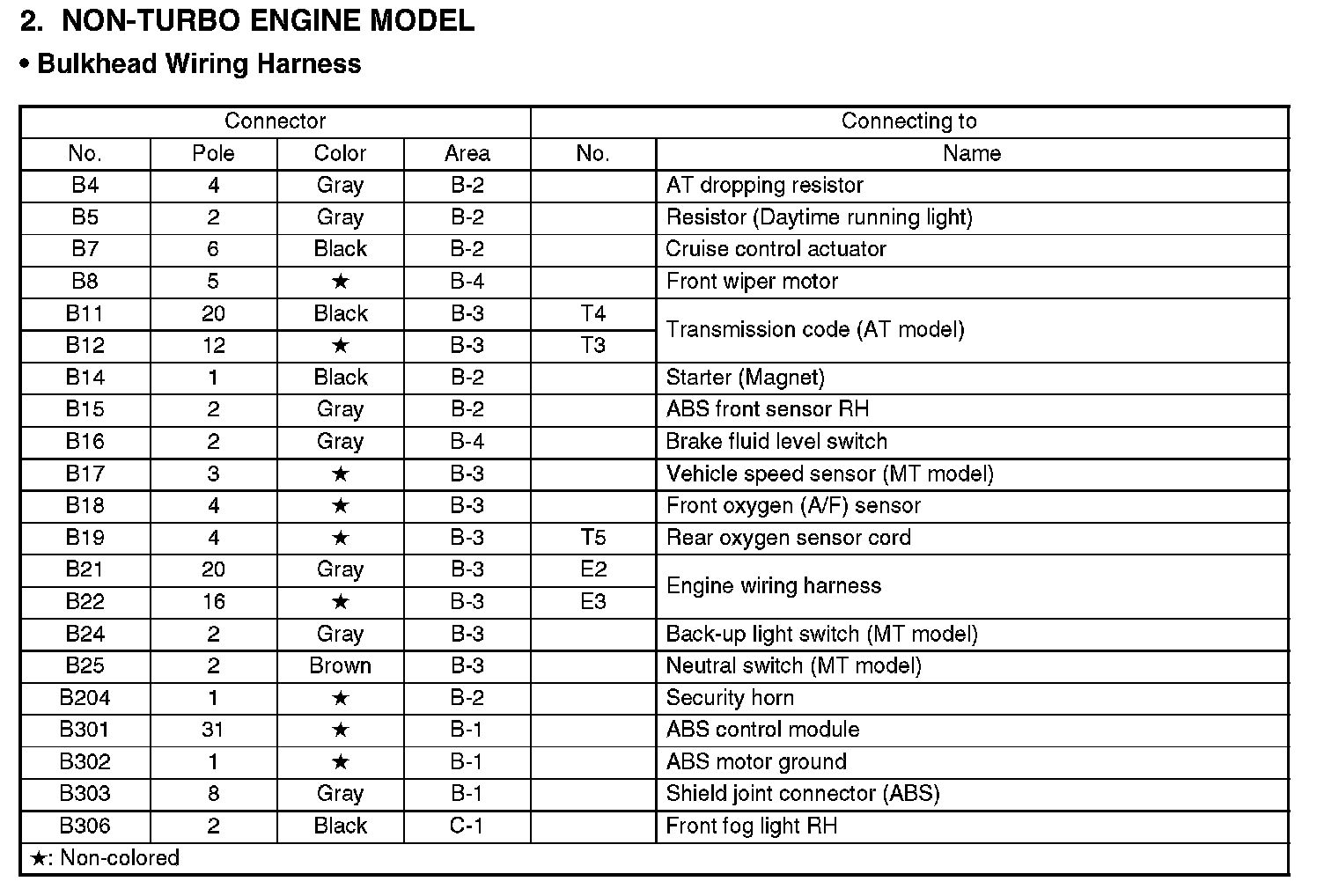

BULKHEAD WIRING HARNESS (IN ENGINE ROOM)
B4-B306:

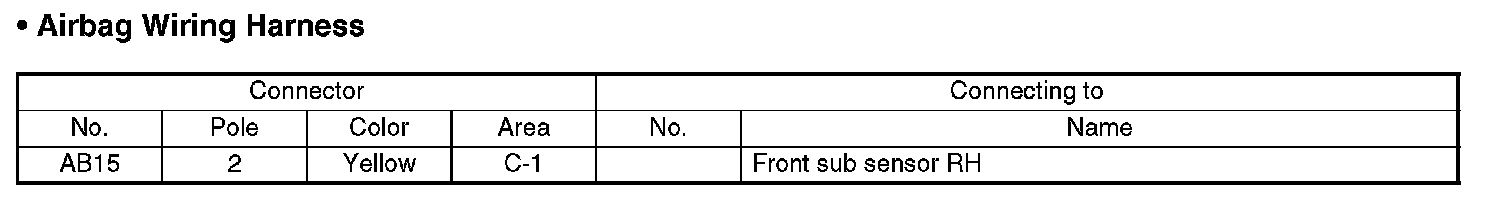

AB15:

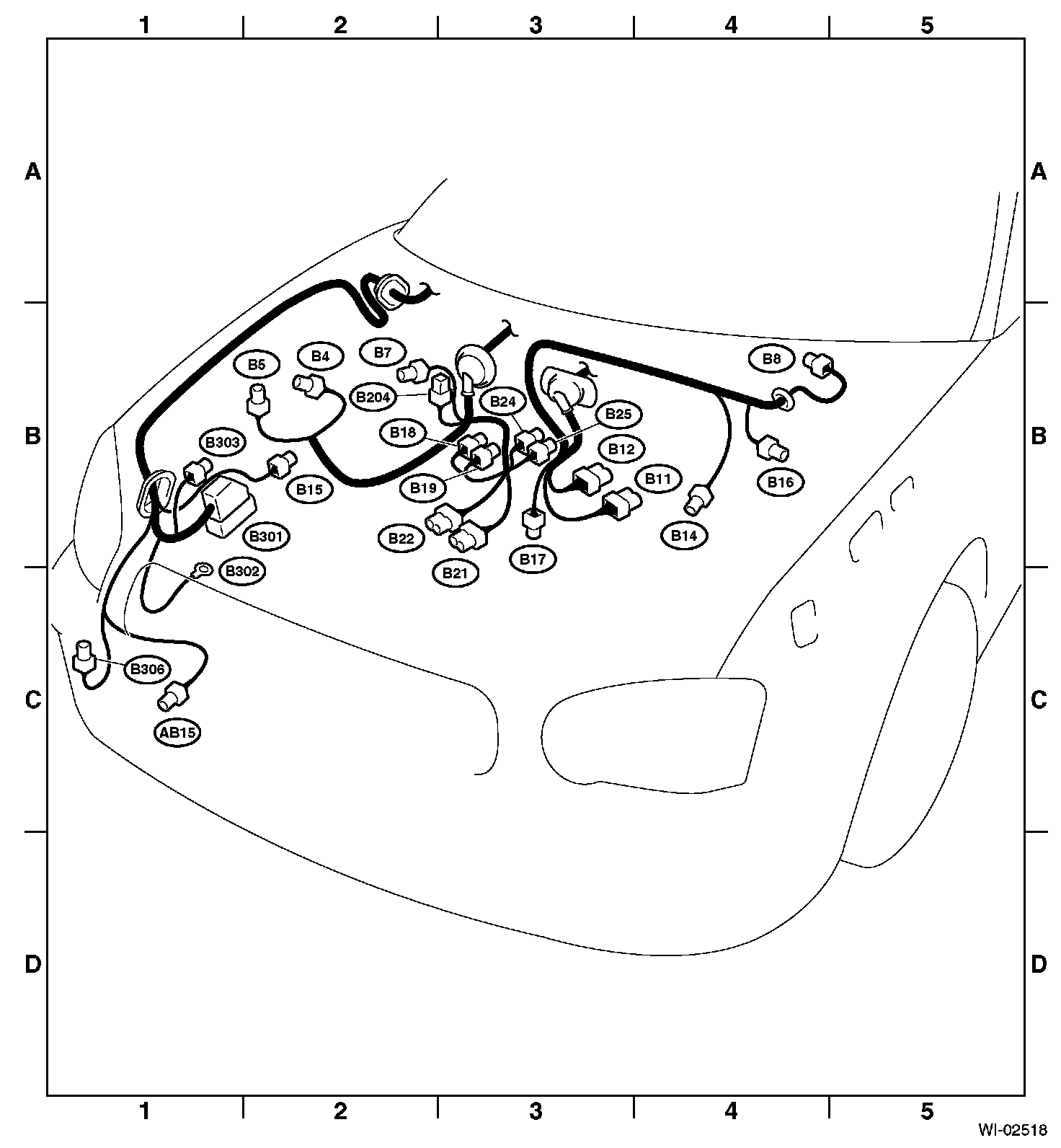

Area View:
