Glove Box Lamp: Service and Repair

Glove Box Light

REMOVAL
1. Disconnect the ground terminal from battery.
2. Remove the glove box.
3. Disconnect the harness connector.

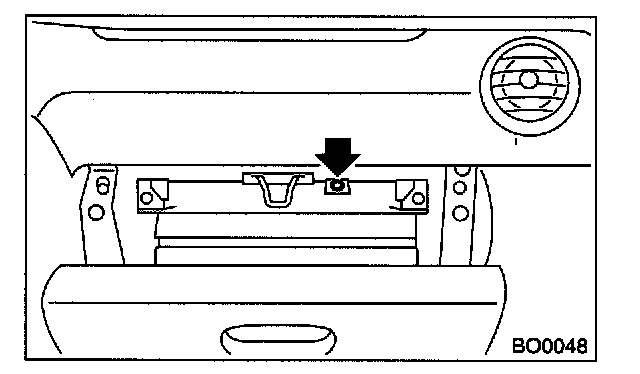

4. Remove the glove box light.

INSTALLATION
Install in the reverse order of removal.
