Temperature Gauge: Testing and Inspection

INSPECTION

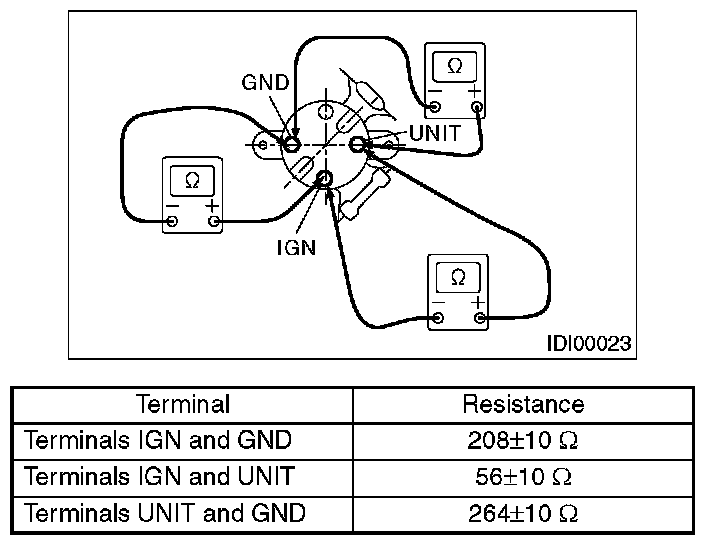

Measure the water temperature gauge resistance.

If NG, replace the water temperature gauge and fuel gauge assembly.
If OK, replace the combination meter printed circuit.
