Radiator Cooling Fan
>>
Schematic
>>
Radiator Main Fan System
Radiator Main Fan System
Radiator Main Fan System
SCHEMATIC
NON-TURBO MODEL

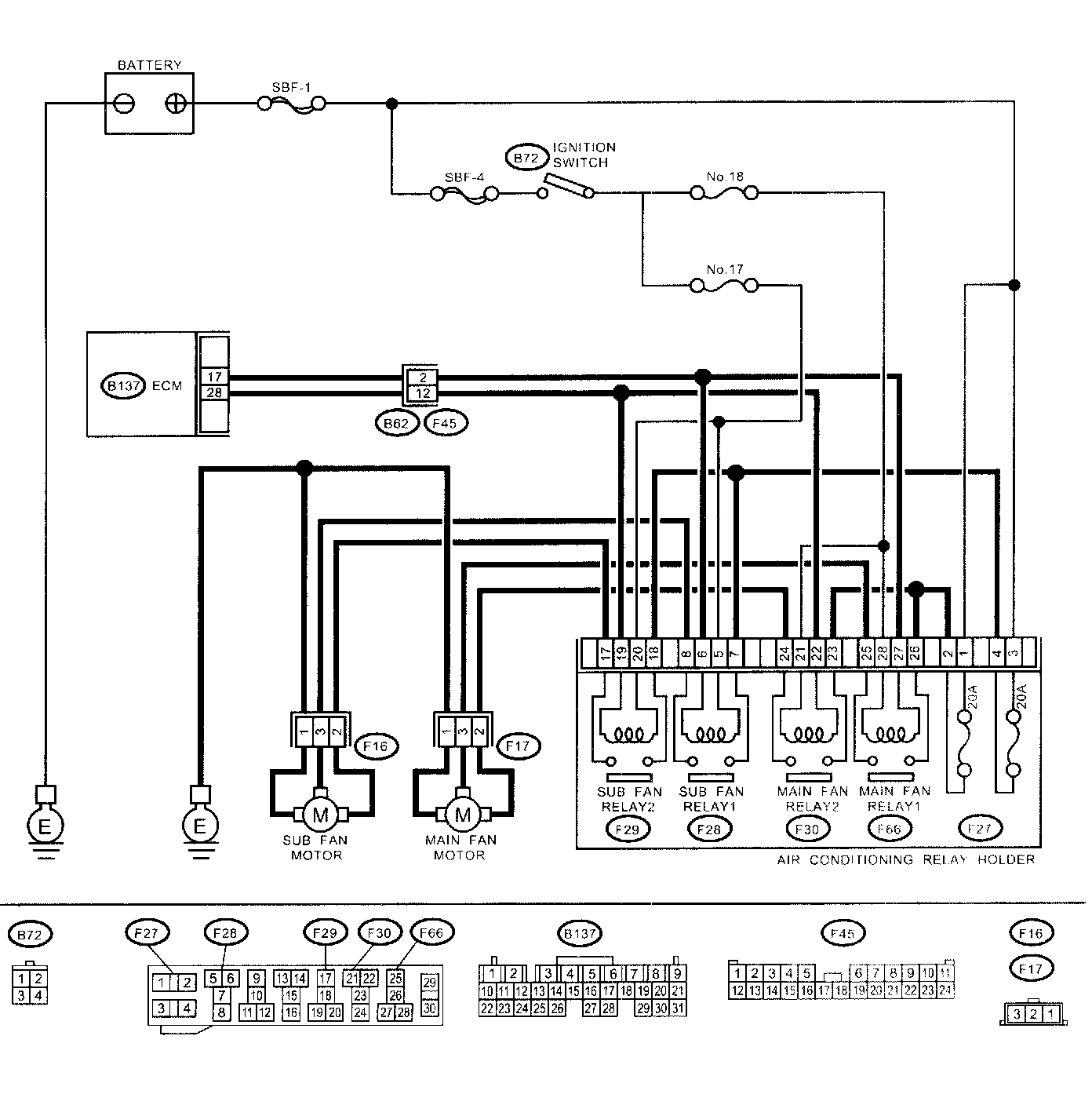

TURBO MODEL
