Home
>>
Subaru
>>
2004
>>
Impreza F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Oil Pressure Sender
Oil Pressure Sender
Oil Pressure System

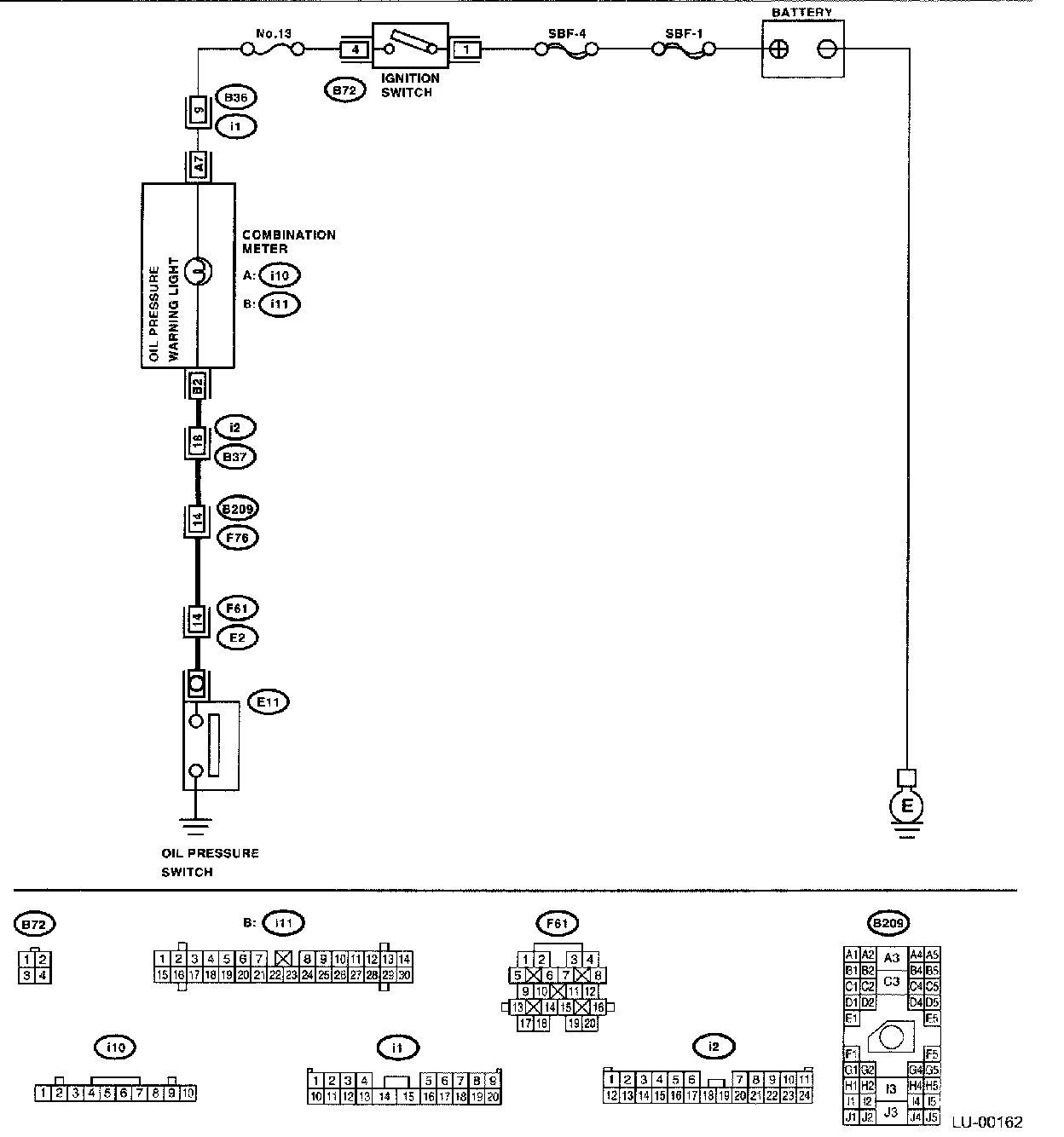

SCHEMATIC
NON-TURBO MODEL
TURBO MODEL
