Rear

Rear Disc Rotor

REMOVAL
1) Lift-up the vehicle and remove the wheels.

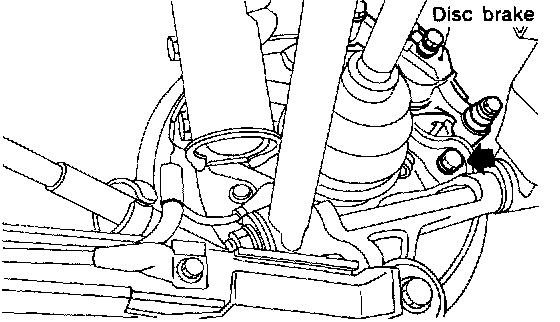

2) Remove the two mounting bolts and remove the disc brake assembly.
3) Suspend the disc brake assembly so that the hose is not stretched.
4) Pull down and release the parking brake.
5) Remove the disc rotor.

NOTE: If the disc rotor is difficult to remove, try the following two methods in order.





1) Turn the adjusting screw using a slot-type screwdriver until the brake shoe gets away enough from the disc rotor.





2) If the disc rotor seizes up within hub, drive the disc rotor out by installing an 8-mm bolt in holes B on the rotor.






INSTALLATION
1) Install in the reverse order of removal.
2) Adjust the parking brake.
