DTC P1420 - PRESSURE CONTROL SOLENOID VALVE CIRCUIT HIGH
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
CAUTION:
After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

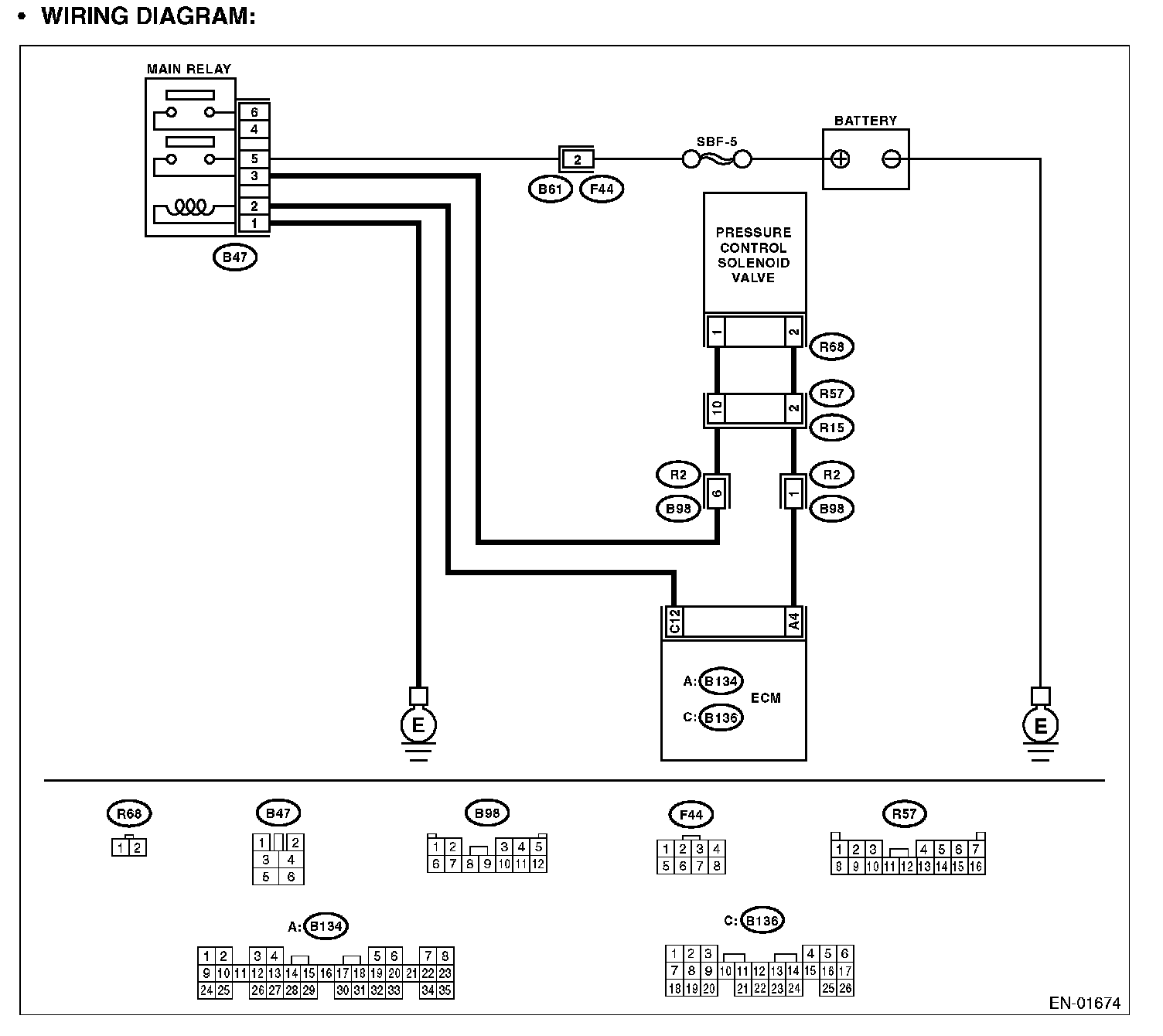

Wiring Diagram:
Step 1 - 6:
