MT Model

DTC P0852 - NEUTRAL SWITCH INPUT CIRCUIT HIGH (MT MODEL)

DTC DETECTING CONDITION:
Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

Wiring Diagram:

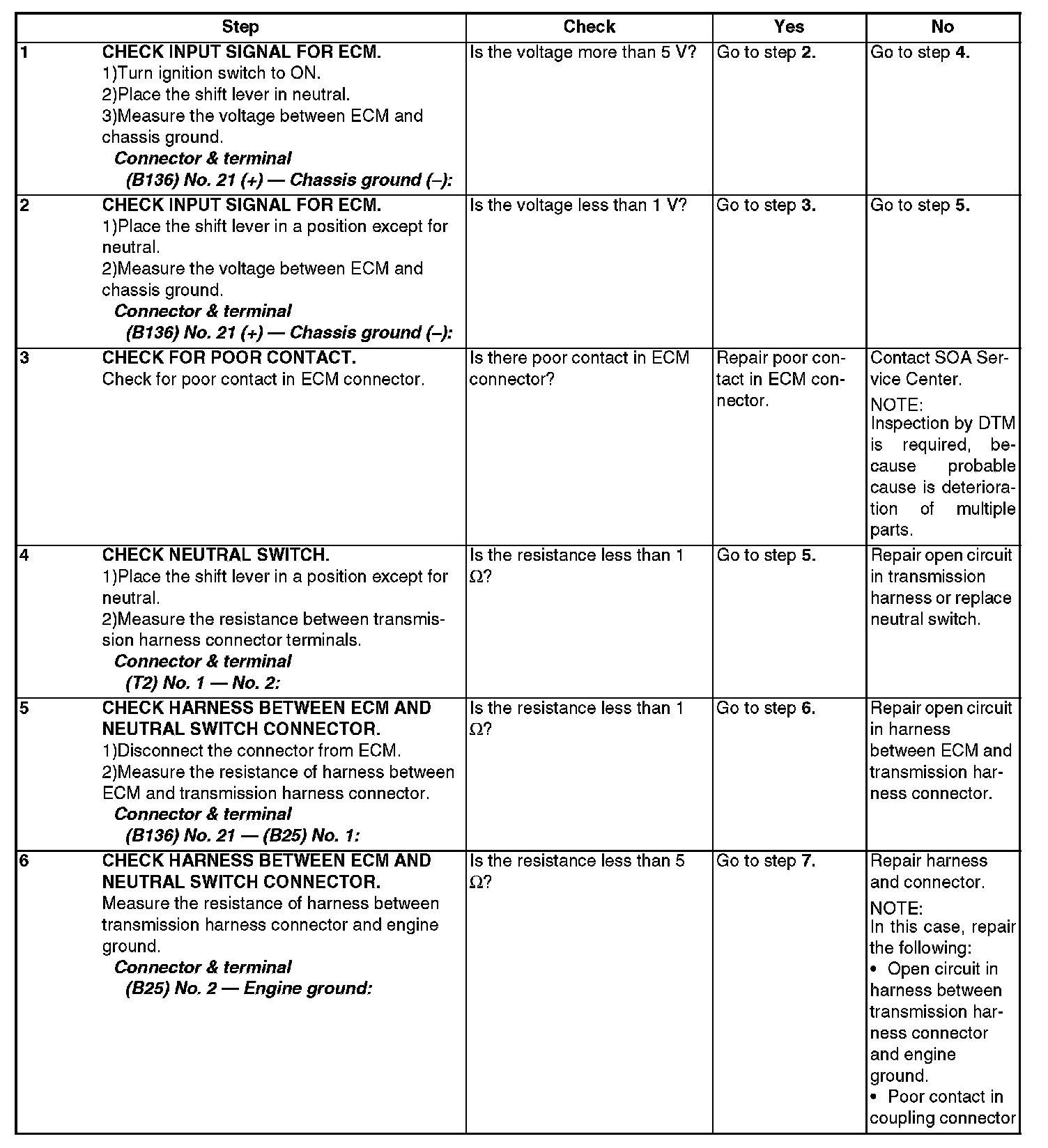

Step 1 - 6:

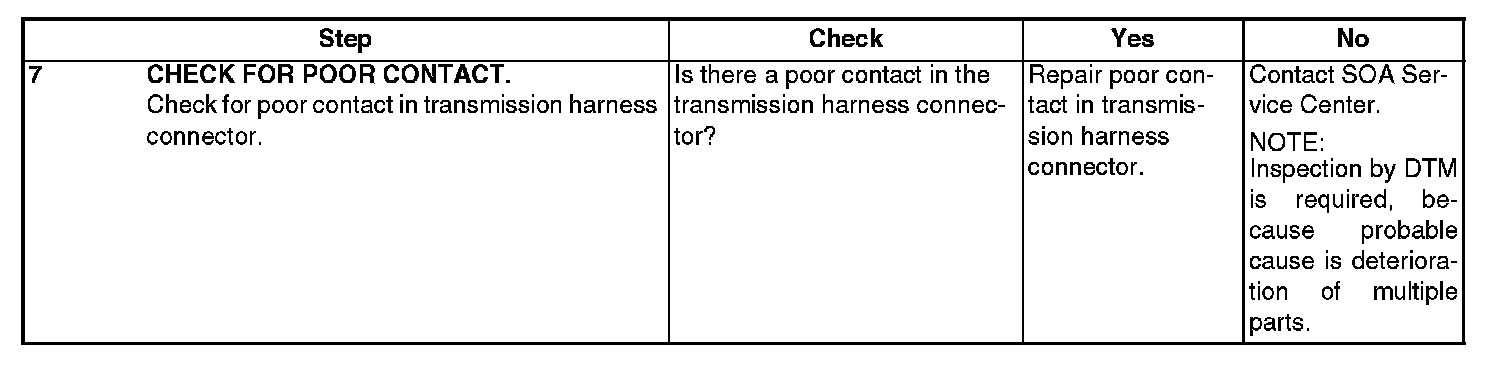

Step 7:
