P0183

DTC P0183 - FUEL TEMPERATURE SENSOR A CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

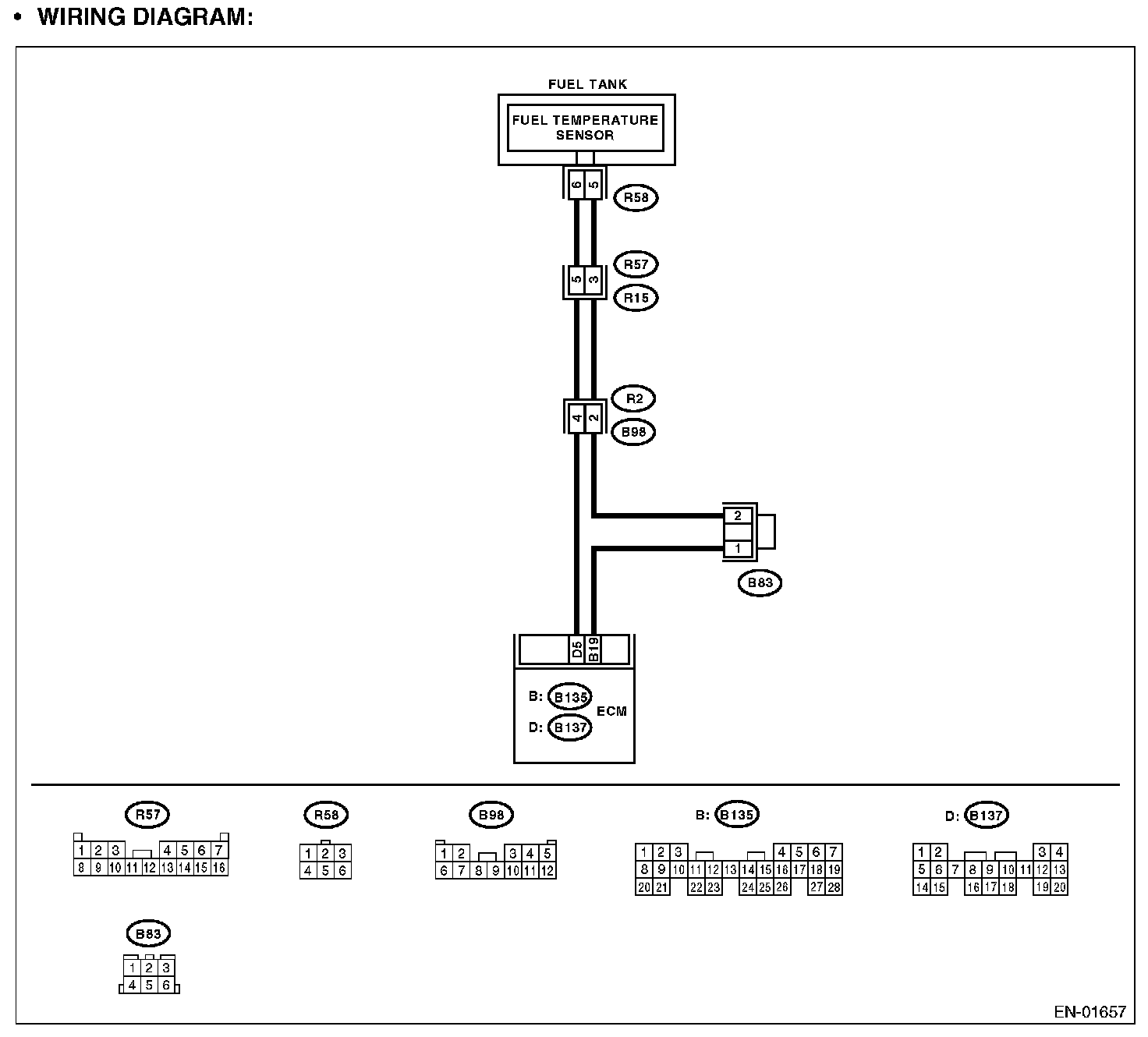

Wiring Diagram:

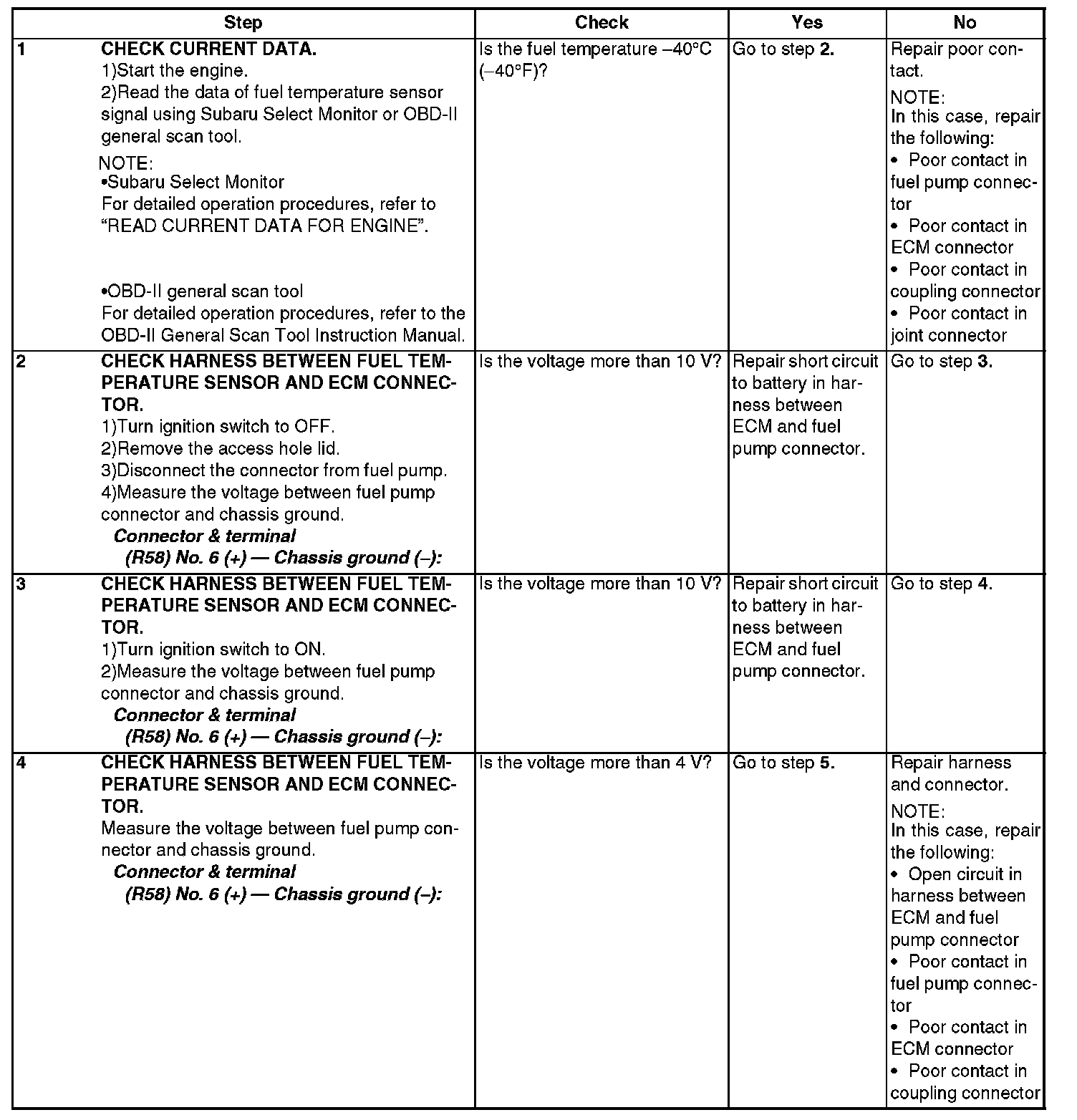

Step 1 - 4:

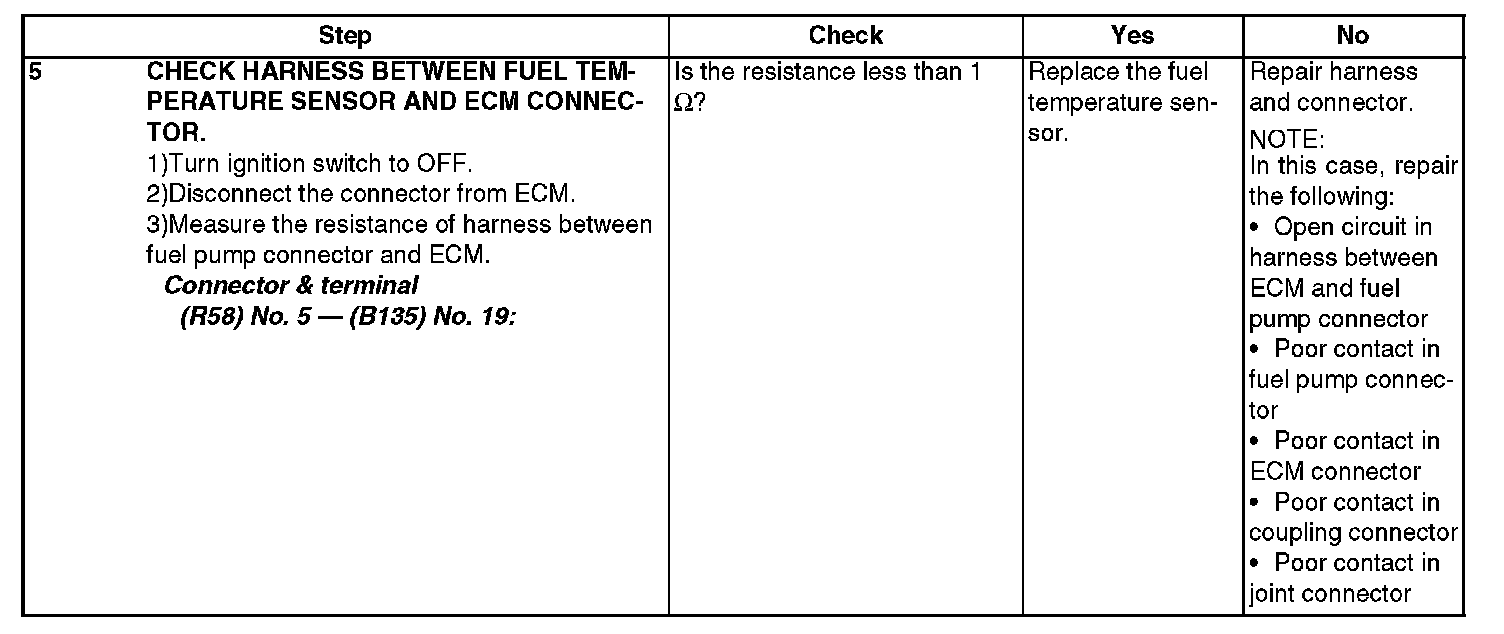

Step 5:
